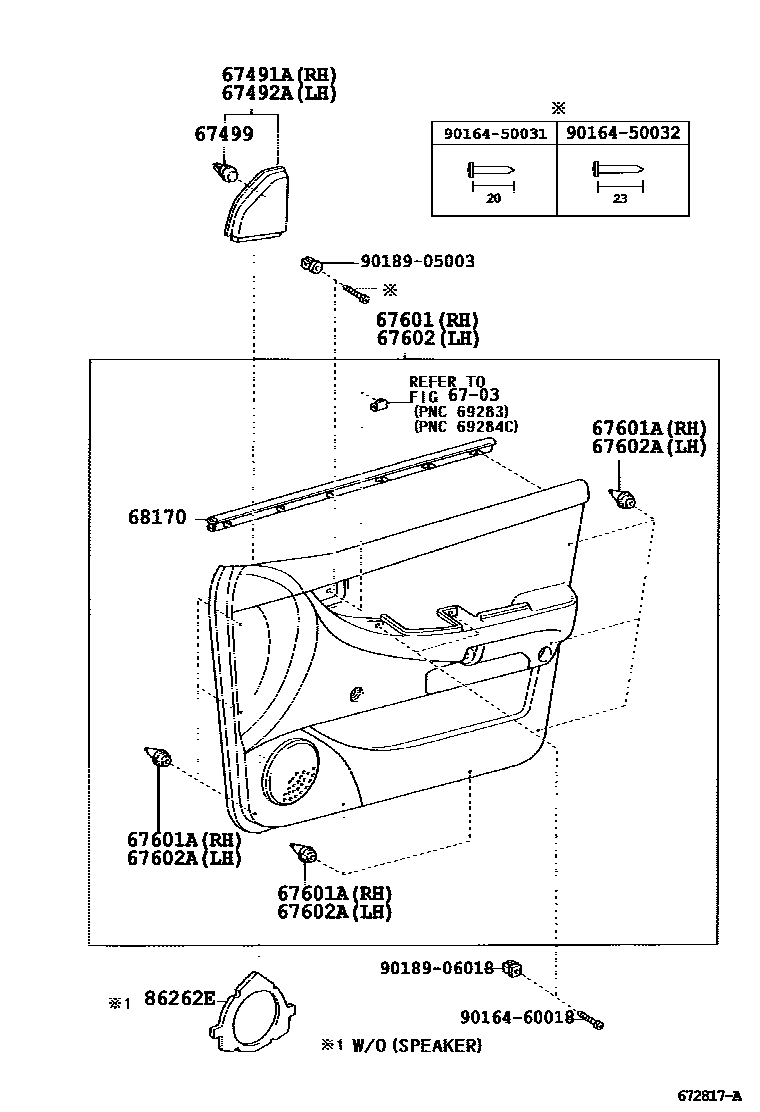

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

6703

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12460iZZE122..ARL200303-200408

main67491-12470iZZE120,121..GLE,RT,STD200208-200707

main67491-12480iZZE121,123..STD;ZZE122..MTM..SA200208-200408

W(TWEETER SPEAKER)

main67491-12480iZZE122,123;ZZE120,121..GLS,GSX,RS,RX200408-200707

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12460iZZE122..ARL200303-200408

main67492-12470iZZE120,121,122..SA200208-200707

main67492-12480iZZE122,123;ZZE120,121..GLS,GSX,RS,RX200408-200707

main67492-12480iZZE121,123..STD;ZZE122..MTM..SA200208-200408

W(TWEETER SPEAKER)

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-12060iZZE12#200208-200707

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-02B20-B0iZZE122..5D..ARL200408-200506

TRIM = TYPE F-*104,GRAY,TRIM1#

main67610-02B40-B0iZZE120..STD200408-200707

TRIM = TYPE D-*104,GRAY,TRIM1#

main67610-02B50-B0iZZE122..4D..STD200408-200506

TRIM = TYPE D-*104,GRAY,TRIM1#

main67610-02B50-B1iZZE122..5D..ARL200408-200506

TRIM = TYPE D-*104,GRAY,TRIM1#

main67610-02B60-B0iZZE120,121..RS200408-200707

TRIM = TYPE F-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67610-02B70-B0iZZE120..RT200408-200707

TRIM = TYPE F-*104,GRAY,TRIM1#

main67610-0Z010-B1iZZE120,121..4D..STD200208-200408

TRIM = TYPE B-*104,DK.GRAY,TRIM1#

main67610-0Z020-B0iZZE122..5D200303-200408

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67610-0Z070-B1iZZE120,121..4D;ZZE122..MTM..SA200208-200408

TRIM = TYPE C-*104,DK.GRAY,TRIM1#

main67610-0Z070-B6iZZE120,121..4D;ZZE122..MTM..SA200208-200408

TRIM = TYPE C-*104,DARK GRAY,TRIM10

main67610-0Z070-B7iZZE120,121..GLE200408-200707

TRIM = TYPE E-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67610-0Z090-B1iZZE122..ATM..SA;ZZE120,121..4D..STD200208-200408

TRIM = TYPE C & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-0Z090-B6iZZE122..ATM..SA;ZZE120,121..4D..STD200208-200408

TRIM = TYPE C & W(POWER WINDOW),DARK GRAY,TRIM10

main67610-0Z090-B7iZZE120,121,122..GLS200408-200707

TRIM = TYPE E-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67610-0Z110-A3iZZE121,122,123..MTM..SA200208-200408

TRIM = TYPE A-*104,IVORY,TRIM0#

main67610-0Z110-B3iZZE121,122,123..SA..(RX,STD)200408-200707

TRIM = TYPE C-*104,DK.GRAY,TRIM1#

main67610-0Z110-B3iZZE121,122,123..MTM..SA200208-200408

TRIM = TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-0Z110-B4iZZE121,122..GSX200408-200707

TRIM = TYPE C-*104,GRAY,TRIM1#

main67610-0Z120-A0iZZE122..5D200303-200408

TRIM = TYPE C & W(POWER WINDOW),IVORY,TRIM0#

main67610-0Z120-B0iZZE122..5D200303-200408

TRIM = TYPE C & W(POWER WINDOW),DK.GRAY,TRIM10

main67610-0Z120-B1iZZE122..5D200303-200408

TRIM = TYPE C & W(POWER WINDOW),DARK GRAY,TRIM1#

main67610-0Z130-A2iZZE123..ARL200303-200408

IVORY,TRIM0#

main67610-0Z130-B2iZZE123..ARL200408-200510

TRIM = TYPE C-*104,DK.GRAY,TRIM1#

main67610-0Z130-B2iZZE123..ARL200303-200408

DK.GRAY,TRIM1#

main67610-0Z140-A0iZZE122..4D..ARL200303-200408

TRIM = TYPE B-*104,IVORY,TRIM0#

main67610-0Z140-A1iZZE122..5D200303-200408

TRIM = TYPE C-*104,IVORY,TRIM01

main67610-0Z140-B0iZZE122..5D200303-200408

TRIM = TYPE B-*104,DK.GRAY,TRIM10

main67610-0Z140-B1iZZE122..5D200303-200408

TRIM = TYPE C-*104,DK.GRAY,TRIM1#

main67610-0Z140-B2iZZE122..5D200303-200408

TRIM = TYPE C-*104,DARK GRAY,TRIM10

main67610-0Z180-B1iZZE120,121..4D..STD200208-200408

TRIM = TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-0Z190-A0iZZE122..4D..ARL200303-200408

TRIM = TYPE B-*104 & W(POWER WINDOW),IVORY,TRIM0#

main67610-0Z190-B0iZZE122..5D200303-200408

TRIM = TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-0Z200-B0iZZE121..5D200210-200408

TRIM = TYPE D-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-0Z210-B0iZZE120,121..5D200210-200408

TRIM = TYPE D-*104,DK.GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iZZE12#200208-200707

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-02B20-B0iZZE122..5D..ARL200408-200506

TRIM = TYPE F-*104,GRAY,TRIM1#

main67620-02B40-B0iZZE120..STD200408-200707

TRIM = TYPE D-*104,GRAY,TRIM1#

main67620-02B50-B0iZZE122..4D..STD200408-200506

TRIM = TYPE D-*104,GRAY,TRIM1#

main67620-02B50-B1iZZE122..5D..ARL200408-200506

TRIM = TYPE D-*104,GRAY,TRIM1#

main67620-02B60-B0iZZE120,121..RS200408-200707

TRIM = TYPE F-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67620-02B70-B0iZZE120..RT200408-200707

TRIM = TYPE F-*104,GRAY,TRIM1#

main67620-0Z010-B1iZZE120,121..4D..STD200208-200408

TRIM = TYPE B-*104,DK.GRAY,TRIM1#

main67620-0Z020-B0iZZE122..5D200303-200408

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67620-0Z070-B1iZZE120,121..4D;ZZE122..MTM..SA200208-200408

TRIM = TYPE C-*104,DK.GRAY,TRIM1#

main67620-0Z070-B6iZZE120,121..4D;ZZE122..MTM..SA200208-200408

TRIM = TYPE C-*104,DARK GRAY,TRIM10

main67620-0Z070-B7iZZE120,121..GLE200408-200707

TRIM = TYPE E-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67620-0Z090-B1iZZE122..ATM..SA;ZZE120,121..4D..STD200208-200408

TRIM = TYPE C & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-0Z090-B6iZZE122..ATM..SA;ZZE120,121..4D..STD200208-200408

TRIM = TYPE C & W(POWER WINDOW),DARK GRAY,TRIM10

main67620-0Z090-B7iZZE120,121,122..GLS200408-200707

TRIM = TYPE E-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67620-0Z110-A3iZZE121,122,123..MTM..SA200208-200408

TRIM = TYPE A-*104,IVORY,TRIM0#

main67620-0Z110-B3iZZE121,122,123..MTM..SA200208-200408

TRIM = TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-0Z110-B3iZZE121,122,123..SA..(RX,STD)200408-200707

TRIM = TYPE C-*104,DK.GRAY,TRIM1#

main67620-0Z110-B4iZZE121,122..GSX200408-200707

TRIM = TYPE C-*104,GRAY,TRIM1#

main67620-0Z120-A0iZZE122..5D200303-200408

TRIM = TYPE C & W(POWER WINDOW),IVORY,TRIM0#

main67620-0Z120-B0iZZE122..5D200303-200408

DK.GRAY,TRIM10

main67620-0Z120-B1iZZE122..5D200303-200408

TRIM = TYPE C & W(POWER WINDOW),DARK GRAY,TRIM1#

main67620-0Z120-B1iZZE122..5D200303-200408

DARK GRAY,TRIM10

main67620-0Z130-A2iZZE123..ARL200303-200408

IVORY,TRIM0#

main67620-0Z130-B2iZZE123..ARL200303-200408

DK.GRAY,TRIM1#

main67620-0Z130-B2iZZE123..ARL200408-200510

TRIM = TYPE C-*104,DK.GRAY,TRIM1#

main67620-0Z140-A0iZZE122..4D..ARL200303-200408

TRIM = TYPE B-*104,IVORY,TRIM0#

main67620-0Z140-A1iZZE122..5D200303-200408

TRIM = TYPE C-*104,IVORY,TRIM0#

main67620-0Z140-B0iZZE122..5D200303-200408

TRIM = TYPE B-*104,DK.GRAY,TRIM10

main67620-0Z140-B1iZZE122..5D200303-200408

TRIM = TYPE C-*104,DK.GRAY,TRIM10

main67620-0Z140-B2iZZE122..5D200303-200408

TRIM = TYPE C-*104,DARK GRAY,TRIM10

main67620-0Z180-B1iZZE120,121..4D..STD200208-200408

TRIM = TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-0Z190-A0iZZE122..4D..ARL200303-200408

TRIM = TYPE B-*104 & W(POWER WINDOW),IVORY,TRIM0#

main67620-0Z190-B0iZZE122..5D200303-200408

TRIM = TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-0Z210-B0iZZE121..5D200210-200408

TRIM = TYPE D-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-0Z220-B0iZZE120,121..5D200210-200408

TRIM = TYPE D-*104,DK.GRAY,TRIM1#

67602ARETAINER, DOOR TRIM, LH

main67771-12050iZZE12#200208-200707

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-12290iZZE12#200208-200303

RH

main68171-12320iZZE12#200303-200707

RH

main68172-12210iZZE12#200208-200303

LH

main68172-12240iZZE12#200303-200707

LH

86262ECOVER, SPEAKER, FRONT

main86262-17010iZZE120;ZZE121..4D..STD200208-200707

9016450031

main90164-50031

9016450032

main90164-50032

9016460018

main90164-60018

9018905003

main90189-05003

9018906018

main90189-06018

15 parts on this diagram · 4 diagrams in section
