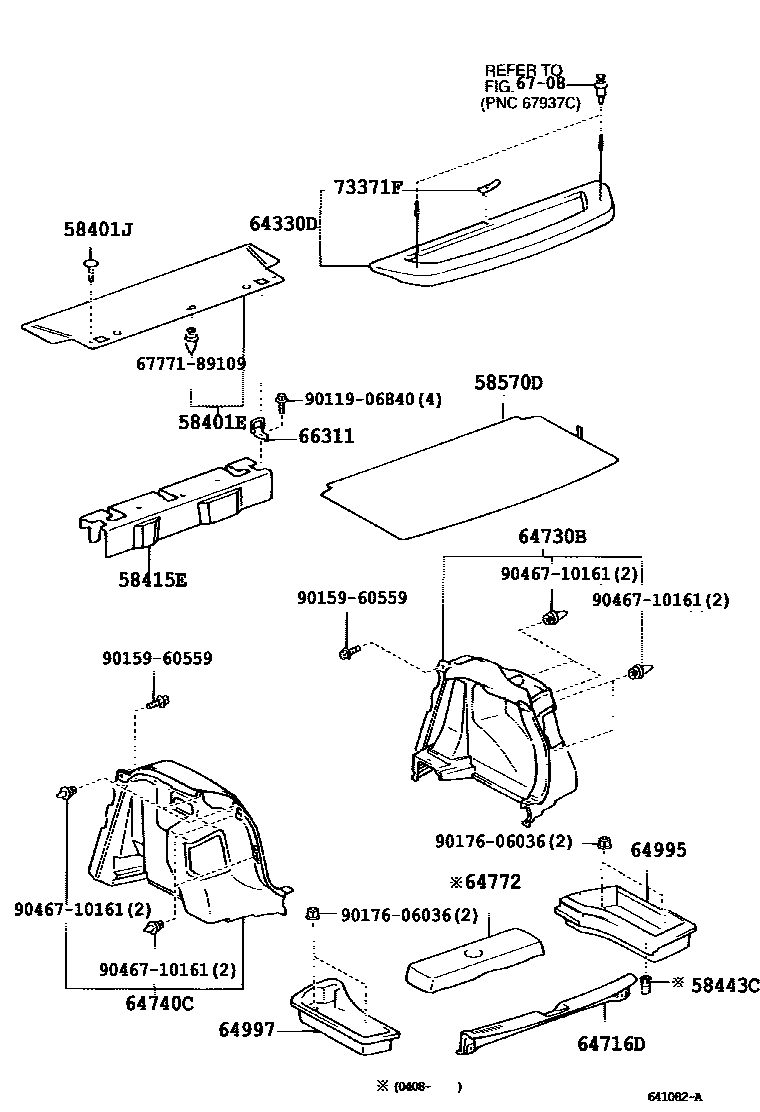

DECK BOARD & DECK TRIM COVER

58401EBOARD SUB-ASSY, DECK

main58401-02010-C0iZZE120..RT200210-200408

BLACK,TRIM1#

main58401-02030-C0iZZE123..ARL200303-200408

BLACK,TRIM1#

58401JCLIP(FOR DECK BOAD)

main90467-06048-P1×2iZZE121,123..5D200210-200408

DK.GRAY,TRIM1#

58415EBOARD, REAR FLOOR, NO.1

main58415-02020iZZE12#..5D200210-200408

58443CCUSHION, DECK COMPARTMENT BOX

main58443-13040iZZE12#..5D200408-200707

58570DCARPET ASSY, REAR FLOOR

main58570-02050-C0iZZE121,123..5D200210-200408

BLACK,TRIM1#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-02280-A0iZZE121,123..5D..SA200210-200408

IVORY,TRIM0#

main64330-02280-B0iZZE12#..5D..SA200408-200707

DARK GRAY,TRIM1#

main64330-02370-A0iZZE123..ARL200303-200408

IVORY,TRIM0#

main64330-02370-B0iZZE122,123..5D..ARL200408-200510

DARK GRAY,TRIM1#

64716DCOVER, DECK TRIM, REAR

main64716-02060-B0iZZE121,123..5D200210-200408

DK.GRAY,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-02040-C0iZZE121,123..5D200210-200408

BLACK,TRIM0#

main64730-02040-C1iZZE12#..5D200210-200408

BLACK,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-02040-C0iZZE121,123..5D200210-200408

BLACK,TRIM0#

main64740-02040-C1iZZE12#..5D200210-200408

BLACK,TRIM1#

64772PAD, SPARE WHEEL COVER

main64777-13040iZZE12#..5D200408-200707

64995BOX, DECK FLOOR, RH

main64995-13020iZZE12#..5D200210-200408

64997BOX, DECK FLOOR, LH

main64997-13020iZZE12#..5D200210-200408

66311HOOK, ROPE

main66310-13010×4iZZE12#..5D200210-200408

6708

73371FHANGER, PACKAGE TRAY TRIM

main73371-13020-A0iZZE121,123..5D200210-200408

IVORY,TRIM0#

main73371-13020-B0iZZE12#..5D200210-200408

DK.GRAY,TRIM1#

6777189109WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89109

9011906840

main90119-06840

9015960559

main90159-60559

9017606036

main90176-06036

9046710161

main90467-10161

20 parts on this diagram · 1 diagram in section
