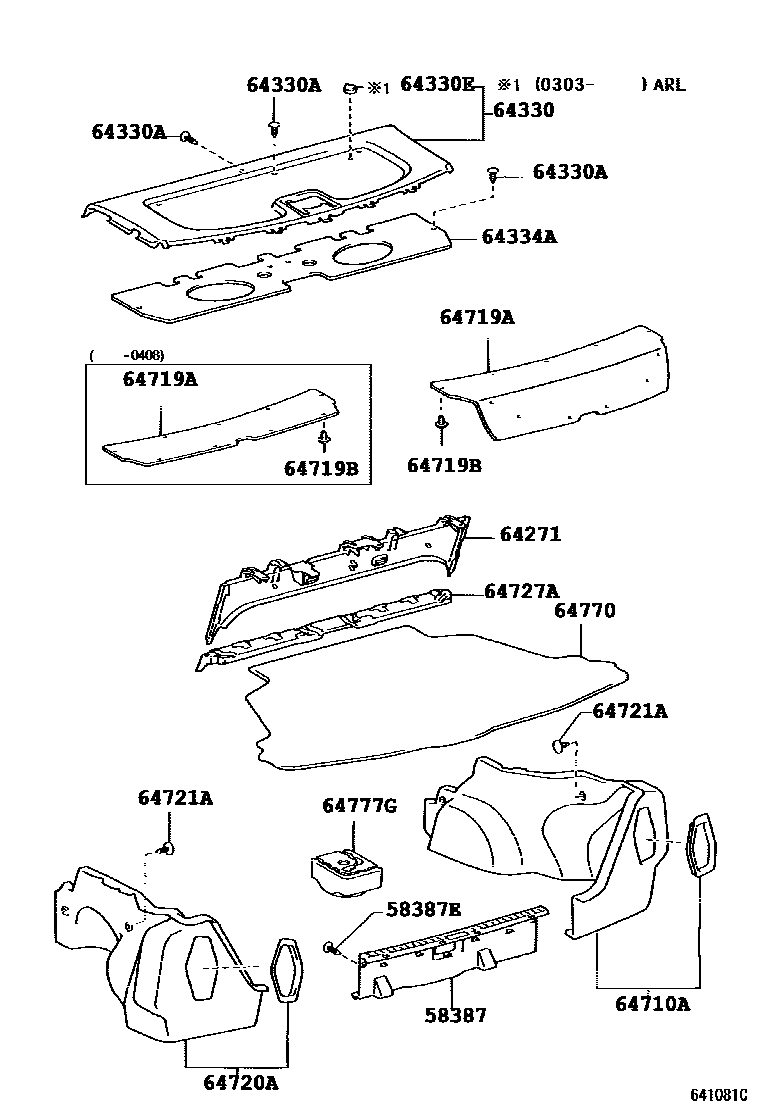

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02070-B0iZZE121,122..4D..MTM..SA200208-200707

DK.GRAY,TRIM1#

main58387-02070-B0iZZE121,122..4D..MTM..SA200208-200408

DK.GRAY,TRIM0#,1#

main58387-02070-B0iZZE122..4D..ARL200303-200408

DK.GRAY,TRIM0#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22iZZE121,122..4D..MTM..SA200208-200408

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iZZE121,122..4D..MTM..SA200208-200408

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iZZE122..4D..ARL200303-200408

BLACK,TRIM0#

sub90467-05096

main90467-05096-22iZZE120,121,122..4D200408-200707

BLACK

sub90467-05096

64271BOARD, ROOM PARTITION, NO.1

main64271-02100-C1iZZE121,122..4D..MTM..SA200208-200707

BLACK,TRIM1#

main64271-02100-C1iZZE121,122..4D..MTM..SA200208-200408

BLACK,TRIM0#,1#

main64271-02100-C1iZZE122..4D..ARL200303-200408

BLACK,TRIM0#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02380-A0iZZE122..4D..ARL200303-200408

IVORY,TRIM0#

main64330-02380-B0iZZE122..4D..ARL200303-200506

DARK GRAY,TRIM1#

main64330-02420-A0iZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main64330-02420-B0iZZE120,121,122..4D..SA200208-200707

DARK GRAY,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06061-A0iZZE122..4D..ARL;ZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

sub90467-06061

sub90467-06020

main90467-06061-B2iZZE120,121,122..4D200208-200707

DK.GRAY,TRIM1#

sub90467-06061

sub90467-06020

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01436-A0iZZE122..4D..ARL200303-200408

IVORY,TRIM0#

sub90950-01436

sub64353-50010

main90950-01436-B8iZZE122..4D..ARL200303-200506

DK.GRAY,TRIM1#

sub90950-01436

sub64353-50010

64334APAD, PACKAGE TRAY TRIM

main64334-02090iZZE120,121,122..4D200208-200707

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02100-C0iZZE121,122..ATM..SA200208-200707

BLACK,TRIM1#

main64710-02100-C0iZZE121,122..ATM..SA200208-200408

BLACK,TRIM0#,1#

main64710-02120-C0iZZE122..4D..ARL200303-200408

BLACK,TRIM0#

main64710-02120-C0iZZE120..4D;ZZE122..4D..STD200208-200707

BLACK,TRIM1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12110-C0iZZE121,122..4D..MTM..SA200208-200408

BLACK,TRIM0#,1#

main64719-12110-C0iZZE121,122..4D..MTM..SA200208-200408

BLACK,TRIM1#

main64719-12120-C0iZZE120,121,122..4D..SA200408-200707

BLACK,TRIM1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05096-22iZZE121,122..4D..MTM..SA200208-200408

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iZZE120..STD;ZZE121,122..ATM..SA200208-200408

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iZZE120,121,122..4D..SA200410-200707

BLACK

sub90467-05096

main90467-05165-B0iZZE120,121,122..4D..SA200408-200409

DK.GRAY,TRIM1#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02100-C0iZZE121,122..ATM..SA200208-200707

BLACK,TRIM1#

main64720-02100-C0iZZE121,122..ATM..SA200208-200408

BLACK,TRIM0#,1#

main64720-02120-C0iZZE122..4D..ARL200303-200408

BLACK,TRIM0#

main64720-02120-C0iZZE120..4D;ZZE122..4D..STD200208-200707

BLACK,TRIM1#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22iZZE120..STD;ZZE121,122..ATM..SA200208-200408

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iZZE121,122..4D..MTM..SA200208-200408

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iZZE122..4D..ARL200303-200408

BLACK,TRIM0#

sub90467-05096

main90467-05096-22iZZE120,121,122..4D200408-200707

BLACK

sub90467-05096

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-12020iZZE120,121,122..4D200208-200707

64770COVER ASSY, SPARE WHEEL

main64771-02170-C0iZZE121,122..4D..MTM..SA200208-200707

BLACK,TRIM1#

main64771-02170-C0iZZE120..STD;ZZE121,122..ATM..SA200208-200408

BLACK,TRIM0#,1#

main64771-02170-C0iZZE122..4D..ARL200303-200408

BLACK,TRIM0#

64777GCUSHION, SPARE WHEEL

main64777-12030iZZE120..GLS200408-200707

main64777-12030-B0iZZE120..STD200208-200408

SHADOW GRAY,TRIM1#

sub64777-12030

15 parts on this diagram · 1 diagram in section
