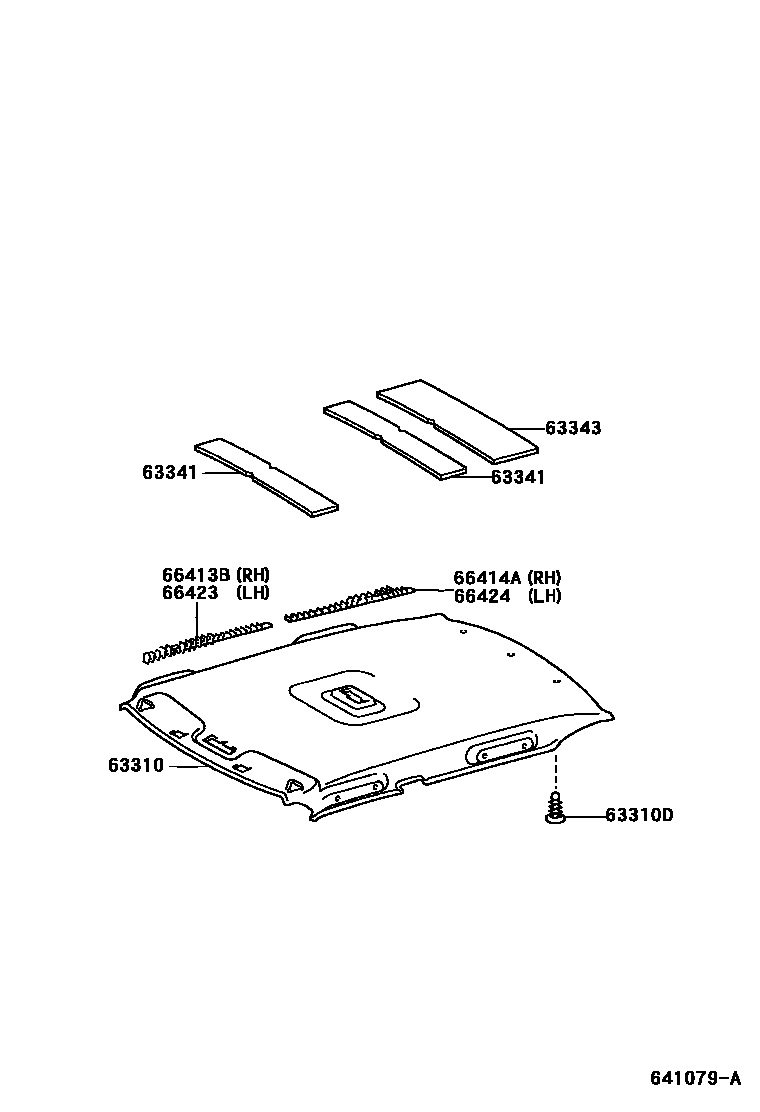

ROOF HEADLINING & SILENCER PAD

0001 1 0003 1

63310HEADLINING ASSY, ROOF

main63310-02200-B0iZZE120,121..5D200210-200707

LT. GRAY,TRIM1#

main63310-02390-A0iZZE121,123..5D200210-200408

IVORY,TRIM0#

main63310-02390-B0iZZE121,122,123..5D200210-200408

W(MAP LAMP),LT. GRAY,TRIM1#

main63310-02390-B0iZZE121,122,123..5D..(RX,STD)200408-200707

LT. GRAY,TRIM1#

main63310-02400-B0iZZE120,121,122..4D..SA..(GLE,GLS,STD)200208-200707

LT. GRAY,TRIM1#

main63310-02410-A0iZZE122..4D..ARL;ZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main63310-02410-B0iZZE121,122..4D..MTM..SA200208-200408

W(MAP LAMP),LT. GRAY,TRIM1#

main63310-02410-B0iZZE121,122..4D..(GSX,STD)200408-200707

LT. GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05021-A1iZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA200208-200408

IVORY,TRIM0#

sub90467-05021

sub90467-06177

main90467-05021-P4iZZE12#200208-200707

LT.GRAY,TRIM1#

sub90467-05021

sub90467-06177

63341PAD, ROOF SILENCER, NO.1

main63341-02080iZZE120,121,122..4D200208-200707

63343PAD, ROOF SILENCER, NO.3

main63343-02060iZZE120,121,122..4D200208-200707

66413BSPACER, SIDE RAIL, FRONT RH

main66413-12010iZZE12#200208-200707

66414ASPACER, SIDE RAIL, REAR RH

main66414-12030iZZE120,121,122..4D200208-200707

66423SPACER, SIDE RAIL, FRONT LH

main66423-12010iZZE12#200208-200707

66424SPACER, SIDE RAIL, REAR LH

main66424-12030iZZE120,121,122..4D200208-200707

8 parts on this diagram · 2 diagrams in section
