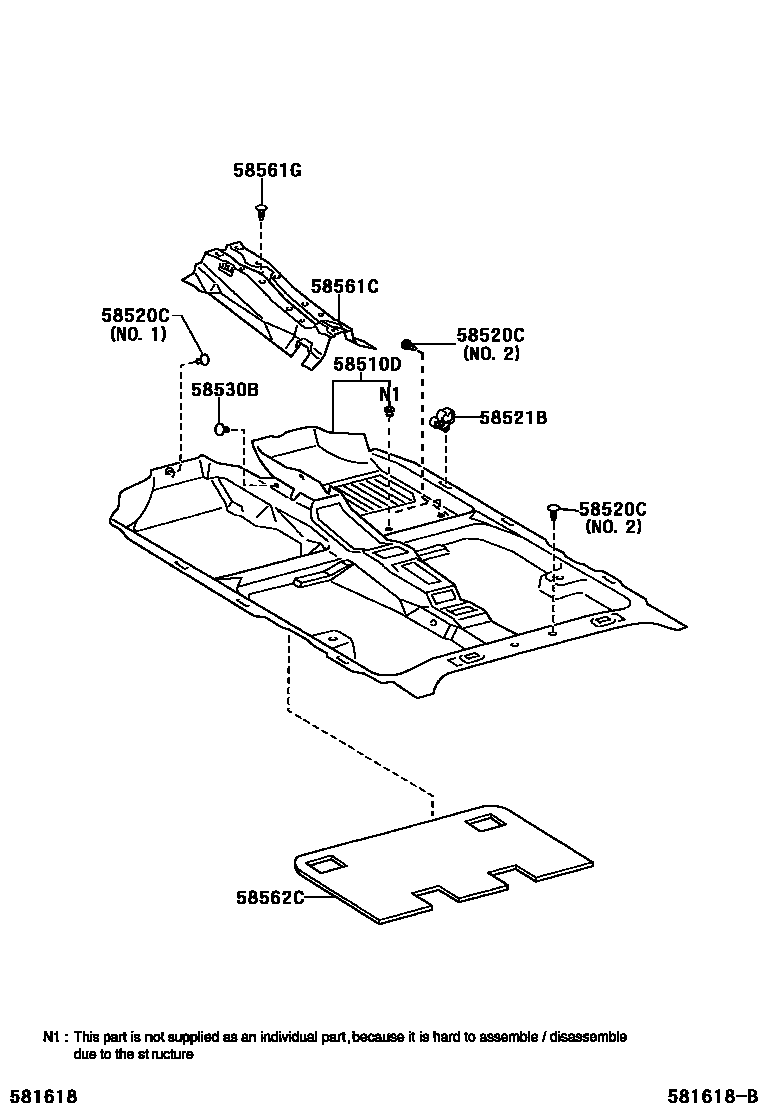

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-02620-A0iZZE121,122..4D..MTM200208-200212

IVORY,TRIM0#

main58510-02620-B0iZZE120,121,122..4D200208-200212

GRAY,TRIM1#

main58510-02621-A0iZZE121,122..4D..MTM..SA200212-200408

IVORY,TRIM0#

main58510-02621-B0iZZE120,121,122..4D..SA200212-200408

GRAY,TRIM1#

main58510-02621-B1iZZE120,121,122..4D..SA200408-200707

MD.GRAY,TRIM1#

main58510-02630-A0iZZE121,123..5D200210-200212

IVORY,TRIM0#

main58510-02630-B0iZZE120,121,123..5D200210-200212

GRAY,TRIM1#

main58510-02631-A0iZZE121,123..5D..SA200212-200408

IVORY,TRIM0#

main58510-02631-B0iZZE120,121,123..5D..SA200212-200707

GRAY,TRIM1#

main58510-02661-A0iZZE122..4D..ARL200303-200408

IVORY,TRIM0#

main58510-02661-B1iZZE122..4D..STD200408-200506

MD.GRAY,TRIM1#

main58510-02671-B0iZZE122..5D200303-200506

GRAY,TRIM1#

main58510-02681-A0iZZE123..ARL200303-200408

IVORY,TRIM0#

main58510-02681-B0iZZE123..ARL200303-200510

GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-B2iZZE121,122..MTM200208-200209

STONE,TRIM10,NO.1

sub90467-06001

main90467-06001-B2iZZE120;ZZE121,122..ATM200208-200209

STONE,TRIM01,10,NO.1

sub90467-06001

main90467-06001-C0iZZE121,123..STD;ZZE122..MTM..SA200209-200707

BLACK,TRIM1#,NO.1

sub90467-06001

main90467-06001-C0iZZE121,123..STD;ZZE122..MTM..SA200209-200408

BLACK,TRIM0#,1#,NO.1

sub90467-06001

main90467-06001-C0iZZE122..4D..ARL200303-200408

BLACK,TRIM0#,NO.1

sub90467-06001

main90467-06001-C0iZZE121,122..MTM200208-200209

BLACK,TRIM01,10,NO.1

sub90467-06001

main90467-06001-C0iZZE121,122..MTM200208-200209

BLACK,TRIM10,NO.1

sub90467-06001

main90467-07049-C0iZZE12#..5D200408-200707

BLACK,NO.2

sub90467-07049

main90467-07049-C0iZZE121,122,123..MTM200208-200408

BLACK,TRIM0#,1#,NO.2

sub90467-07049

main90467-07049-C0iZZE121,122,123..MTM200208-200707

BLACK,TRIM1#,NO.2

sub90467-07049

main90467-07049-C0iZZE122..4D..ARL200303-200408

BLACK,TRIM0#,NO.2

sub90467-07049

58521BHOOK, FLOOR CARPET

main58521-12130iZZE12#200208-200707

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09118iZZE12#200208-200707

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02100iZZE12#200208-200707

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-06020-A2iZZE122..4D..ARL200305-200408

IVORY,TRIM01

sub90467-06020

main90467-06020-B5iZZE120;ZZE121,122..ATM200208-200209

STONE,TRIM01,10

sub90467-06020

main90467-06020-B5iZZE120;ZZE121,122..ATM200208-200209

STONE,TRIM10

sub90467-06020

main90467-06020-C0iZZE120;ZZE122..5D;ZZE121,122..ATM..SA200209-200408

BLACK,TRIM0#,1#

sub90467-06020

main90467-06020-C0iZZE120;ZZE122..5D;ZZE121,122..ATM..SA200209-200707

BLACK,TRIM1#

sub90467-06020

main90467-06020-C0iZZE122..4D..ARL200305-200408

BLACK,TRIM01

sub90467-06020

main90467-06020-C0iZZE121,122..MTM200208-200209

BLACK,TRIM01,10

sub90467-06020

main90467-06020-C0iZZE121,122..MTM200208-200209

BLACK,TRIM10

sub90467-06020

main90467-06020-C0iZZE122..4D..ARL200303-200305

BLACK,TRIM0#

sub90467-06020

58562CSILENCER, FRONT FLOOR, NO.2

main58435-02010iZZE121,122..4D..SA200208-200707

7 parts on this diagram · 2 diagrams in section
