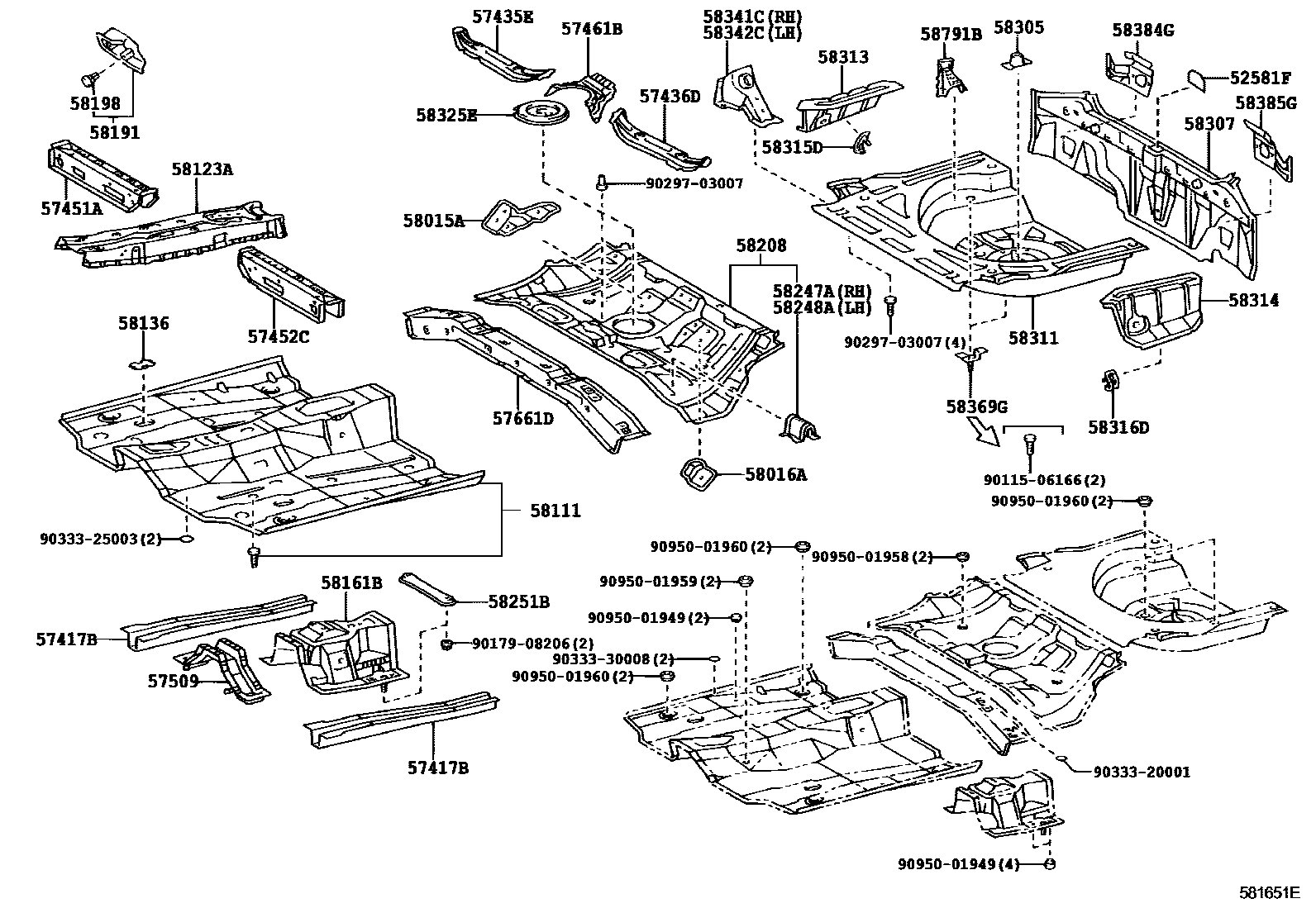

FLOOR PAN & LOWER BACK PANEL
57417BREINFORCEMENT, FRONT FLOOR UNDER
SAVP PART
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57452CMEMBER, FRONT FLOOR CROSS, LH
SAVP PART
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
SAVP PART
57661DMEMBER, REAR FLOOR CROSS, FRONT
SAVP PART
SAVP PART
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
SAVP PART
58123ASUPPORT, SHIFT & SELECT LEVER
SAVP PART
58136COVER, FRONT FLOOR HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
SAVP PART
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
SAVP PART
SAVP PART
58311PAN, REAR FLOOR
SAVP PART
58313PANEL, REAR FLOOR SIDE, RH
SAVP PART
SAVP PART
58314PANEL, REAR FLOOR SIDE, LH
SAVP PART
SAVP PART
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
SAVP PART
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58369GBRACKET, FUEL TUBE, NO.3
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58791BCARRIER, JACK
9011506166
main90115-06166
9017908206
main90179-08206
9029703007
main90297-03007
9033320001
main90333-20001
9033325003
main90333-25003
9033330008
main90333-30008
9095001949
main90950-01949
9095001958
main90950-01958
9095001959
main90950-01959
9095001960
main90950-01960
44 parts on this diagram · 4 diagrams in section
