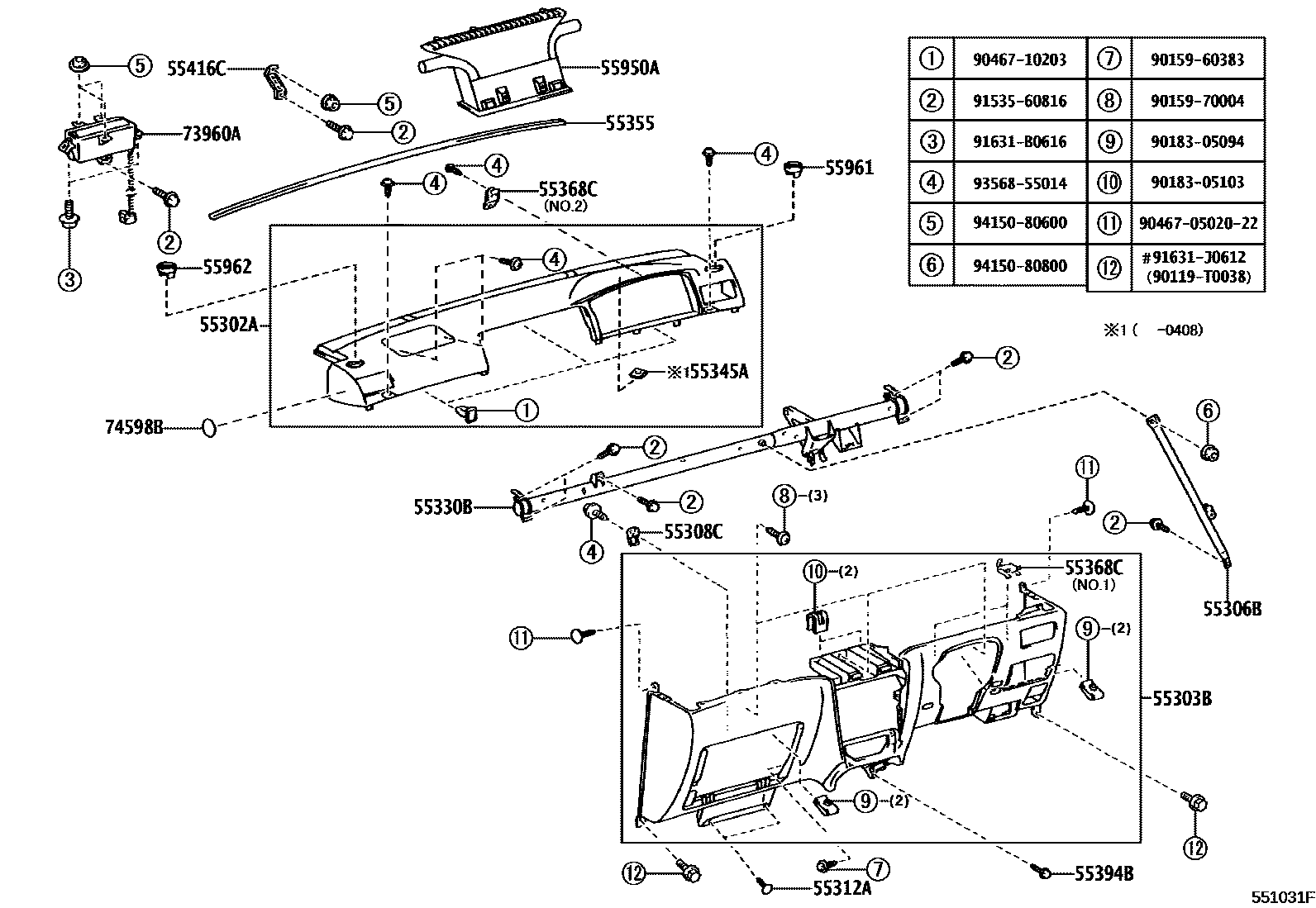

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02010-B0iZZE120,121..GLE,RT,STD200502-200707

DK.GRAY,TRIM1#

sub55302-02902

main55302-02030-B0iZZE122..ARL200408-200506

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02160-A0iZZE122..ARL;ZZE121,123..STD;ZZE122..MTM..SA200208-200408

IVORY,TRIM0#

sub55303-12244

sub90183-05103

main55303-02160-B0iZZE12#200208-200408

DK.GRAY,TRIM1#

sub55303-12244

sub90183-05103

main55303-02160-B1iZZE120,121,122..4D200408-200707

MD.GRAY,TRIM1#

sub55303-12244

sub90183-05103

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-02030iZZE12#200208-200408

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-02100iZZE12#200208-200408

55312ACLIP, INSTRUMENT PANEL

main90467-06089-C0×2iZZE121,123..STD;ZZE122..MTM..SA200208-200408

BLACK,TRIM0#,1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02180iZZE12#200211-200408

main55330-02230iZZE12#200208-200211

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iZZE12#200208-200408

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iZZE12#200408-200707

55368CBRACKET, METER MOUNTING

main55362-12050×2iZZE12#200208-200408

NO.1

main55368-12090iZZE12#200208-200408

NO.2

55394BBOLT, INSTRUMENT PANEL

main55394-12010iZZE12#200408-200707

OD=6

main55394-12020iZZE12#200208-200408

55416CRETAINER, INSTRUMENT CLUSTER FINISH PANEL

main55416-12030iZZE120,121,122200208-200408

55950ANOZZLE ASSY, DEFROSTER

main55950-02120iZZE12#200408-200707

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12220-B0iZZE120;ZZE121,122..ATM..SA200208-200408

DK.GRAY,TRIM1#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-12220-B0iZZE120;ZZE121,122..ATM..SA200208-200408

DK.GRAY,TRIM1#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02040iZZE120,121..GLE,RT,STD200502-200707

sub73960-02250

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-30040iZZE120,121..GLE,RT,STD200502-200707

90119T0038

main90119-T0038

9015960383

main90159-60383

9015970004

main90159-70004

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046710203

main90467-10203

9153560816

main91535-60816

91631B0616

main91631-B0616

91631J0612

main91631-J0612

9356855014

main93568-55014

9415080600

main94150-80600

9415080800

main94150-80800

29 parts on this diagram · 4 diagrams in section
