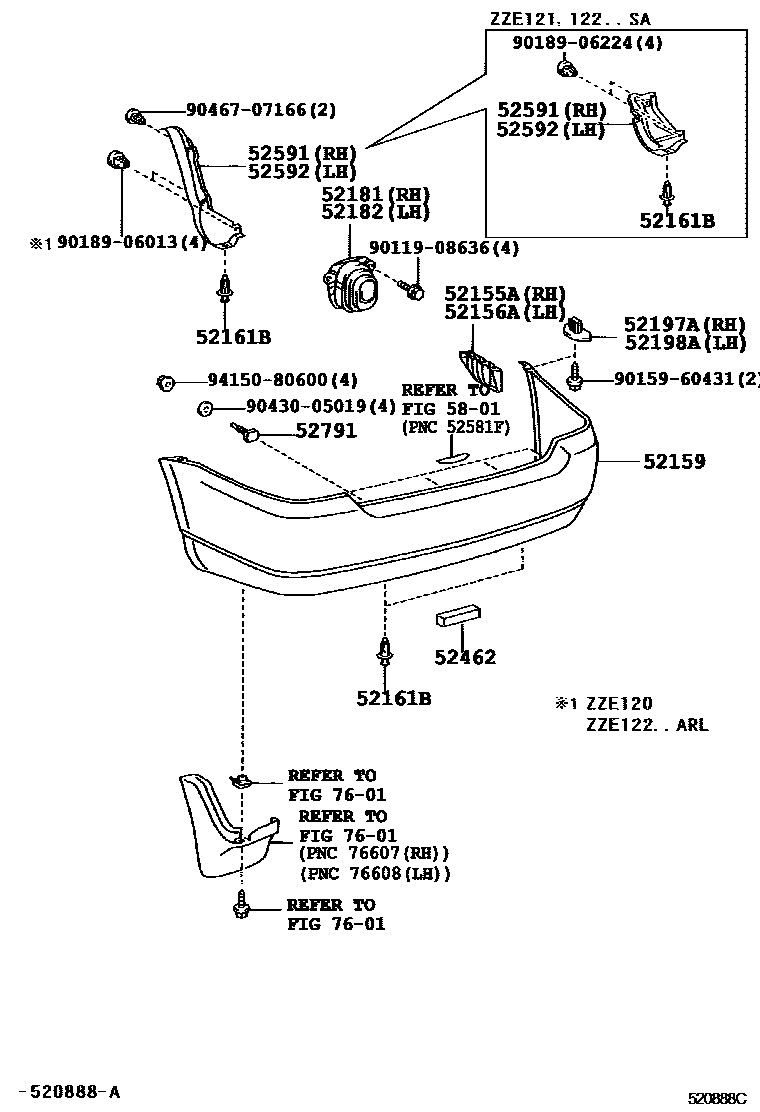

REAR BUMPER & BUMPER STAY

0001 1 0003 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12290iZZE120,121,122..4D200208-200707

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12270iZZE120,121,122..4D200208-200707

52159COVER, REAR BUMPER

main52159-02140iZZE120,121,122..4D200208-200707

PAINT REQ.

main52159-02310iZZE12#..5D200210-200707

PAINT REQ.

52161BPIECE, REAR BUMPER

main90467-09093iZZE12#200208-200707

52181ARM, REAR BUMPER, RH

main52181-12440iZZE120,121,122..4D200208-200707

main52181-13120iZZE12#..5D200210-200707

52182ARM, REAR BUMPER, LH

main52181-12440iZZE120,121,122..4D200208-200707

main52181-13120iZZE12#..5D200210-200707

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-12080iZZE120,121,122..4D200208-200707

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-12080iZZE120,121,122..4D200208-200707

52462PAD, REAR BUMPER, RH

main52462-02020iZZE120,121,122..4D200211-200707

main52462-12070iZZE120,121,122..4D200208-200211

52591SEAL, REAR BUMPER SIDE, RH

main52591-02080iZZE120,121,122..4D..SA200208-200707

main52591-02090iZZE122..SA..STD;ZZE120,121,123..5D200210-200707

main52591-02100iZZE120..STD;ZZE122..4D..ARL200208-200506

main52591-02110iZZE122..5D..ARL200210-200506

52592SEAL, REAR BUMPER SIDE, LH

main52592-02070iZZE121,122..4D..SA200208-200707

main52592-02080iZZE121,123..5D200210-200707

main52592-02090iZZE122..4D..STD200208-200506

main52592-02100iZZE122..5D..ARL200210-200506

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040iZZE12#200208-200707

5801

7601

9011908636

main90119-08636

9015960431

main90159-60431

9018906013

main90189-06013

9018906224

main90189-06224

9043005019

main90430-05019

9046707166

main90467-07166

9415080600

main94150-80600

21 parts on this diagram · 2 diagrams in section
