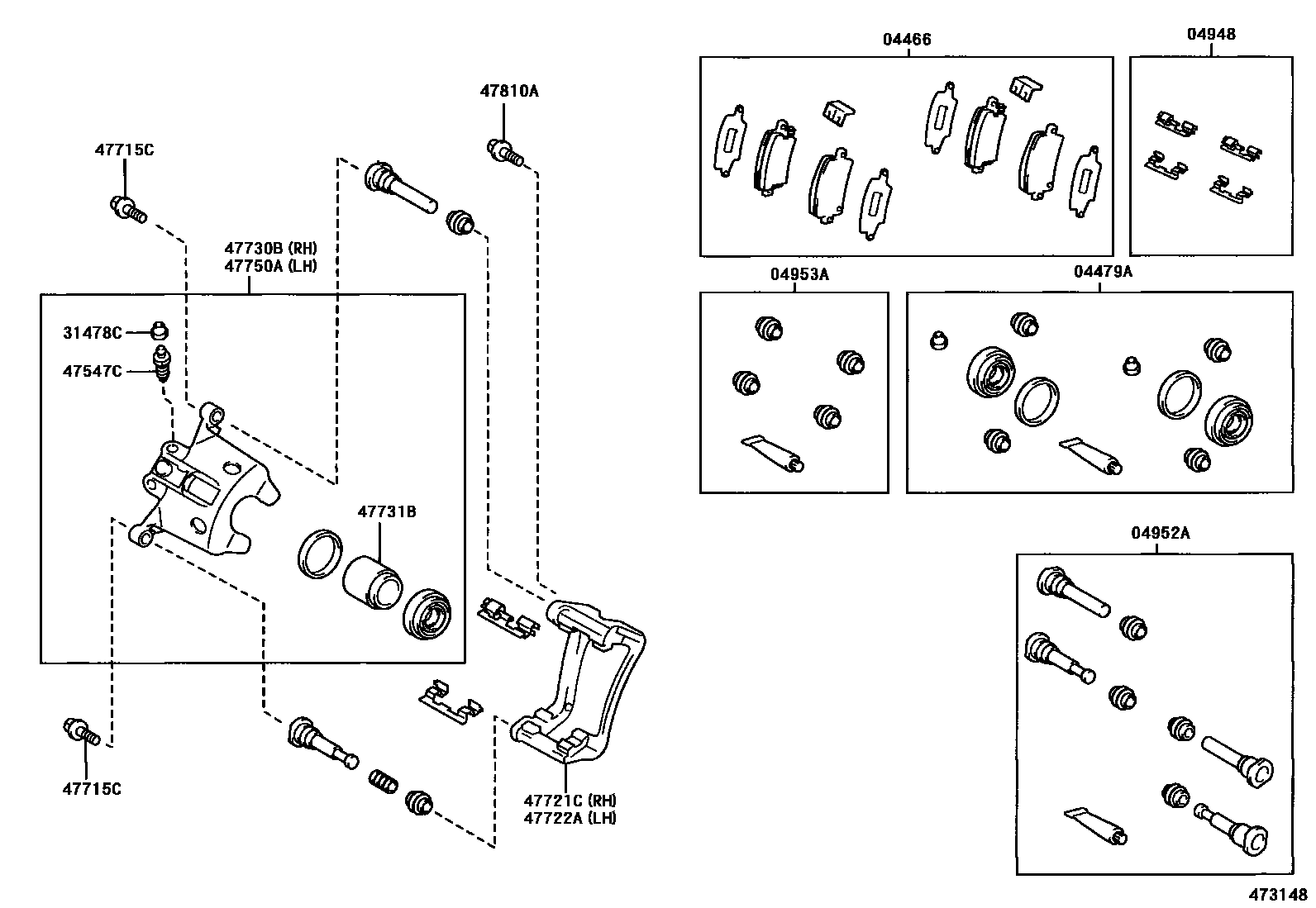

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02030iZZE120,121,122200208-200408

MARK TRW FER 4088F

main04466-52030iZZE123200408-200707

MARK AK PA511H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02120iZZE120,121,122200408-200707

main04479-02210iZZE120,121,122200208-200408

main04479-13010iZZE123200210-200408

04948FITTING KIT, DISC BRAKE, REAR

main04948-02040iZZE120,121,122200208-200408

main04948-20010iZZE123200210-200408

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02060iZZE120,121,122200208-200408

04953ABOOT KIT, REAR DISC BRAKE CYLINDER SLIDE PIN

main04953-02060iZZE120,121,122200408-200707

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iZZE123200408-200707

main47548-02040×2iZZE120,121,122200208-200408

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020×2iZZE123200408-200707

main90080-93050×2iZZE120,121,122200408-200707

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-02240×4iZZE120,121,122200208-200408

main47715-20030×2iZZE123200408-200707

NO.1

main47715-20040×2iZZE123200210-200408

NO.2

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-02161iZZE120,121,122200408-200707

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-02051iZZE120,121,122200208-200408

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-02160iZZE120,121,122200208-200408

main47730-13020iZZE123200408-200707

47731BPISTON, REAR DISC BRAKE

main47731-02120×2iZZE120,121,122200208-200408

main47731-13010×2iZZE123200408-200707

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-02160iZZE120,121,122200408-200707

main47750-13020iZZE123200408-200707

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10263×4iZZE120,121,122200208-200408

14 parts on this diagram · 2 diagrams in section
