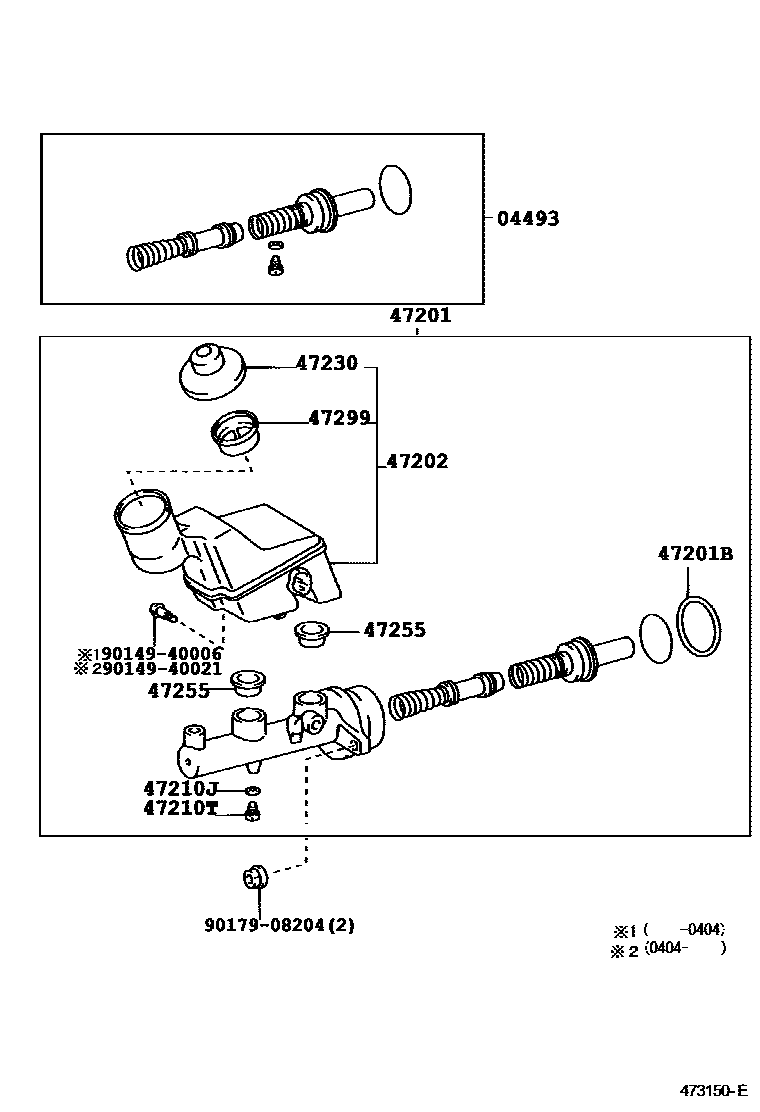

BRAKE MASTER CYLINDER

0001 1TYPE A 0004 1TYPE B

04493CYLINDER KIT, BRAKE MASTER

main04493-1A010iZZE122..ARL;ZZE120,121,123;ZZE122..MTM..SA200208-200405

sub04493-1A030

main04493-1A030iZZE123;ZZE121..GLE;ZZE122..ATM..ARL200405-200707

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02330iZZE120,121,122..SA..STD200208-200707

TYPE B:REFER TO ILLUSTRATION

main47201-1A330iZZE121..GLE;ZZE122..ATM..ARL200208-200408

TYPE A:REFER TO ILLUSTRATION

main47201-1A340iZZE122,123..MTM..ARL200208-200707

TYPE A:REFER TO ILLUSTRATION

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iZZE123200208-200707

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02150iZZE120,121,122..SA..STD200208-200408

TYPE B:REFER TO ILLUSTRATION

main47220-02150iZZE120,121,122200408-200707

main47220-12120iZZE121..GLE;ZZE122..ATM..ARL200208-200404

sub47220-12121

sub90149-40021

main47220-12121iZZE121..GLE;ZZE122..ATM..ARL200404-200408

main47220-12130iZZE12#..MTM..SA200208-200404

TYPE A:REFER TO ILLUSTRATION

sub47220-12131

sub90149-40021

main47220-12130iZZE122,123..MTM..ARL200303-200404

sub47220-12131

sub90149-40021

main47220-12131iZZE12#..MTM200404-200707

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iZZE122..ARL;ZZE120,121,123;ZZE122..MTM..SA200208-200707

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iZZE122..ARL;ZZE120,121,123;ZZE122..MTM..SA200208-200707

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02150iZZE120,121,122..SA..STD200208-200408

TYPE B:REFER TO ILLUSTRATION

main47230-02150iZZE120,121,122200408-200707

main47230-12040iZZE122,123..ARL200208-200408

TYPE A:REFER TO ILLUSTRATION

main47230-12040iZZE122,123..ARL200303-200707

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-02030iZZE120,121,122200408-200707

main47255-02030iZZE120,121,122..SA..STD200208-200408

TYPE B:REFER TO ILLUSTRATION

main47255-16010iZZE122..MTM..SA;ZZE120,121,123..SA200208-200408

TYPE A:REFER TO ILLUSTRATION

main47255-16010iZZE122,123..ARL200303-200707

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iZZE122..ARL;ZZE120,121,123;ZZE122..MTM..SA200208-200707

9014940006

main90149-40006

9014940021

main90149-40021

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
