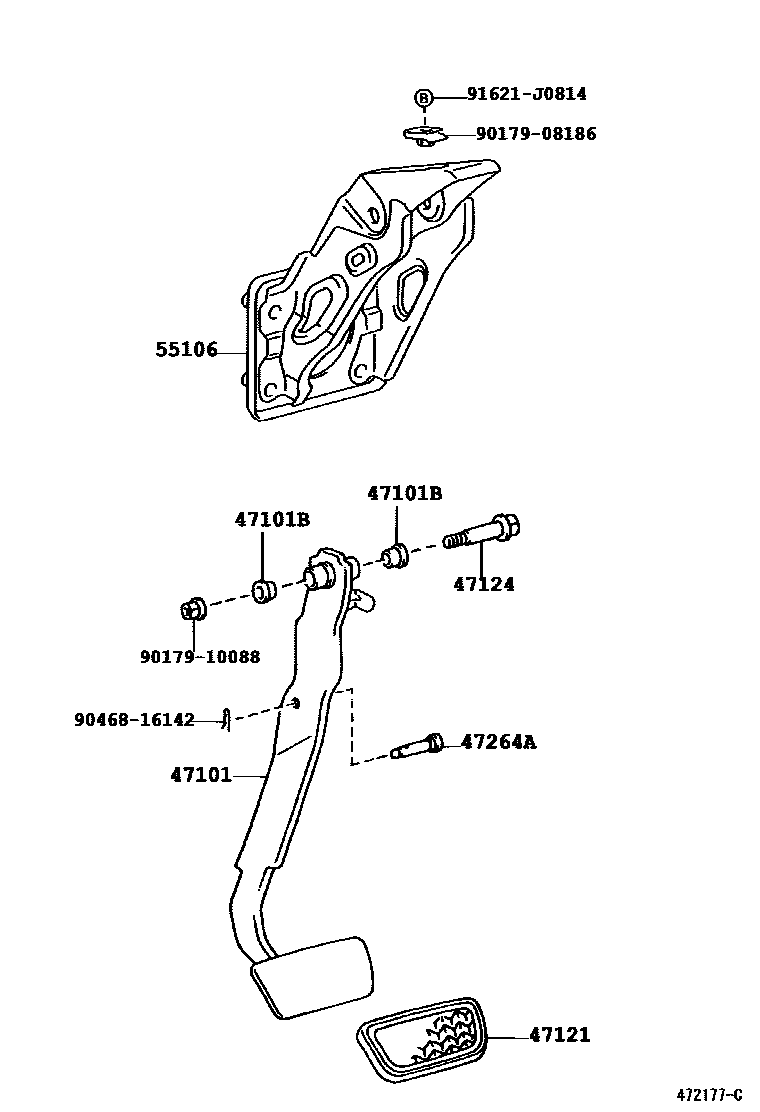

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02210iZZE12#..MTM200208-200707

main47101-02220iZZE121,122..ATM200208-200707

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZE12#200208-200707

47121PAD, BRAKE PEDAL

main31321-52010iZZE12#..MTM200208-200707

main47121-52010iZZE121,122..ATM200208-200707

47124SHAFT, BRAKE PEDAL

main90109-10174iZZE12#200208-200707

47264APIN(FOR PUSH ROD)

main47148-12070iZZE12#200208-200707

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02090iZZE12#200208-200707

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

10 parts on this diagram · 1 diagram in section
