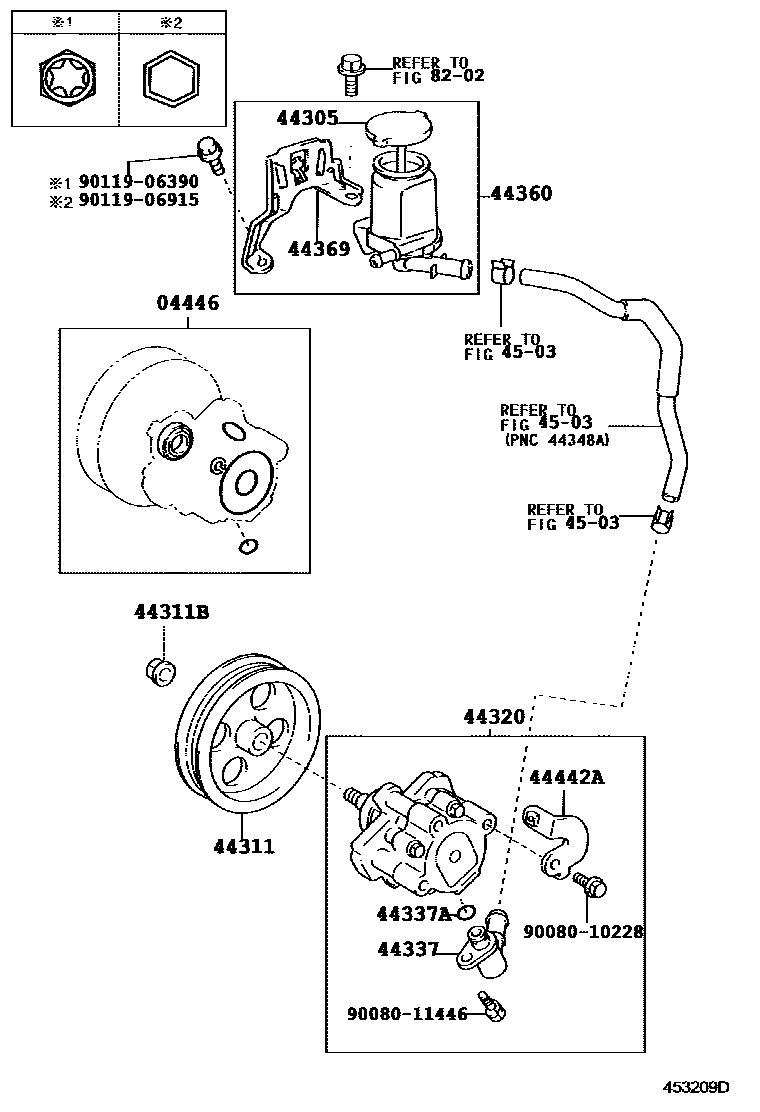

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02060iZZE120,121,122200208-200501

sub04446-0B030

main04446-02100iZZE120,121,122200501-200707

main04446-20170iZZE123200510-200707

main04446-32050iZZE123200210-200510

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iZZE12#200208-200707

sub44305-28060

44311PULLEY, VANE PUMP

main44311-02090iZZE120,121,122200208-200707

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iZZE120,121,122200208-200707

44320PUMP ASSY, VANE

main44310-12570iZZE123200210-200707

main44320-02060iZZE120,121,122200208-200707

44337UNION, POWER STEERING SUCTION PORT

main44337-02070iZZE120,121,122200208-200707

main44337-48010iZZE123200210-200707

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30049iZZE120,121,122200208-200707

main90301-11020iZZE123200210-200707

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-12100iZZE12#200208-200707

44369BRACKET, OIL RESERVOIR, NO.1

main44369-12060iZZE12#200208-200707

44442ABRACKET, VANE PUMP, REAR

main44442-02050iZZE120,121,122200208-200707

main44442-12040iZZE123200210-200707

4503

8202

9008010228

main90080-10228

9008011446

main90080-11446

9011906390

main90119-06390

9011906915

main90119-06915

16 parts on this diagram · 2 diagrams in section
