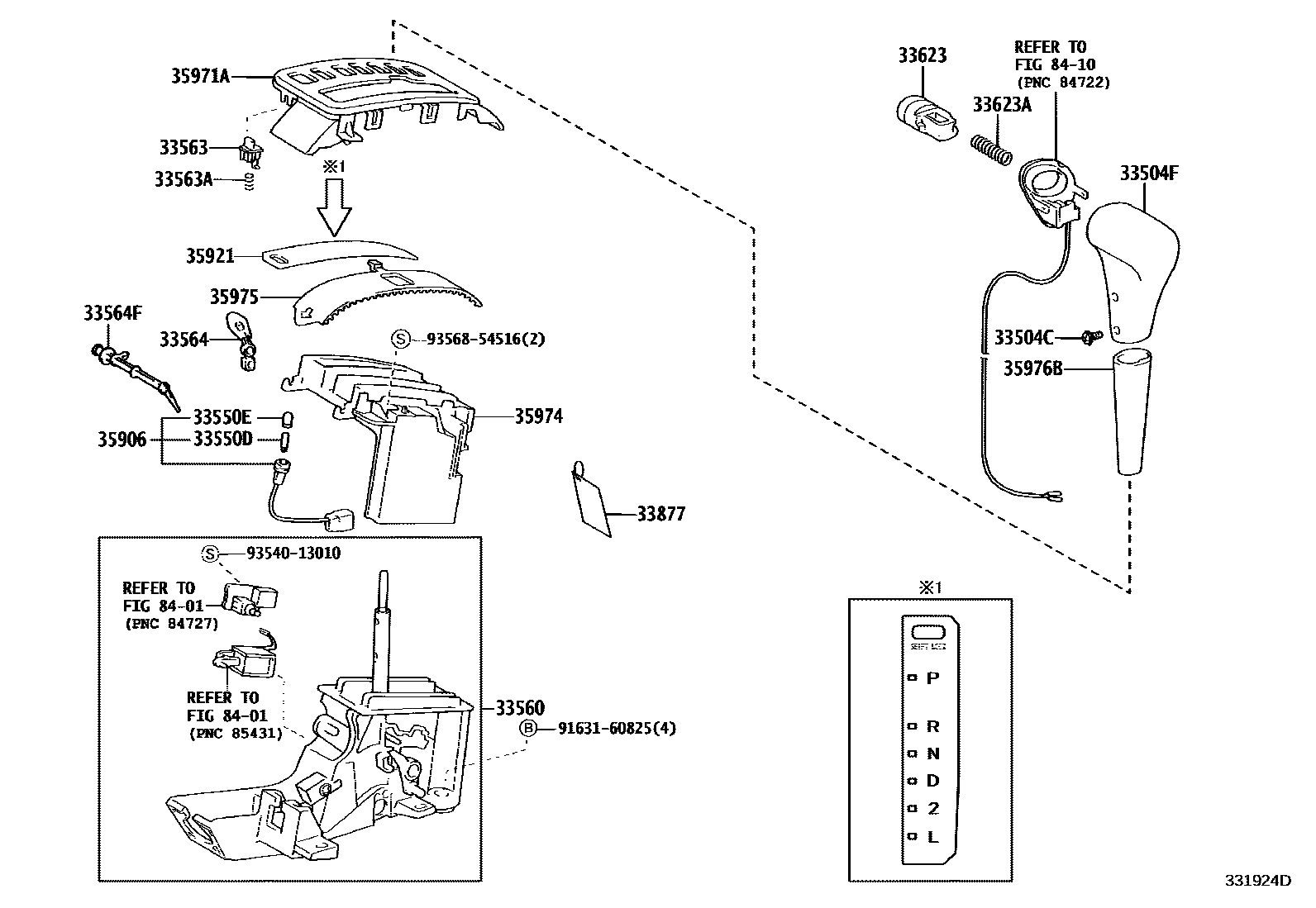

SHIFT LEVER & RETAINER
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#
WOOD & LEATHER KNOB,DK.GRAY,TRIM0#,1#
WOOD & LEATHER,DK.GRAY,TRIM0#,1#
sub33504-13041
CHROME PLATED & LEATHER,DK.GRAY,TRIM0#,1#
CHROME PLATED & LEATHER,DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM1#
33550DBULB, POSITION INDICATOR LAMP
12V 1.4W
33550ECAP, POSITION INDICATOR LAMP
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564LINK, SHIFT LOCK RELEASE, NO.1
33564FLINK, SHIFT LOCK RELEASE, NO.2
33623BUTTON, SHIFT LEVER KNOB
DK.GRAY,TRIM1#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
DK.GRAY,TRIM0#,1#
8401
8410
9163160825
main91631-60825
9354013010
main93540-13010
9356854516
main93568-54516
23 parts on this diagram · 3 diagrams in section
