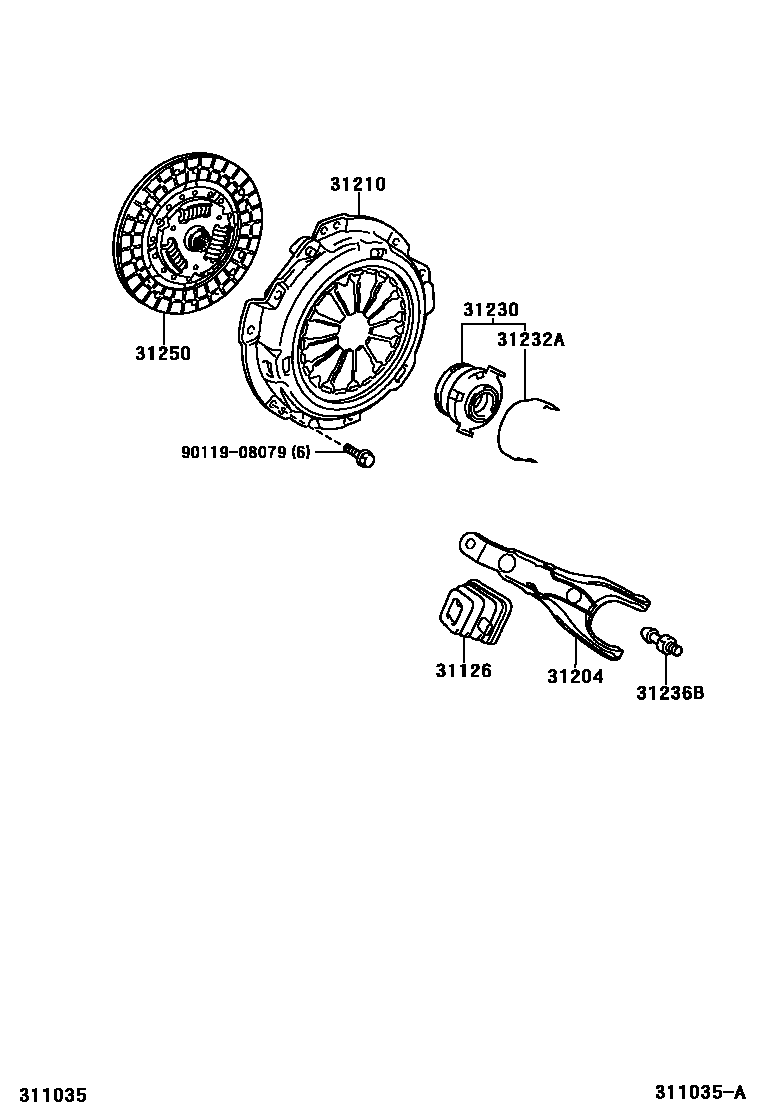

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZZE12#..MTM200208-200408

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iZZE120200208-200408

main31204-17010iZZE121,122,123..MTM200408-200707

31210COVER ASSY, CLUTCH

main31210-02110iZZE120200408-200707

main31210-02120iZZE121..MTM200408-200707

main31210-02130iZZE122..MTM200208-200408

main31210-02140iZZE123200210-200408

31230BEARING ASSY, CLUTCH RELEASE

main31230-12191iZZE121,122,123..MTM200208-200408

main31230-52010iZZE120200408-200505

main31230-52011iZZE120200505-200707

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZZE121,122,123..MTM200208-200408

main31232-52010iZZE120200208-200408

31236BSUPPORT, RELEASE FORK

main31236-12011iZZE120200408-200707

main31236-12020iZZE121,122,123..MTM200208-200408

31250DISC ASSY, CLUTCH

main31250-02080iZZE120200208-200401

main31250-02081iZZE120200402-200408

main31250-02090iZZE121,122,123..MTM200208-200401

main31250-02091iZZE121,122,123..MTM200402-200408

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
