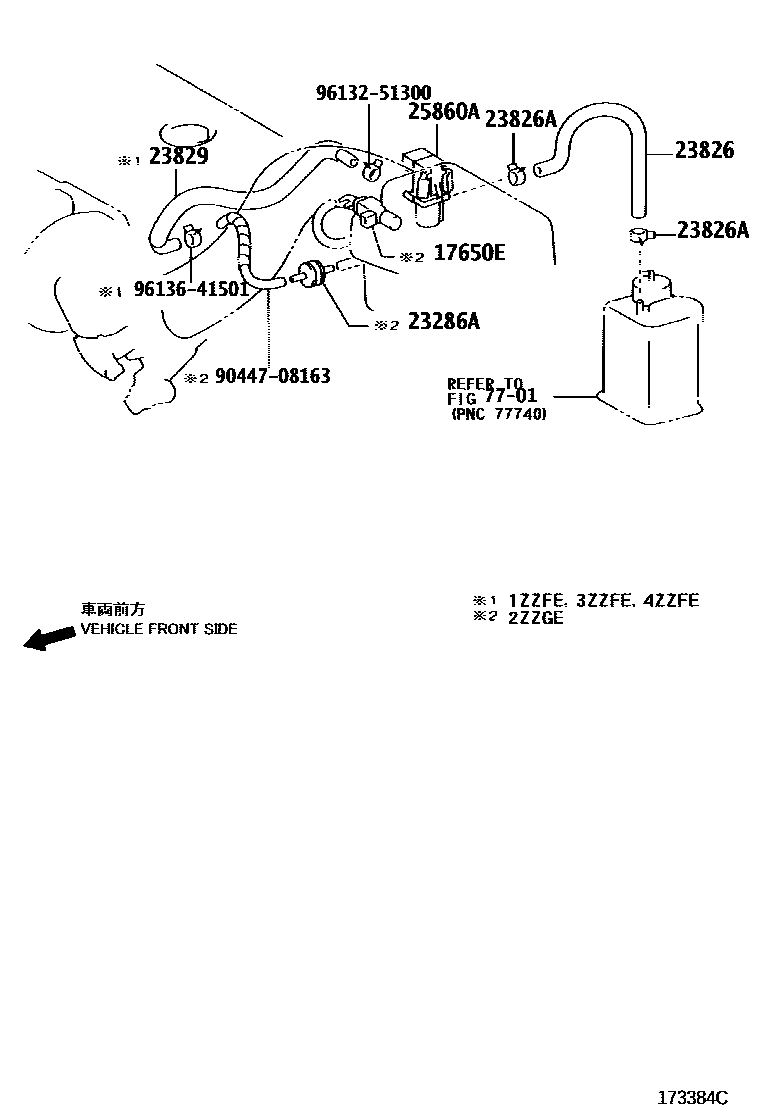

VACUUM PIPING

17650EVALVE, VACUUM SWITCHING

main90910-12089i2ZZGE..ZZE123200210-200406

23286AVALVE, CHECK, NO.2

main90917-10065i2ZZGE..ZZE123200210-200406

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-21030i1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12#200208-200408

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100×2i1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12#200208-200408

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-22050i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200308

main23829-22080i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200308-200408

main23829-22090i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200610-200707

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12257i1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12#200208-200408

7701

9044708163

main90447-08163

9613251300

main96132-51300

9613641501

main96136-41501

10 parts on this diagram · 1 diagram in section
