VENTILATION HOSE

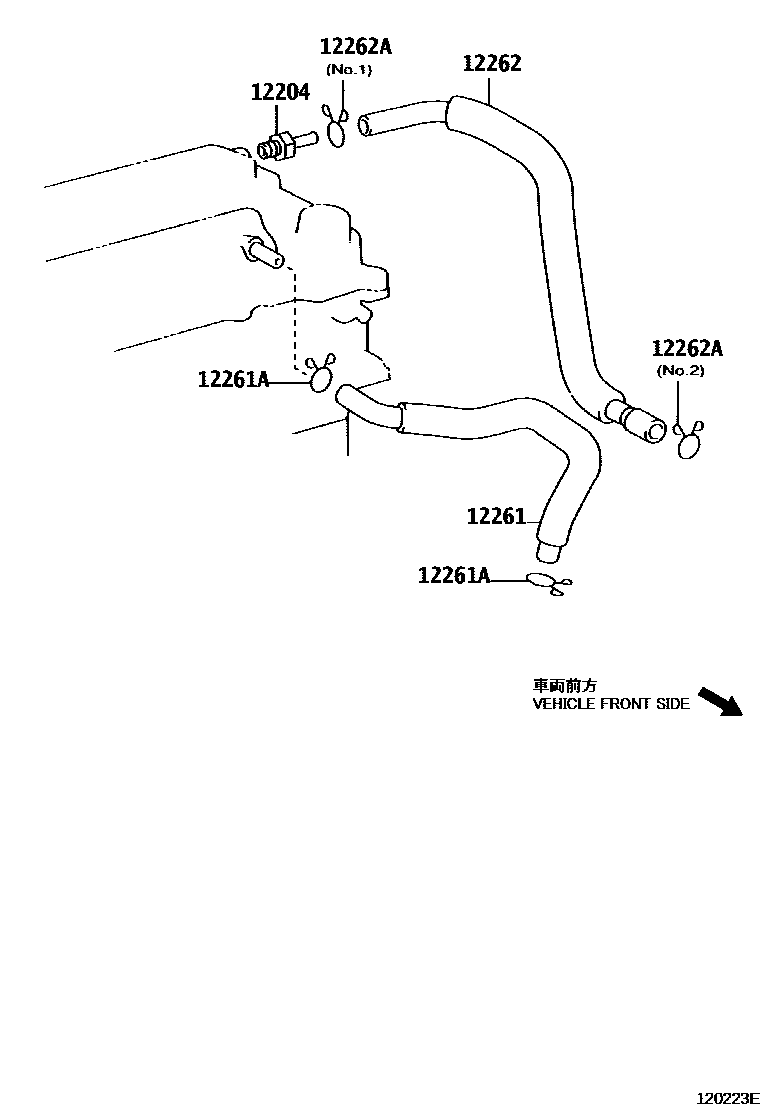

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-22050i200208-200405
sub12204-22051
main12204-22051i200405-200707
main12204-88600i200210-200707
12261HOSE, VENTILATION
main12261-22050i200208-200707
main12261-88601i200210-200707
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-24001i200210-200707
NO.2
main90467-14037i200210-200707
NO.1
main90467-21152i200208-200707
12262HOSE, VENTILATION, NO.2
main12262-22040i200208-200707
main12262-22060i200208-200707
main12262-22090i200305-200707
main12262-88602i200210-200305
sub12262-22090
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i200208-200707
NO.1
main90467-19003i200208-200707
NO.2
main90467-19019i200210-200707
NO.1
main90467-21010i200210-200707
NO.2
main96132-51300i200210-200707
NO.3

5 parts on this diagram · 2 diagrams in section
