ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0F130iZGR2#201106

main86101-0F140iZGR21,22..CVFC..(G,V)201106-201505

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0F110iZGR21,22..CVFC..G201106-201309

AUDIO-NAVIGATION 6SPEAKER BLUETOOTH

main86101-0F120iZGR21,22..V201106-201612

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0F060iZGR2#201106

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0F010iZGR2#201106

86396NUT, ANTENNA

main86396-0D050iZGR2#201211

main86396-47010iZGR2#201106-201210

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906915

main90119-06915

90119C0208

main90119-C0208

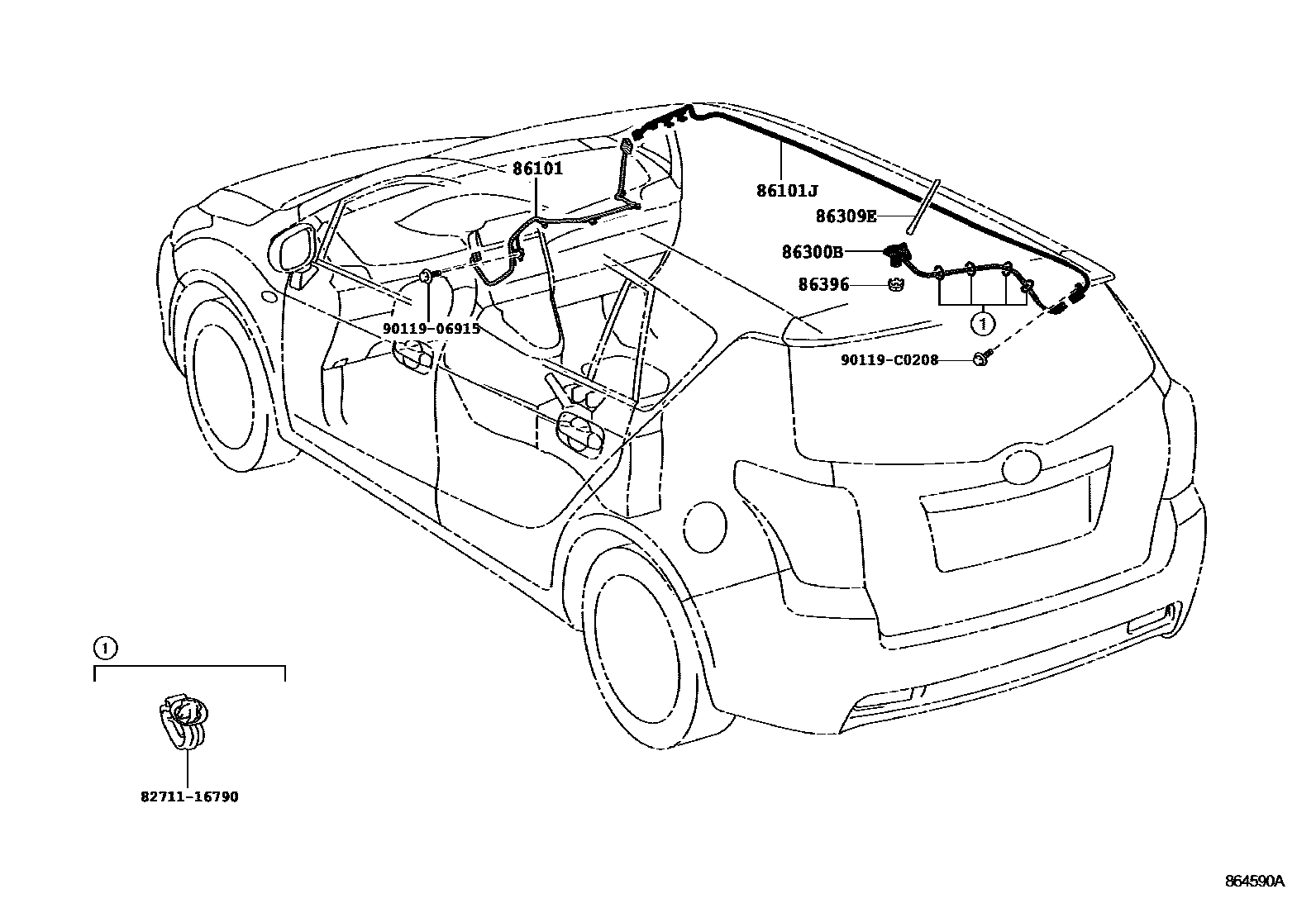

8 parts on this diagram · 1 diagram in section
