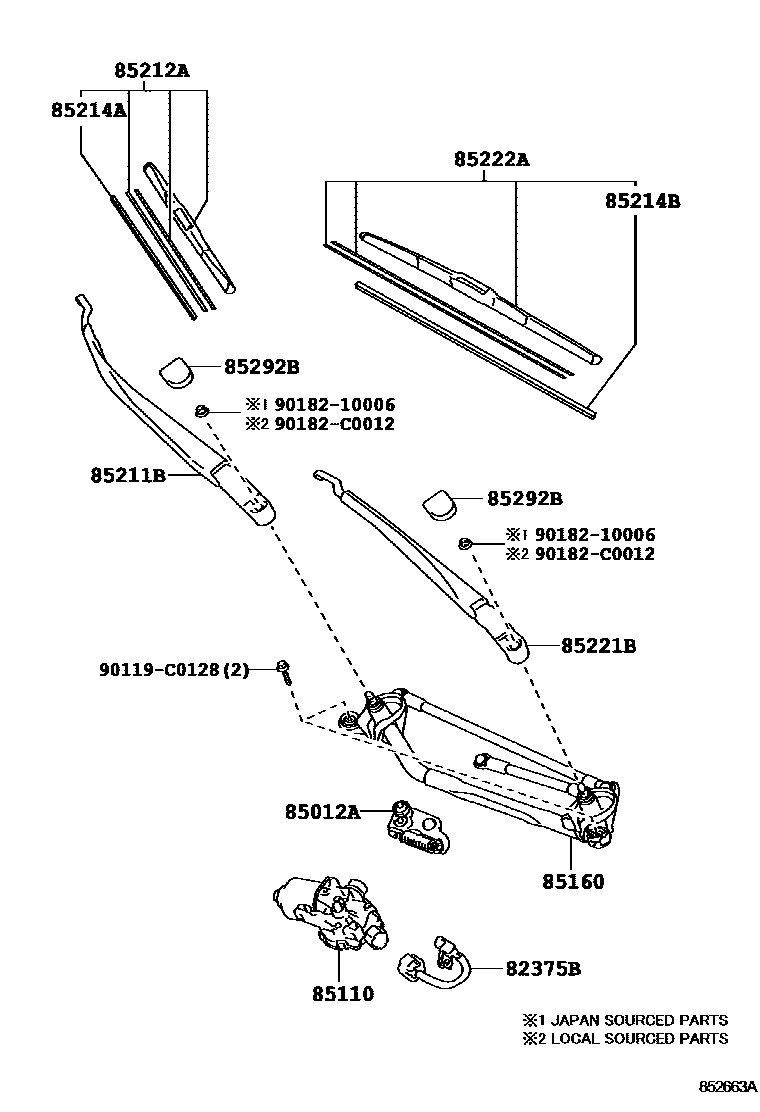

WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-0F020iZGR2#201106

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iZGR2#201106

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0F070iZGR2#201106

85160LINK ASSY, WINDSHIELD WIPER

main85150-0F070iZGR2#201106

85211BARM, FRONT WIPER, RH

main85211-0F050iZGR2#201106

85212ABLADE, FR WIPER, RH

main85212-0F040iZGR2#201106

85214ARUBBER, WIPER, RH

main85214-28090iZGR2#201106

85214BRUBBER, WIPER, LH

main85214-68020iZGR2#201106

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-0F050iZGR2#201106

85222ABLADE, FR WIPER, LH

main85222-0F050iZGR2#201106

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iZGR2#201106

90119C0128

main90119-C0128

9018210006

main90182-10006

90182C0012

main90182-C0012

14 parts on this diagram · 1 diagram in section
