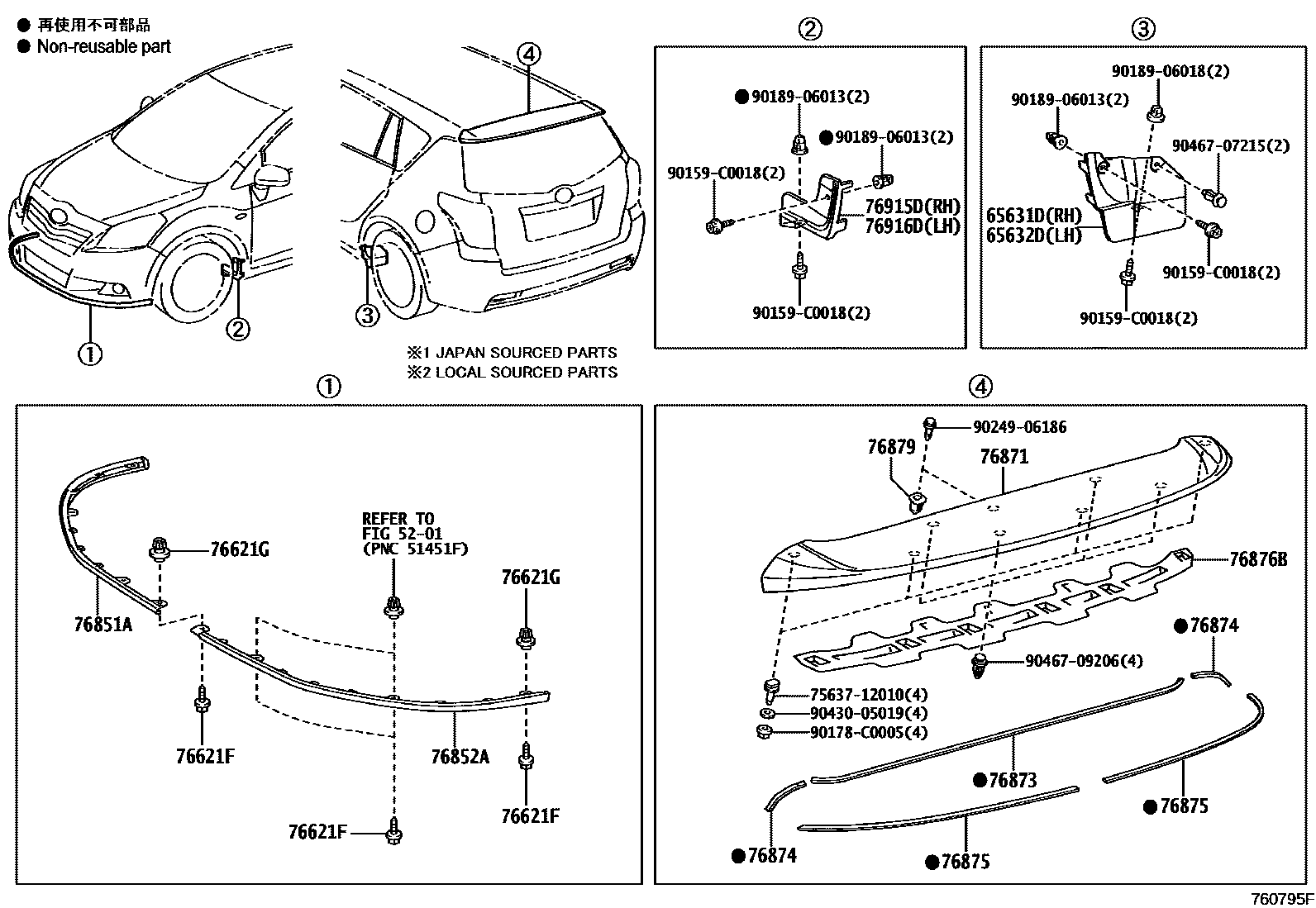

MUDGUARD & SPOILER

5201

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0F030iZGR2#201106

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0F030iZGR2#201106

76621FSCREW, NO.1

main90159-60488iZGR2#¥70201106-201310

main90159-60488iZGR2#¥70201310-201612

(J)

main90159-C0012iZGR2#201310-201612

(L)

76621GGROMMET, NO.1

main90189-05144iZGR2#¥80201106-201612

76851ACOVER, FRONT SPOILER, RH

main76851-0F904iZGR2#201106

76852ACOVER, FRONT SPOILER, LH

main76852-0F904iZGR2#201106

76871SPOILER, REAR

main76871-0F902iZGR2#201106-201612

76873PROTECTOR, REAR SPOILER, NO.2

main76873-0F020iZGR2#201106

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0F020iZGR2#201106

76875PROTECTOR, REAR SPOILER, NO.4

main76875-0F020iZGR2#201106

76876BINSERT, REAR SPOILER

main76876-0F030iZGR2#201106

76879CLIP, REAR SPOILER, NO.1

main90467-09075iZGR2#¥110201106

76915DMUDGUARD, SIDE, FRONT RH

main76915-0F030iZGR2#201106

76916DMUDGUARD, SIDE, FRONT LH

main76916-0F030iZGR2#201106

7563712010

main75637-12010¥120

90159C0018

main90159-C0018

90178C0005

main90178-C0005

9018906013

main90189-06013¥70

9018906018

main90189-06018¥80

9024906186

main90249-06186¥100

9043005019

main90430-05019¥110

9046707215

main90467-07215¥80

9046709206

main90467-09206¥80

24 parts on this diagram · 1 diagram in section
