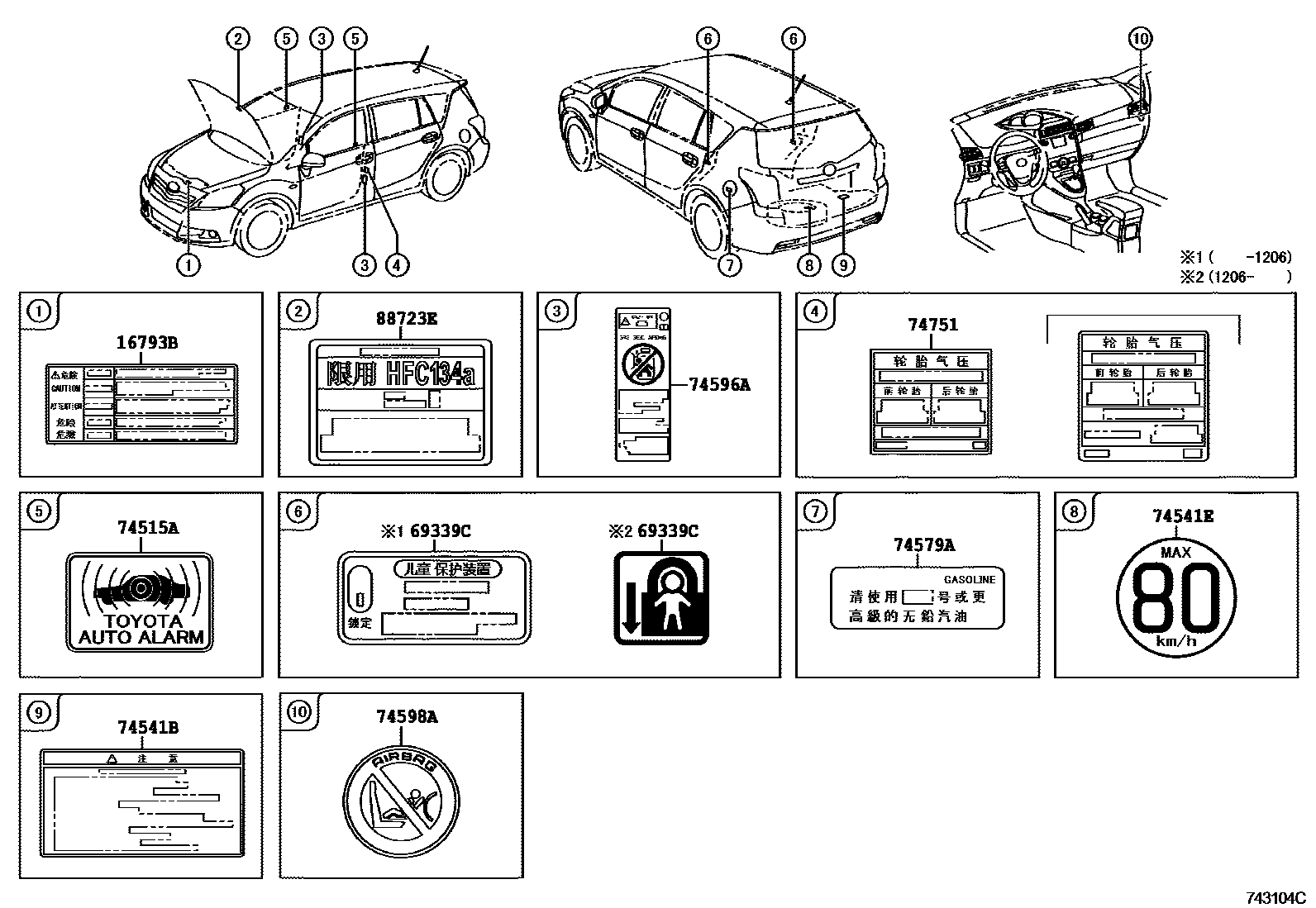

CAUTION PLATE (EXTERIOR & INTERIOR)

16793BLABEL, COOLING FAN INFORMATION

main16793-28020i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106-201612

sub16793-36040

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-06030iZGR2#201106-201206

sub69339-06080

main69339-06080iZGR2#201206

74515APLATE, THEFT WARNING

main74515-06020iZGR2#201106

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-0F010iZGR21,22..07S201106-201203

sub42668-0F011

main42668-0F011iZGR21,22..07S201203-201612

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-20020iZGR21,22..07S201106

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-64010iZGR2#201106-201207

sub74579-64011

main74579-64011iZGR2#201208

74596ALABEL, SIDE AIRBAG CAUTION

main74596-53020iZGR2#201106

74598ALABEL, PASSENGER AIRBAG CAUTION

main74598-06040iZGR2#201106

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0F160iZGR20,21..05S201106

main42661-0F170iZGR21,22..07S201106

88723ELABEL, COOLER SERVICE CAUTION

main88723-0D020iZGR2#201106

10 parts on this diagram · 1 diagram in section
