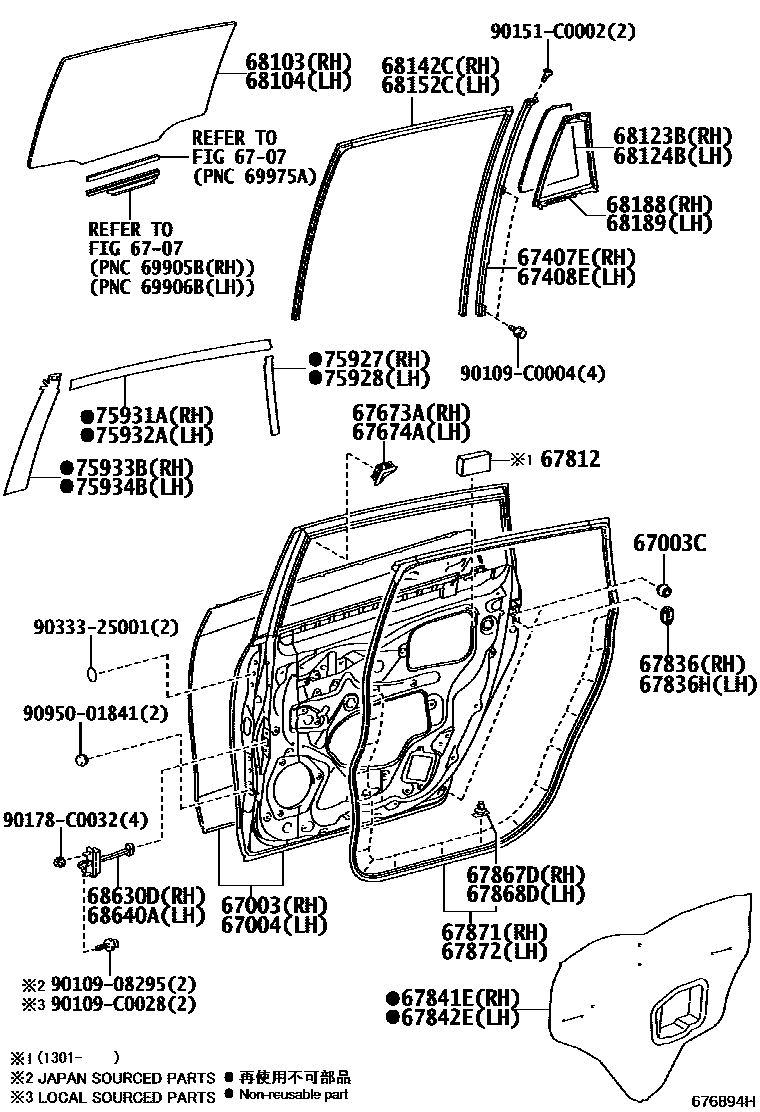

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
6707
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.1,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.1,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TEM,T=3.1,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=3.1,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
75927TAPE, BLACK OUT, NO.4 RH
75928TAPE, BLACK OUT, NO.4 LH
75931ATAPE, BLACK OUT, OUTER UPPER RH
75932ATAPE, BLACK OUT, OUTER UPPER LH
75933BTAPE, BLACK OUT, OUTER FRONT RH
75934BTAPE, BLACK OUT, OUTER FRONT LH
9010908295
main90109-08295
90109C0004
main90109-C0004
90109C0028
main90109-C0028
90151C0002
main90151-C0002
90178C0032
main90178-C0032
9033325001
main90333-25001
9095001841
main90950-01841
40 parts on this diagram · 2 diagrams in section
