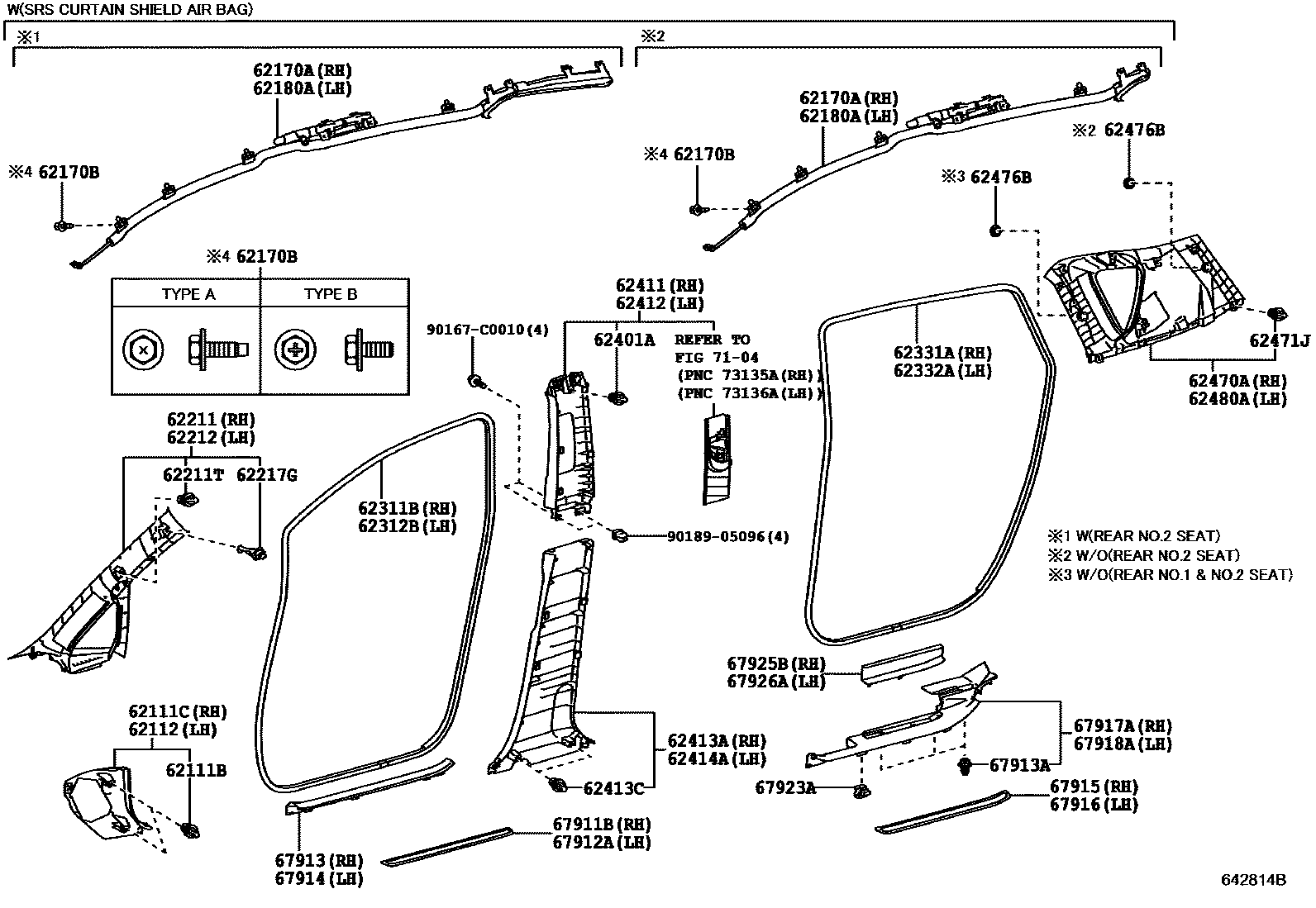

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
ASH BROWN,TRIM4#
62112BOARD, COWL SIDE TRIM, LH
ASH BROWN,TRIM4#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
GREGE,TRIM4#
GREGE,TRIM4#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
GREGE,TRIM4#
GREGE,TRIM4#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
DK.GRAY,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
DK.GRAY,TRIM4#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
DK.GRAY,TRIM4#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
DK.GRAY,TRIM4#
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
GREGE,TRIM4#
62412GARNISH, CENTER PILLAR, LH
GREGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
ASH BROWN,TRIM4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
ASH BROWN,TRIM4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
GREGE,TRIM4#
GREGE,TRIM4#
62471JCLIP (FOR ROOF SIDE GARNISH)
62476BCAP, ROOF SIDE INNER GARNISH, NO.1
GREGE,TRIM4#
62480AGARNISH ASSY, ROOF SIDE, INNER LH
GREGE,TRIM4#
GREGE,TRIM4#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
ASH BROWN,TRIM4#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
ASH BROWN,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
ASH BROWN,TRIM4#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
ASH BROWN,TRIM4#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
ASH BROWN,TRIM4#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
ASH BROWN,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
ASH BROWN,TRIM4#
67918APLATE, REAR DOOR SCUFF, LH
ASH BROWN,TRIM4#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
67925BPANEL, REAR DOOR SCUFF, RH
ASH BROWN,TRIM4#
67926APANEL, REAR DOOR SCUFF, LH
ASH BROWN,TRIM4#
7104
90167C0010
main90167-C0010
9018905096
main90189-05096
39 parts on this diagram · 1 diagram in section
