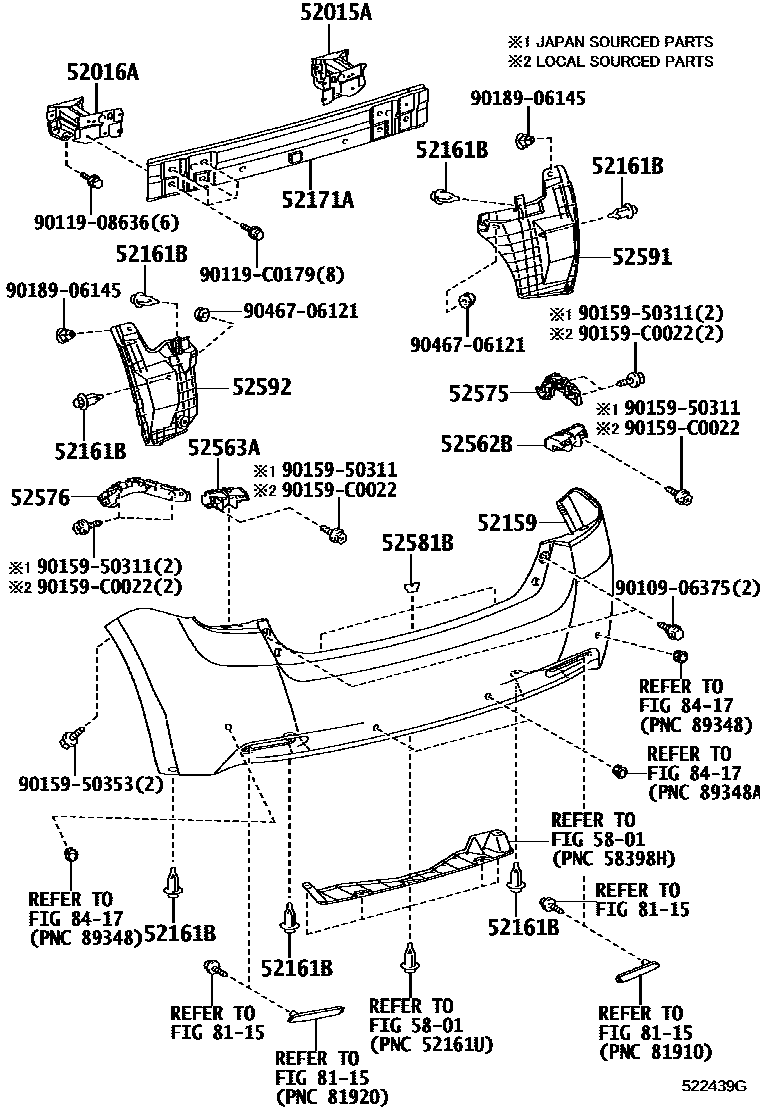

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-0F030iZGR2#201106

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-0F030iZGR2#201106

52159COVER, REAR BUMPER

main52159-0F909iZGR20,21..E201106-201612

PAINT REQ.

main52159-0F910iZGR22;ZGR21..V201106-201612

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040iZGR2#201307

(L)

main52161-16010iZGR2#201307

(J)

sub52161-0K040

main52161-16010iZGR2#201106-201307

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-0F020iZGR2#201106

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-0F030iZGR2#201106

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-0F030iZGR2#201106

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0F030iZGR2#201106

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0F030iZGR2#201106

52581BPROTECTOR, REAR BUMPER

main52581-0F010iZGR2#201106

52591SEAL, REAR BUMPER SIDE, RH

main52591-0F020iZGR2#201106

52592SEAL, REAR BUMPER SIDE, LH

main52592-0F020iZGR2#201106

5801

8115

8417

9010906375

main90109-06375

9011908636

main90119-08636

90119C0179

main90119-C0179

9015950311

main90159-50311

9015950353

main90159-50353

90159C0022

main90159-C0022

9018906145

main90189-06145

9046706121

main90467-06121

23 parts on this diagram · 1 diagram in section
