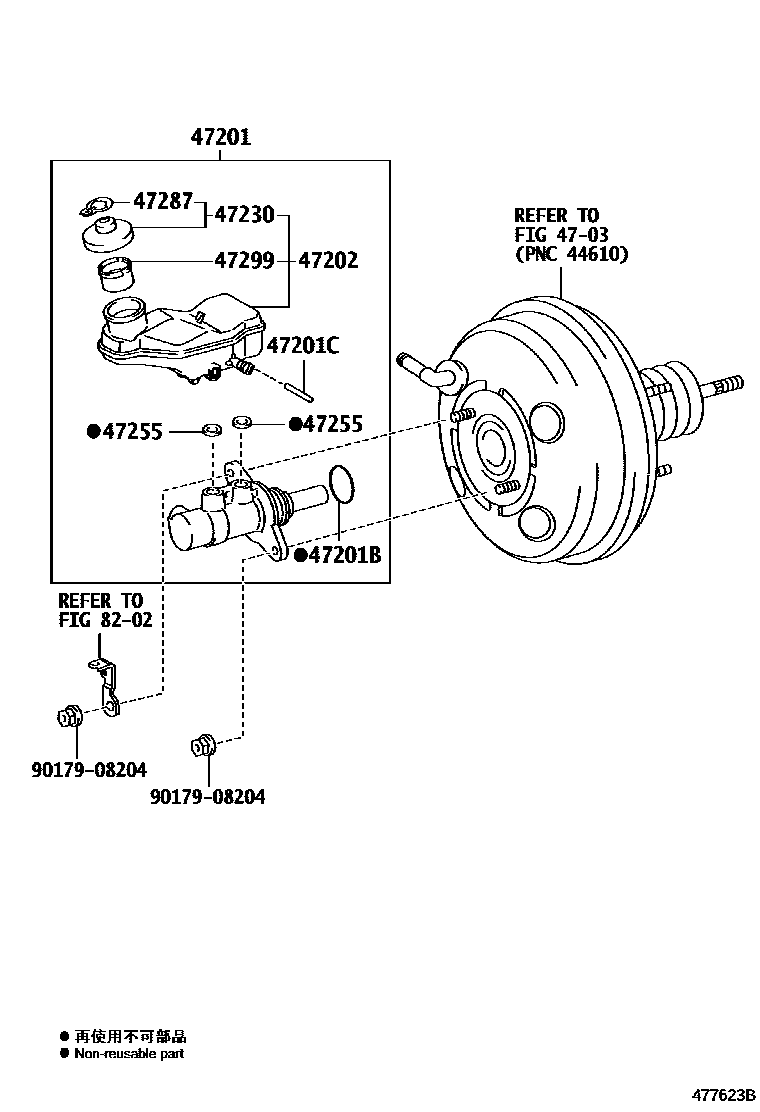

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02500iZGR2#201106-201203

main47201-02501iZGR2#201204-201205

main47201-02502iZGR2#201205-201211

main47201-02820iZGR21..CVFC201503

main47201-02830iZGR2#..6F201503

main47201-0F160iZGR20,21..6F201211-201502

main47201-0F170iZGR21,22..CVFC201211-201502

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZGR2#201204-201205

main90016-AH902iZGR21..CVFC201503

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iZGR2#201106

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02260iZGR2#201106-201211

main47220-02400iZGR21..CVFC201503

main47220-02410iZGR2#..6F201503

main47220-0F060iZGR20,21..6F201211-201503

main47220-0F070iZGR21,22..CVFC201211-201503

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02260iZGR2#201106-201507

main47230-0R030iZGR2#201507

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002×2iZGR21..CVFC201503

main90029-48001×2iZGR2#201204-201205

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iZGR2#201507-201612

main47287-20010iZGR2#201106-201507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iZGR2#201106

8202

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
