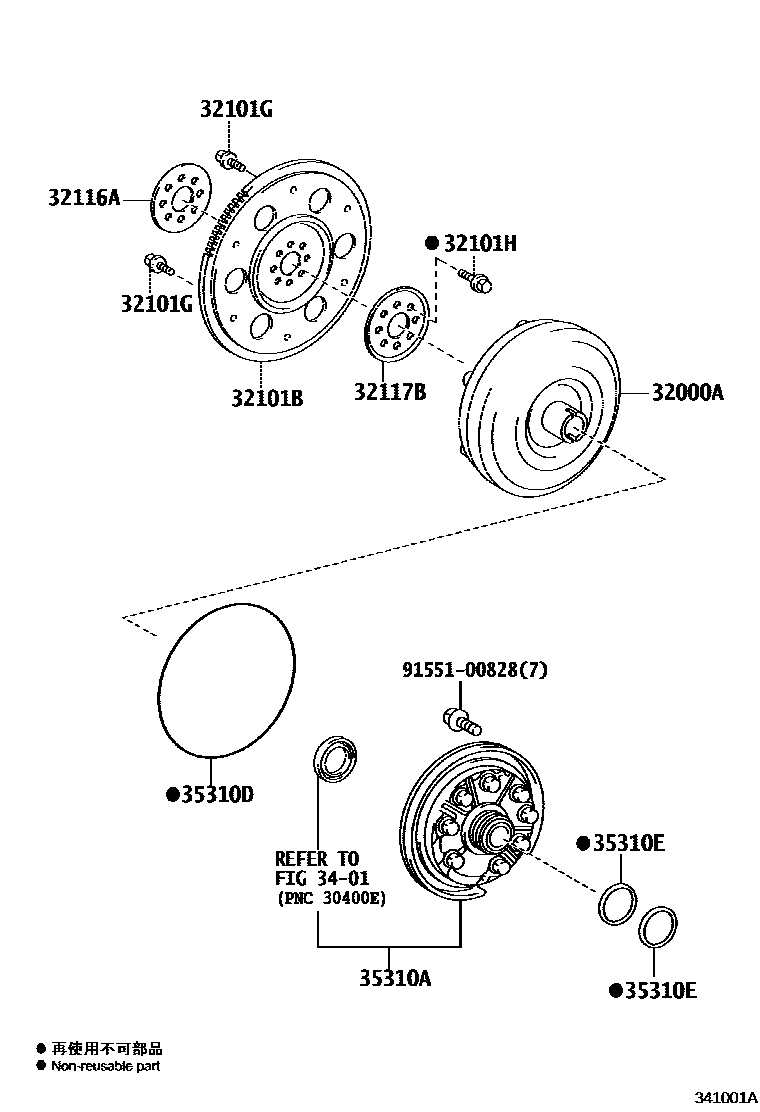

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K311 0002 1K111

32000ACONVERTER ASSY, TORQUE

main32000-12400iZGR21..CVFC201106-201612

main32000-28180iZGR22201106-201309

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D030iZGR21..CVFC201106-201612

(L)

main32101-12100iZGR21..CVFC201106-201612

(J)

main32101-28050iZGR22201106-201309

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZGR21..CVFC201106-201612

*8-1.25PX12-8.4,BLACK

main90109-09001iZGR22201106-201309

*9-1.25PX12.4-7.3,BLACK

main90119-08498iZGR21..CVFC201106-201612

*8-1.25PX12-8,YELLOW

main90119-09025iZGR22201106-201309

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZGR21,22..CVFC201106-201612

32116ASPACER, DRIVE PLATE, FRONT

main32116-02020iZGR21..CVFC201106-201612

main32116-12030iZGR22201106-201309

32117BSPACER, DRIVE PLATE, REAR

main32117-02020iZGR21..CVFC201106-201612

main32117-12040iZGR22201106-201309

3401

35310APUMP ASSY, FRONT OIL

main35310-12121iZGR21..CVFC201106-201612

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99133iZGR21..CVFC201106-201612

sub90301-99202

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12030iZGR21..CVFC201106-201611

main35617-12031iZGR21..CVFC201611-201612

9155100828

main91551-00828

11 parts on this diagram · 2 diagrams in section
