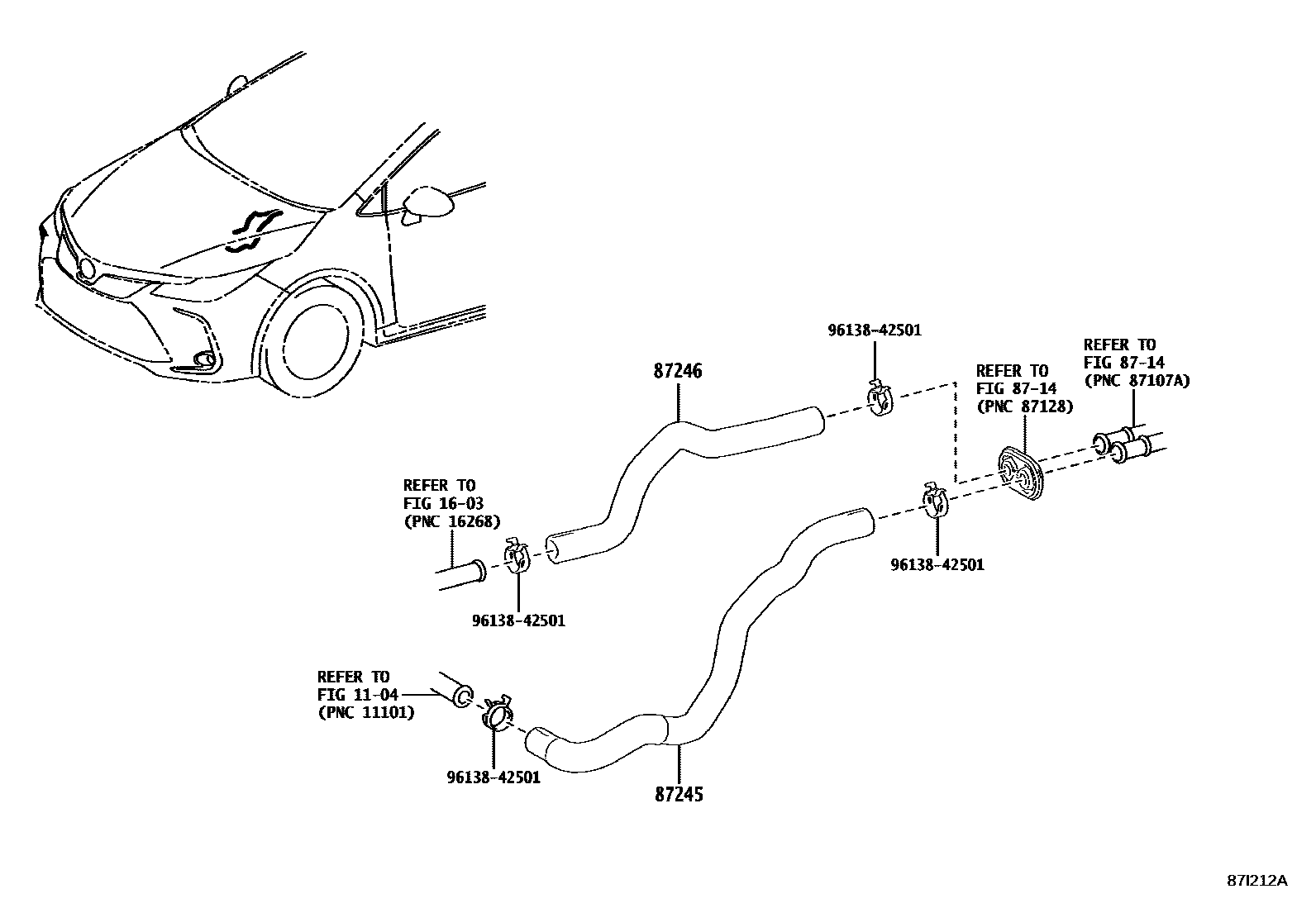

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1104

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-12640iMZEA12201909-202201

main87245-02T40iZRE210..CVT202309-202412

main87245-02T90iZWE211202201-202309

main87245-02W00iZRE210..6F201909-202201

87246HOSE, HEATER WATER, OUTLET

main87209-12710iMZEA12201909-202201

main87245-02T50iZRE210..6F202309

main87245-02U00iZWE211202412

main87245-12G40iZRE210..CVT202309-202412

9613842501

main96138-42501

6 parts on this diagram · 4 diagrams in section
