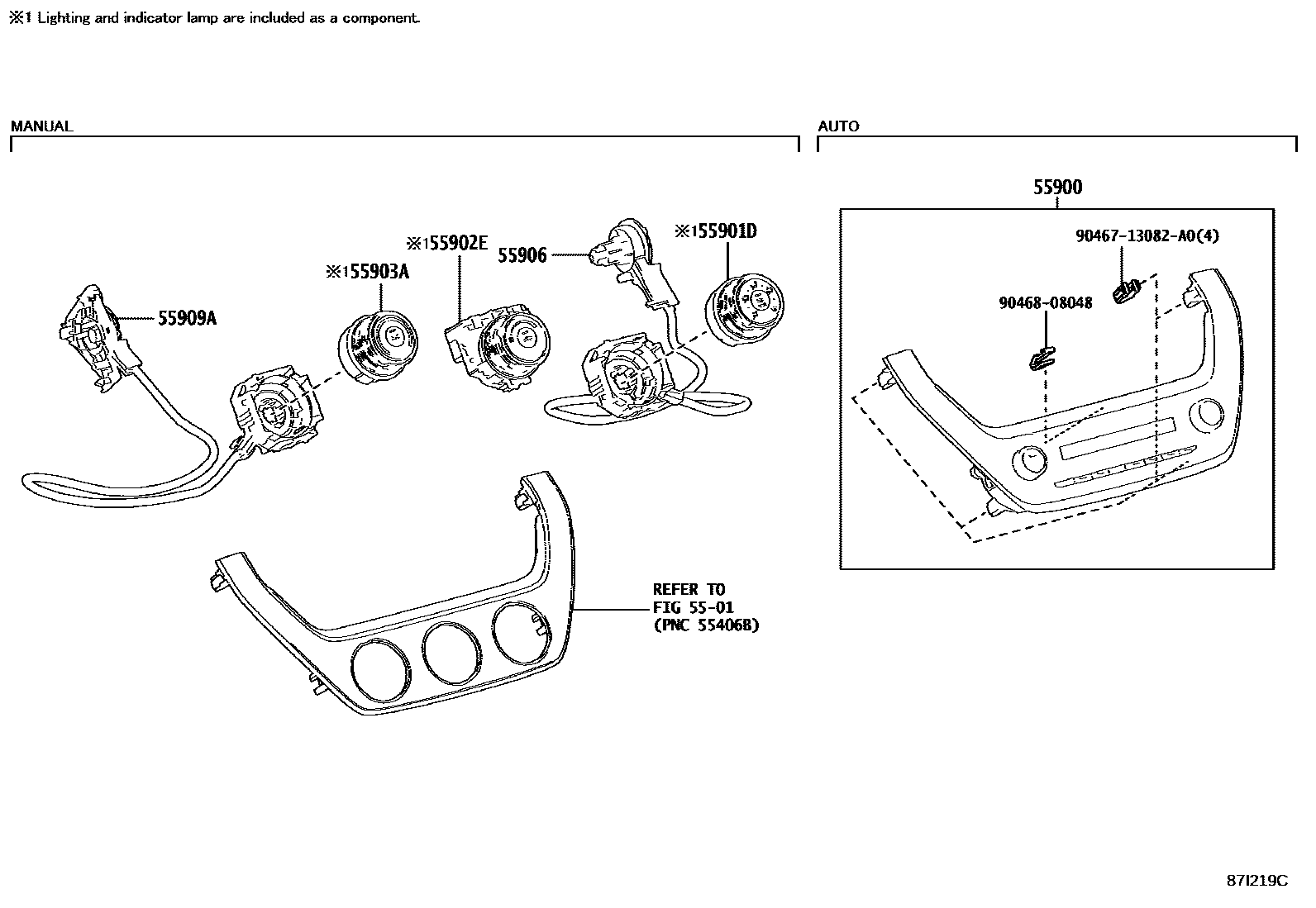

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-02J60-B0iMZEA12,ZRE210..N..GEN202201-202309

SILVER,TRIM2#

main55900-02J60-B1iMZEA12..N..BZ202201-202309

SMOKE SILVER METALLIC,TRIM20

main55900-02J70-B0iZWE211..N..GEN201909-202201

SILVER,TRIM0#,1#,2#

main55900-02J80-B0iMZEA12..6F..N..AGT202201-202309

SILVER,TRIM2#

main55900-02J80-B1iMZEA12..CVT..N..AGT202102-202201

SMOKE SILVER METALLIC,TRIM20

main55900-02J90-B0iMZEA12..E..AGT201909-202201

SILVER,TRIM0#,1#,2#

main55900-02K00-B0iZWE211..E..(BZ,GEN)201909-202201

SILVER,TRIM0#,1#,2#

main55900-02K10-B0iZWE211..E..AGT201909-202201

SILVER,TRIM0#,1#,2#

main55900-02N70-B0iMZEA12,ZWE211..E..GEN;MZEA12,ZWE211..N..AGT202309-202412

SILVER,TRIM2#

main55900-02N80-B0iMZEA12..N..(BZ,GEN)202309-202412

SMOKE SILVER METALLIC,TRIM20

main55900-02N80-B1iMZEA12..N..(BZ,GEN)202309-202412

SILVER,TRIM2#

main55900-02N90-B1iMZEA12,ZWE211..E..AGT202309-202412

SILVER,TRIM2#

main55900-02N70-B1iMZEA12..N..BZ202412

GR SPORT&BLIND SPOT MONITOR-WITH,DK.SILVER,TRIM2#

main55900-02N90-B0iMZEA12..N..AGT202309-202412

GR SPORT,SMOKE SILVER METALLIC,TRIM2#

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-12280iMZEA12..D202412

UP GRADE PACKAGE

main55901-26230iMZEA12,ZRE210..D202201-202309

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-12410iMZEA12..D..BZ202309-202412

UP GRADE PACKAGE

main55902-26150iMZEA12,ZRE210..D202201-202309

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12380iMZEA12..D202412

UP GRADE PACKAGE

main55903-12390iMZEA12,ZRE210..D202201-202309

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-26090iMZEA12,ZRE210..D201909-202009

main55906-26091iMZEA12..D..BZ202309-202412

UP GRADE PACKAGE

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26140iMZEA12,ZRE210..D201909-202009

main55909-26141iMZEA12,ZRE210..D202010-202201

9046713082A0

main90467-13082A0

9046808048

main90468-08048

9 parts on this diagram · 3 diagrams in section
