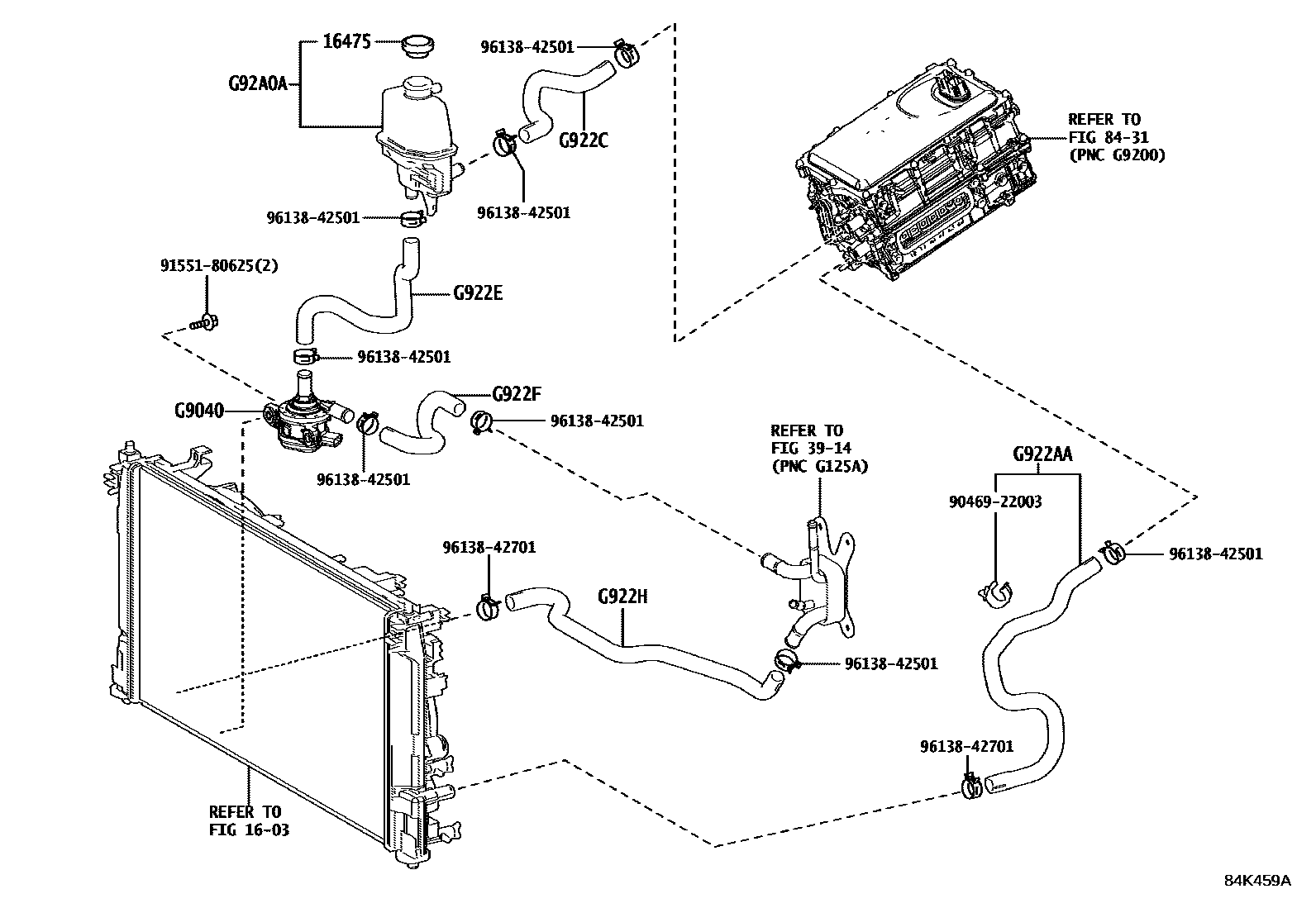

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140i2ZR#..ZWE211201909-202201

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047040iZWE211201909-202201

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A47010iZWE211201909-202201

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C47010iZWE211201909-202201

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E47010iZWE211201909-202201

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F47010iZWE211201909-202201

G922HHOSE, HYBRID RADIATOR INLET

mainG922H47010iZWE211201909-202201

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H002080iZWE211201909-202201

9046922003

main90469-22003

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

15 parts on this diagram · 1 diagram in section
