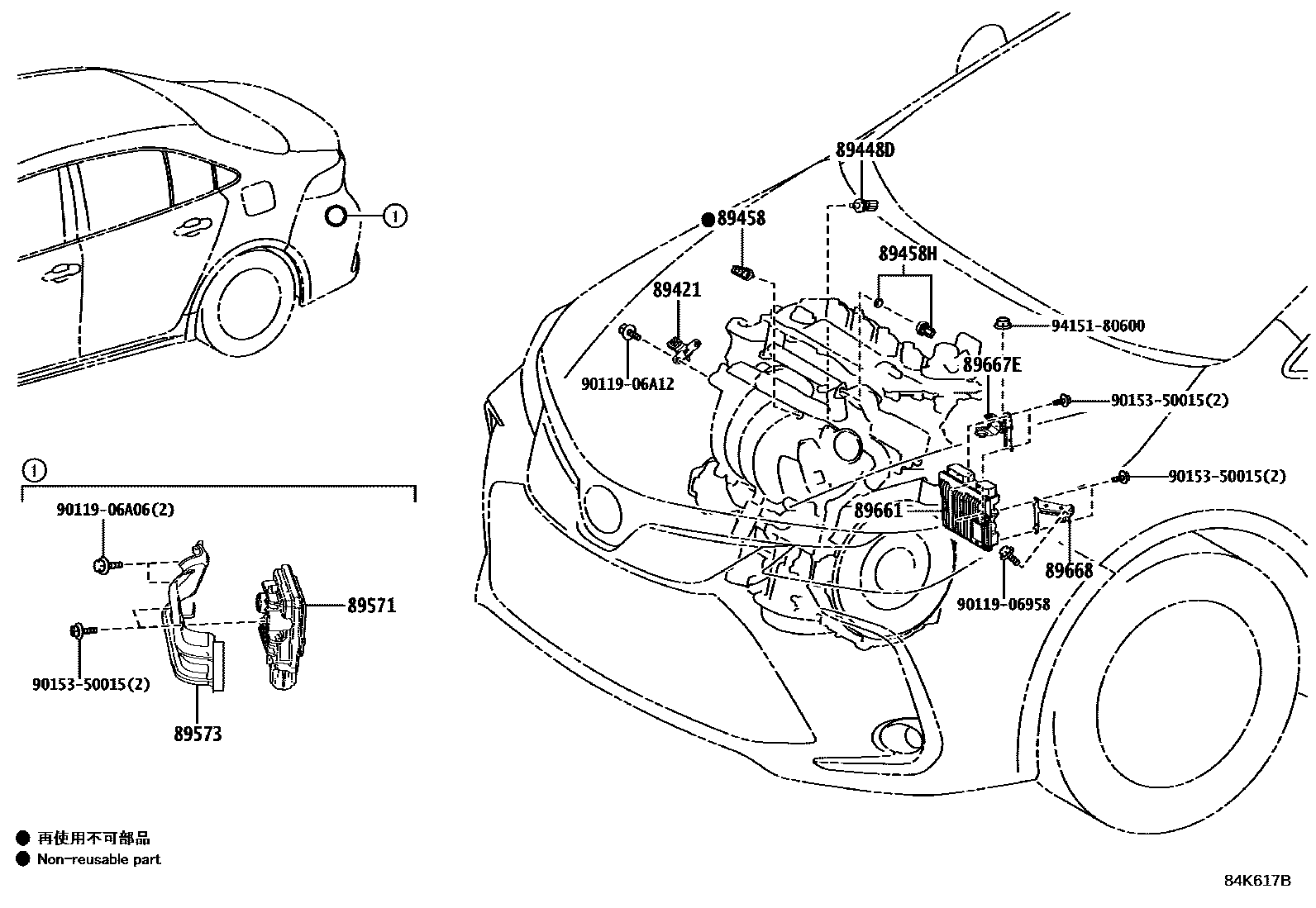

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE210,ZWE211201909-202412

main89421-33010iMZEA12201909-202412

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMZEA12201909-202412

89458SENSOR, FUEL PRESSURE

main89458-33030iMZEA12201909-202412

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMZEA12201909-202301

main89458-33042iMZEA12202302-202412

89571COMPUTER, FUEL PUMP CONTROL

main89571-12010iMZEA12..BZ201909-202208

main89571-33030iMZEA12..AGT,GEN201909-202309

main89571-42010iMZEA12..AGT,GEN202309-202412

main89571-48010iMZEA12..BZ202209-202309

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-02050iMZEA12..BZ201909-202208

main89573-12120iMZEA12..AGT,GEN201909-202412

89661COMPUTER, ENGINE CONTROL

main89661-0A410iZWE211..AGT;ZWE211..D..GEN202204-202412

DENSO

main89661-0A410iZWE211..(E,N)..GEN202204-202412

DENSO,COLOMBIA SPEC

main89661-0A560iZWE211..AGT;ZWE211..D..GEN202412

DENSO,COLOMBIA SPEC

main89661-0A560iZWE211..AGT;ZWE211..D..GEN202412

DENSO

main89661-0A570iZWE211..(E,N)..GEN202412

DENSO

main89661-0A570iZWE211..D..GEN202412

DENSO,CHILE SPEC

main89661-0ZY20iZWE211..BZ202201-202412

DENSO

main89666-02540iZWE211..BZ201909-202201

DENSO

main89666-02550iZWE211..AGT;ZWE211..D..GEN201909-202204

DENSO

main89666-02550iZWE211..AGT;ZWE211..D..GEN202201-202204

DENSO,COLOMBIA SPEC

main89666-02560iZWE211..AGT201909-202412

DENSO

main89666-02560iZWE211..(E,N)..GEN201909-202309

DENSO,URUGUAY SPEC

main89666-02560iZWE211..D..GEN202309-202412

DENSO,CHILE SPEC

main89666-02570iMZEA12..BZ201909-202201

DENSO

main89666-02580iMZEA12..CVT..GEN202201-202309

DENSO,COLOMBIA SPEC

main89666-02580iMZEA12..CVT..GEN201909-202309

DENSO

main89666-02590iMZEA12..CVT..(E,N)..AGT201909-202309

DENSO

main89666-02590iMZEA12..CVT..GEN201909-202309

DENSO,URUGUAY SPEC

main89666-02600iMZEA12..6F..AGT201909-202309

DENSO

main89666-02600iMZEA12..6F..GEN202201-202309

DENSO,COLOMBIA SPEC

main89666-02610iMZEA12..6F..GEN201909-202309

DENSO

main89666-02610iMZEA12..6F..GEN201909-202309

DENSO,URUGUAY SPEC

main89666-02620iZRE210..CVT201909-202104

DENSO

sub89666-02621

main89666-02621iZRE210..CVT202105-202412

DENSO

main89666-02630iZRE210..6F201909-202107

DENSO

sub89666-02631

main89666-02631iZRE210..6F202108-202309

DENSO

main89666-02A60iMZEA12..BZ201909-202201

DENSO,PARAGUAY SPEC

main89666-02A80iZWE211..E..BZ201909-202201

DENSO,PARAGUAY SPEC

main89666-02C60iMZEA12..BZ202201-202309

DENSO

main89666-02F30iMZEA12..BZ202309-202412

DENSO

main89666-02F40iMZEA12..(D,N)..AGT;MZEA12..E..(AGT,GEN)202309-202412

DENSO,COLOMBIA SPEC

main89666-02F40iMZEA12..(D,N)..GEN202309-202412

DENSO

main89666-02F50iMZEA12..E..GEN202309-202412

DENSO,BOLIVIA SPEC

main89666-02F50iMZEA12..E..GEN202309-202412

DENSO

main89666-02K30iMZEA12..BZ202412

DENSO

main89666-02K40iMZEA12..AGT202412

DENSO

main89666-02K50iMZEA12..GEN202412

DENSO

main89666-02K80iZWE211..BZ202412

DENSO

main89666-02L20iMZEA12..N..BZ202412

DENSO,GR SPORT

main89666-02L30iMZEA12..N..(AGT,GEN)202412

DENSO,GR SPORT

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02630iMZEA12201909-202412

main89667-12360iZRE210201909-202412

main89667-12370iZWE211201909-202412

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02460iMZEA12201909-202412

main89668-12290iZRE210201909-202412

main89668-47050iZWE211201909-202412

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A12

main90119-06A12

9015350015

main90153-50015

9415180600

main94151-80600

14 parts on this diagram · 3 diagrams in section
