84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iMZEA12,ZRE210..6F201909-202309

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZEA12..CVT201909-202412

main84540-52070iZRE210..CVT201909-202412

84545SWITCH, NEUTRAL POSITION

main84545-52010iMZEA12..6F201909-202201

89419BSENSOR, SHIFT STROKE

main89419-12011iMZEA12..CVT201909-202412

main89419-K2010iMZEA12202412

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA12201909-202412

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iZWE211201909-202412

main89451-42010iMZEA12202412

89467BSENSOR, AIR FUEL RATIO

main89467-12260iZRE210201909-202412

main89467-12280iMZEA12201909-202412

main89467-12340iZWE211..BZ201909-202412

main89467-47030iZWE211..AGT,GEN201909-202412

main89467-47040iMZEA12202412

89467CSENSOR, AIR FUEL RATIO, NO.2

main89465-47090iZWE211201909-202412

main89467-12290iMZEA12201909-202412

main89467-12330iMZEA12202412

89491SENSOR, ENGINE OIL LEVEL

main89491-28090iZWE211202104-202204

sub89491-28091

main89491-28091iZWE211202205-202412

main89491-33051iMZEA12201909-202204

sub89491-33052

main89491-33052iMZEA12202205-202412

main89491-47011iZWE211201909-202103

sub89491-28090

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-12100iMZEA12..BZ201909-202201

main89535-12160iMZEA12..CVT..AGT202201-202309

COLOMBIA SPEC

main89535-12160iMZEA12..CVT..AGT201909-202201

main89535-12170iMZEA12..CVT..GEN201909-202309

URUGUAY SPEC

main89535-12390iMZEA12..BZ202201-202309

main89535-12420iMZEA12..BZ202309-202412

main89535-12430iMZEA12..(D,N)..AGT;MZEA12..E..(AGT,GEN)202309-202412

COLOMBIA SPEC

main89535-12440iMZEA12..(D,N)..GEN202309-202412

BOLIVIA SPEC

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMZEA12..CVT201909-202412

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMZEA12..CVT201909-202412

89615SENSOR, KNOCK CONTROL

main89615-20090iZWE211202209-202412

MARK 89615-20090

main89615-20090iMZEA12,ZRE210,ZWE211201909-202309

main89615-78010iMZEA12202209-202412

MARK 89615-78010

827150Z400BRACKET,WIRING HARNESS CLAMP

main82715-0Z400

827150Z410BRACKET,WIRING HARNESS CLAMP

main82715-0Z410

827150Z420BRACKET,WIRING HARNESS CLAMP

main82715-0Z420

827150Z430BRACKET,WIRING HARNESS CLAMP

main82715-0Z430

8272920040

main82729-20040

9011906A12

main90119-06A12

9011906A23

main90119-06A23

9015350015

main90153-50015

9043018008

main90430-18008

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

9167380616

main91673-80616

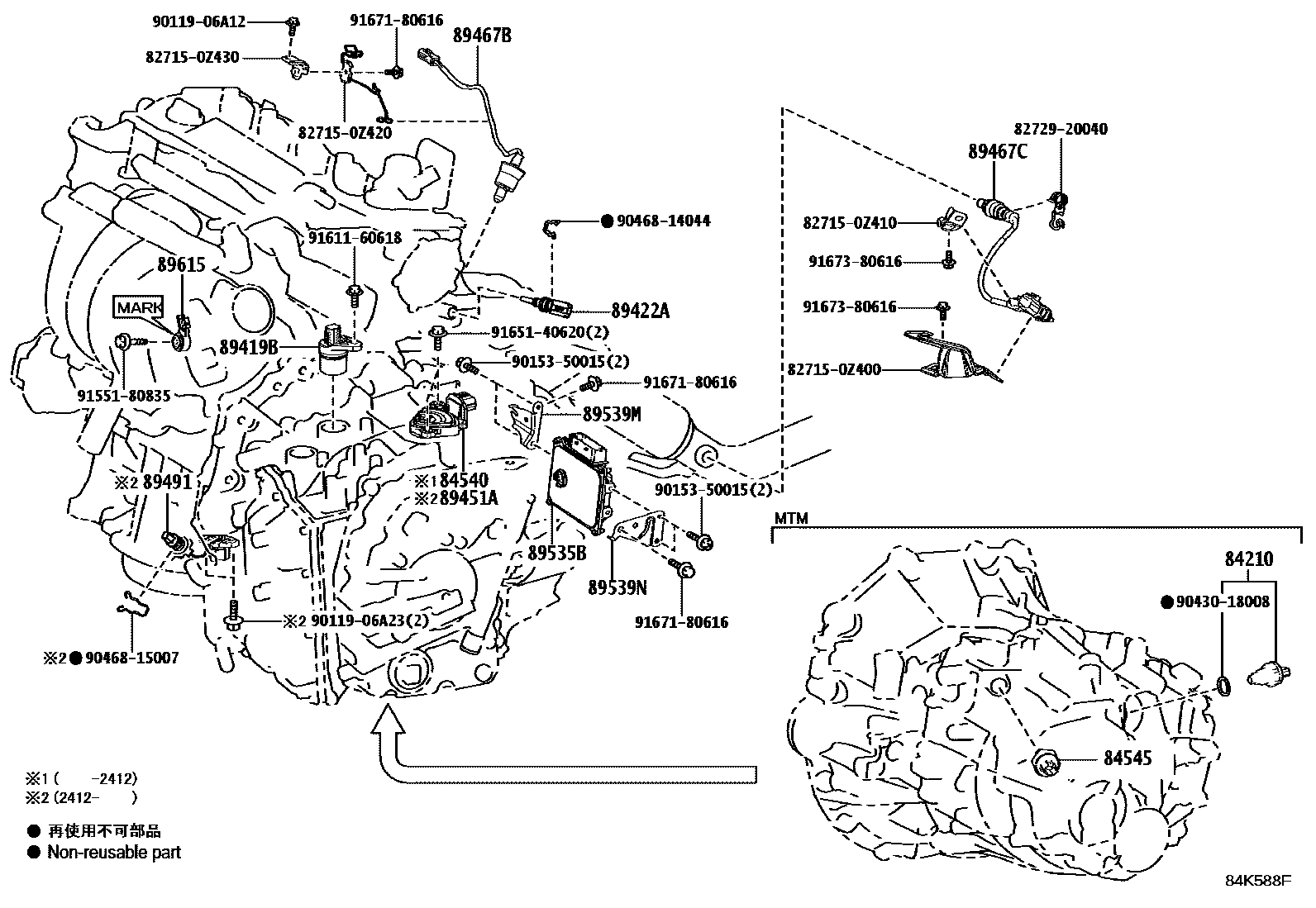

29 parts on this diagram · 14 diagrams in section
