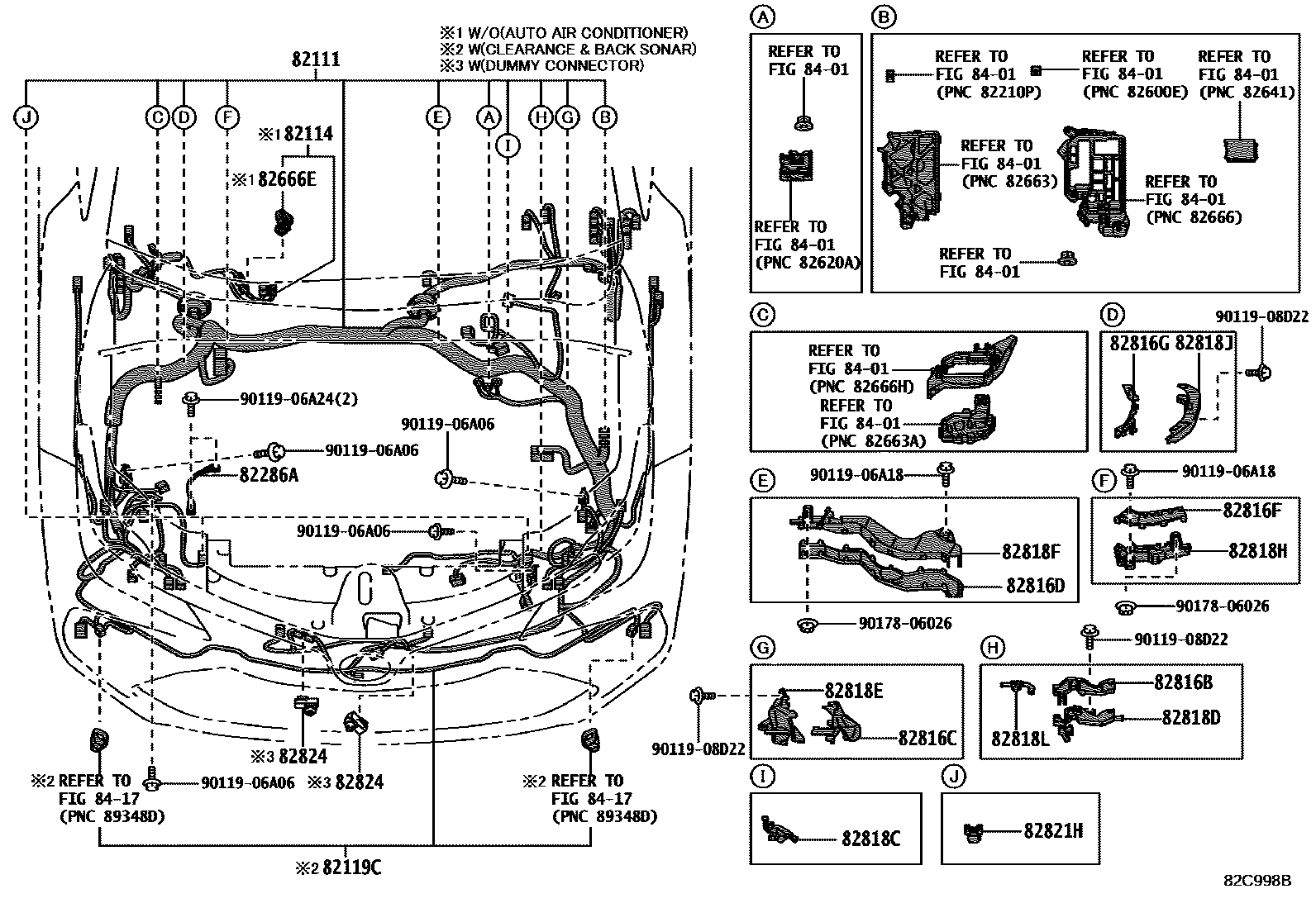

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1FLOOR & ROOF 0011 1HIGH TENSION CABLE 0012 1SEAT 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CONNECTOR 1/2 0016 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-FE010iZRE210..6F..N202309

main82111-FE050iZRE210..6F..N202201-202309

main82111-FE060iZRE210..CVT..N202201-202309

main82111-FE070iMZEA12..6F..D202201-202309

main82111-FE080iMZEA12..CVT..D..AGT202201-202309

main82111-FE090iZRE210..6F..D202201-202309

main82111-FE100iZRE210..CVT..D202201-202309

main82111-FER40iZWE211..(E,N)..BZ202412

main82111-FER50iZWE211..(E,N)..(AGT,GEN)202412

main82111-FER60iMZEA12..(E,N)..(AGT,GEN)202412

main82111-FER70iZWE211..D..BZ202412

main82111-FER90iMZEA12..E..BZ202412

main82111-FES00iMZEA12..D..(AGT,GEN)202412

main82115-F2120iZWE211..(E,N)..BZ201909-202102

main82115-F2121iZWE211..(E,N)..BZ202102-202201

main82115-F2140iZWE211..AGT,GEN201909-202102

main82115-F2141iZWE211..AGT,GEN202102-202201

main82115-F2150iMZEA12..6F..N201909-202102

main82115-F2151iMZEA12..6F..N202102-202201

main82115-F2170iMZEA12..CVT..(E,N)..(AGT,GEN)201909-202102

main82115-F2171iMZEA12..CVT..(E,N)..(AGT,GEN)202102-202201

main82115-F2210iZRE210..6F..N201909-202102

main82115-F2211iZRE210..6F..N202102-202201

main82115-F2220iZRE210..CVT..N201909-202102

main82115-F2221iZRE210..CVT..N202102-202201

main82115-F2240iZWE211..D201909-202102

main82115-F2241iZWE211..D202102-202201

main82115-F2270iMZEA12..E..BZ201909-202102

main82115-F2271iMZEA12..E..BZ202102-202201

main82115-F2J90iMZEA12..6F..D201909-202102

main82115-F2J91iMZEA12..6F..D202102-202201

main82115-F2K00iMZEA12..CVT..D..AGT201909-202102

main82115-F2K01iMZEA12..CVT..D..AGT202102-202201

main82115-F2K10iZRE210..6F..D201909-202102

main82115-F2K11iZRE210..6F..D202102-202201

main82115-F2K20iZRE210..CVT..D201909-202102

main82115-F2K21iZRE210..CVT..D202102-202201

main82115-F2V00iZWE211..(E,N)..BZ202201-202309

main82115-F2V10iZWE211..(E,N)..(AGT,GEN)202201-202309

main82115-F2V20iMZEA12..6F..N202201-202309

main82115-F2V30iMZEA12..CVT..(E,N)..(AGT,GEN)202201-202309

main82115-F2V50iMZEA12..E..BZ202201-202309

main82115-F2Y60iZWE211..(E,N)..BZ202309-202412

main82115-F2Y70iZWE211..(E,N)..(AGT,GEN)202309-202412

main82115-F2Y80iMZEA12..(E,N)..(AGT,GEN)202309-202412

main82115-F2Y90iZRE210..CVT..N202309-202412

main82115-F2Z00iZWE211..D..BZ202309-202412

main82115-F2Z20iMZEA12..E..BZ202309-202412

main82115-F2Z30iMZEA12..D..(AGT,GEN)202309-202412

main82115-F2Z40iZRE210..6F..D202309

main82115-F2Z50iZRE210..CVT..D202309-202412

main82116-0ZZ21iZWE211..D..BZ202201-202309

main82111-F2310supersedes 82115-F2Y30iZWE211..D..GEN202309-202412

CHILE SPEC

main82111-F2670supersedes 82115-F2Y30iZWE211..D..GEN202412

CHILE SPEC

main82111-F2N00iMZEA12..CVT..N..AGT202102-202201

GR SPORT

main82111-F2N10supersedes 82115-F2Z10iMZEA12..N..BZ202102-202201

GR SPORT

main82111-FES20iMZEA12..N..GEN202412

GR SPORT

main82111-FES30supersedes 82115-F2Z10iMZEA12..N..BZ202412

GR SPORT

main82111-FES40iZWE211..(E,N)..GEN202412

CHILE SPEC

main82115-F2V60iMZEA12..CVT..N..AGT202201-202309

GR SPORT

main82115-F2V70supersedes 82115-F2Z10iMZEA12..N..BZ202201-202309

GR SPORT

main82115-F2Z70iMZEA12..N..GEN202309-202412

GR SPORT

main82115-F2Z80supersedes 82115-F2Z10iMZEA12..N..BZ202309-202412

GR SPORT

main82115-F2Z90iZWE211..(E,N)..GEN202309-202412

CHILE SPEC

main82116-0ZW40iZWE211..E..GEN202201-202309

CHILE SPEC

82114WIRE, ENGINE ROOM, NO.4

main82114-02090iZRE210..6F..D202309

82119CWIRE, ENGINE ROOM, NO.5

main82119-02100iZWE211..N..AGT202412

URUGUAY SPEC

main82119-02290iMZEA12..N..(AGT,BZ)202412

GR SPORT

82286AWIRE, EARTH, NO.2

main82286-02160iZRE210..6F202309

main82286-02170iMZEA12201909-202201

82666EHOLDER, CONNECTOR NO.6

main82666-42020iMZEA12..D..BZ202309-202412

UP GRADE PACKAGE

82816BCOVER, WIRING HARNESS PROTECTOR, NO.1

main82815-12D10iMZEA12202412

main82815-12L40iZRE210202201-202309

main82815-47C20iZWE211202412

82816CCOVER, WIRING HARNESS PROTECTOR, NO.2

main82815-12L30iZRE210..6F202309

main82815-47C80iZWE211202412

82816DCOVER, WIRING HARNESS PROTECTOR, NO.3

main82815-12L20iMZEA12,ZRE210..CVT202309-202412

main82815-12L50iZWE211201909-202201

82816FCOVER, WIRING HARNESS PROTECTOR, NO.4

main82815-12L10iZRE210..6F202309

main82815-47D20iZWE211201909-202201

82816GCOVER, WIRING HARNESS PROTECTOR, NO.5

main82815-12L00iMZEA12,ZRE210..CVT202309-202412

main82815-12L60iZWE211202412

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-10360iZWE211202201-202309

82818CPROTECTOR, WIRING HARNESS, NO.4

main82817-12V40iMZEA12,ZRE210..CVT202309-202412

82818DPROTECTOR, WIRING HARNESS, NO.5

main82817-12V50iMZEA12202309-202412

main82817-12Z20iZRE210202201-202309

main82817-47N40iZWE211202412

82818EPROTECTOR, WIRING HARNESS, NO.6

main82817-12Z00iMZEA12,ZRE210..CVT202309-202412

main82817-47N50iZWE211202201-202309

82818FPROTECTOR, WIRING HARNESS, NO.7

main82817-12Y90iMZEA12202412

main82817-12Z30iZWE211202412

82818HPROTECTOR, WIRING HARNESS, NO.9

main82817-12Y80iMZEA12,ZRE210202201-202309

main82817-47N90iZWE211201909-202201

82818JPROTECTOR, WIRING HARNESS, NO.10

main82817-12Y70iMZEA12,ZRE210..CVT202309-202412

main82817-12Z40iZWE211202309-202412

82818LPROTECTOR, WIRING HARNESS, NO.12

main82817-12Z10iMZEA12,ZRE210202201-202309

82821HCOVER, CONNECTOR

main82821-30650×2iMZEA12,ZWE211202412

82824CONNECTOR, WIRING HARNESS

main82824-02080supersedes 82824-02080iMZEA12..GEN;MZEA12..D..AGT;ZWE211..(E,N)..GEN202412

ACTIVE SAFETY PACKAGE-WITH

8401

8417

9011906A06

main90119-06A06

9011906A18

main90119-06A18

9011906A24

main90119-06A24

9011908D22

main90119-08D22

9017806026

main90178-06026

27 parts on this diagram · 16 diagrams in section
