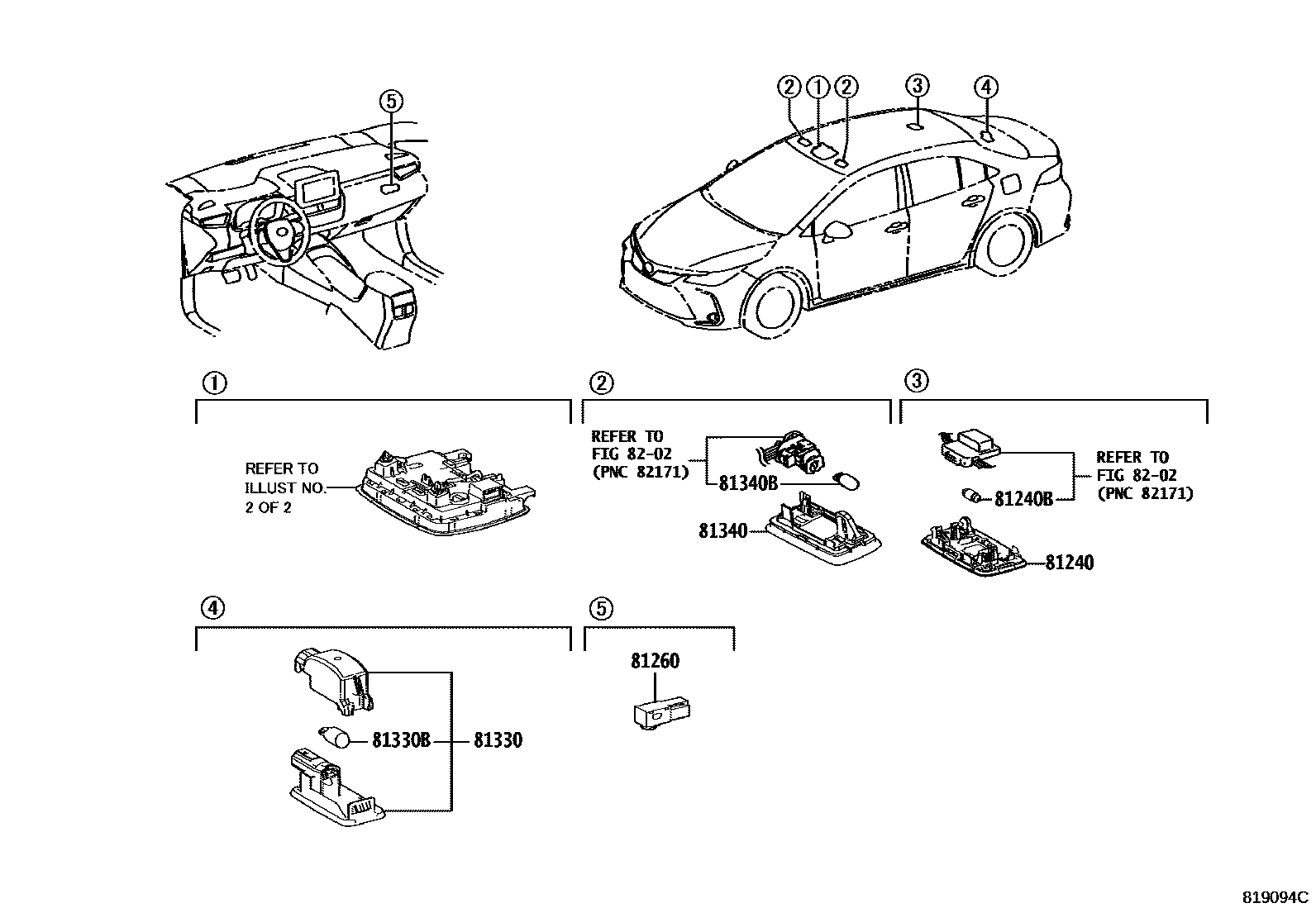

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-12100-A9iMZEA12..D;MZEA12..E..AGT;MZEA12..(E,N)..GEN;ZRE210,ZWE211..D,N;MZEA12..6F..N..AGT;ZWE211..E..(AGT,GEN)202201-202309

FROMAGE,TRIM2#

main81240-12100-C0iMZEA12..CVT..N..(AGT,BZ)202102-202201

BLACK,TRIM20

main81240-60060-A9iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202004

FROMAGE,TRIM0#,1#,2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iMZEA12,ZRE210,ZWE211..CVT202309-202412

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-33290iMZEA12,ZRE210,ZWE211201909-202102

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iMZEA12,ZRE210,ZWE211201909-202201

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iMZEA12,ZRE210,ZWE211201909-202201

12V 5W

81340LAMP ASSY, VANITY

main81340-30110×2supersedes 81340-30110iMZEA12,ZWE211..D..BZ201909-202201

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & SENSOR)

81340BBULB (FOR VANITY LAMP)

main90981-11062×2supersedes 90981-11062iMZEA12,ZWE211..D..BZ201909-202201

12V 8W

8202

8 parts on this diagram · 2 diagrams in section
