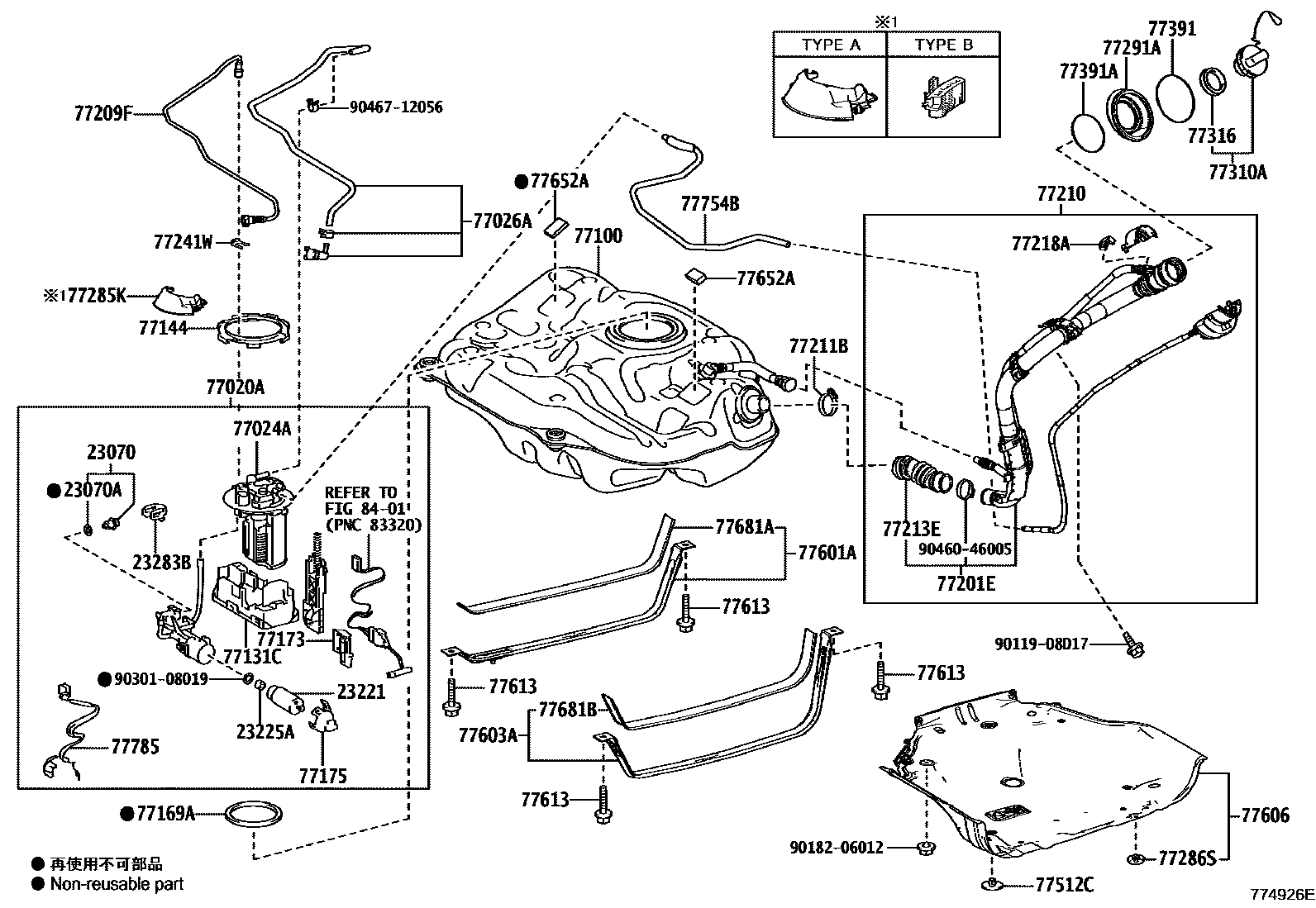

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK 0009 1FUEL TANK 0010 1FUEL TUBE 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL TUBE 0014 1FUEL TUBE 0016 1FUEL TUBE 0017 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iM20AFKS..MZEA12¥2,560201909-202412

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM20AFKS..MZEA12¥140201909-202412

23221PUMP, FUEL

main23221-25030iM20AFKS..MZEA12¥23,400201909-202412

main23221-37040i1ZRFAE..ZRE210¥23,400201909-202412

main23221-47031i2ZRFXE..ZWE211¥23,400201909-202412

23225ASPACER, FUEL PUMP

main23225-21020i1ZRFAE..ZRE210..6F¥120201909-202412

main23225-31020iM20AFKS..MZEA12¥40201909-202412

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24010iM20AFKS..MZEA12¥370201909-202412

main23283-37010i1ZRFAE..ZRE210..6F201909-202412

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02B60iZWE211..BZ201909-202201

main77020-02C80iZWE211..BZ202201-202412

main77020-02C90iMZEA12..BZ202309-202412

main77020-02D10iZWE211..BZ202412

main77020-12A90iMZEA12..BZ201909-202309

main77020-12B00iZWE211..AGT,GEN201909-202412

main77020-12B10iMZEA12..AGT,GEN201909-202412

main77020-12B20iZRE210201909-202412

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-12200iMZEA12..BZ201909-202309

main77024-12390iZWE211..AGT,GEN201909-202412

main77024-12400iMZEA12..AGT,GEN201909-202412

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-10040iMZEA12..AGT,GEN¥1,710201909-202412

main77026-12050iZRE210¥1,630201909-202412

main77026-47040iZWE211¥1,540201909-202412

77100TANK ASSY, FUEL

main77001-02830iMZEA12..BZ202201-202309

main77001-02870iZWE211..BZ202201-202309

main77001-02871iZWE211..BZ202309-202412

main77001-02B20iZWE211201909-202309

main77001-02B21iZWE211..AGT,GEN202309-202412

main77001-02B30iMZEA12,ZRE210..AGT,GEN201909-202309

main77001-02B31iMZEA12,ZRE210..CVT..(AGT,GEN)202309-202412

main77001-02B40iMZEA12..BZ201909-202201

main77001-02C00iMZEA12..BZ202309-202412

main77001-02C80iZWE211..BZ202412

77131CSUB-TANK, FUEL, NO.1

main77103-12150iZWE211..AGT,GEN¥2,920201909-202412

main77103-12160iMZEA12,ZRE210..CVT..(AGT,GEN)201909-202412

main77103-12180iMZEA12..BZ201909-202309

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMZEA12,ZRE210,ZWE211¥1,270201909-202412

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R030iMZEA12,ZWE211..BZ202201-202308

sub77169-F4050

main77169-47030iZRE210..6F¥220201909-202412

main77169-F4050iMZEA12,ZWE211..BZ202308-202412

77173BRACKET, FUEL GAGE

main77173-12010iMZEA12,ZRE210..AGT,GEN¥670201909-202412

main77173-12020iZWE211..AGT,GEN¥460201909-202412

77175SUPPORT, FUEL SUCTION, NO.2

main77175-12030iMZEA12..AGT,GEN¥510201909-202412

main77175-12040iZRE210,ZWE211..AGT,GEN201909-202412

main77175-78010iMZEA12..BZ¥570201909-202309

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-02660iZRE210..6F201909-202412

main77201-02750iMZEA12,ZWE211..BZ202201-202412

main77201-02830iMZEA12..BZ202309-202412

main77201-02860iZWE211..BZ202412

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02310iZWE211..AGT,GEN201909-202412

main77209-02320iMZEA12..AGT,GEN201909-202412

main77209-02330iZRE210201909-202412

main77209-02340iZWE211..BZ201909-202201

main77209-02350iMZEA12..BZ201909-202201

main77209-02420iZWE211..BZ202412

main77209-02440iMZEA12..BZ202201-202309

main77209-02441iMZEA12..BZ202309-202412

main77209-02460iZWE211..BZ202201-202412

77210PIPE ASSY, FUEL TANK FILLER

main77210-02460iMZEA12..BZ202201-202309

main77210-02742iMZEA12,ZWE211..AGT,GEN201909-202412

main77210-02800iZWE211..BZ202201-202412

main77210-02A30iMZEA12..BZ202309-202412

main77210-02A70iZWE211..BZ202412

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-50008iMZEA12,ZRE210,ZWE211..CVT..(AGT,GEN)¥240201909-202412

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-02160iMZEA12,ZRE210,ZWE211201909-202412

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-02140iMZEA12,ZRE210,ZWE211201909-202412

77241WCLIP, TUBE JOINT

main77241-33011iMZEA12,ZRE210,ZWE211..AGT,GEN¥80201909-202412

77285KCLAMP, FUEL TUBE, NO.1

main77285-10060iMZEA12,ZRE210¥1,670201909-202309

TYPE A:REFER ILLUST.

main77285-30350iMZEA12,ZRE210,ZWE211..CVT¥200201909-202412

TYPE B:REFER ILLUST.

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMZEA12,ZRE210..CVT¥200201909-202412

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02320iMZEA12,ZRE210,ZWE211201909-202412

77310ACAP ASSY, FUEL TANK

main77300-12020iMZEA12,ZRE210,ZWE211..AGT,GEN¥1,660201909-202412

main77300-12040iMZEA12,ZWE211..BZ202412

main77300-48020iMZEA12,ZWE211..BZ¥1,960202201-202412

77316GASKET, FUEL TANK CAP

main77316-52040iZWE211..AGT,GEN;MZEA12,ZRE210..CVT¥230201909-202412

main77316-75020iZWE211..BZ¥200202201-202412

77391RING, FUEL INLET BOX

main77391-20040iMZEA12,ZRE210,ZWE211¥190201909-202412

77391ARING, FUEL INLET BOX

main77391-02020iMZEA12,ZRE210,ZWE211201909-202412

77512CBRACKET, FUEL TANK

main77512-35140iMZEA12,ZRE210,ZWE211..CVT¥230201909-202412

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-02230iMZEA12,ZRE210201909-202412

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-02220iMZEA12,ZRE210201909-202412

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02180iMZEA12,ZRE210201909-202412

77613BOLT, FUEL TANK BAND SET

main90119-10995iMZEA12,ZRE210¥190201909-202412

77652ACUSHION, FUEL TANK, NO.2

main77652-02120iMZEA12,ZRE210201909-202412

77681ASEAT, FUEL TANK BAND

main77681-47020iMZEA12,ZRE210¥620201909-202412

77681BSEAT, FUEL TANK BAND

main77682-47020iMZEA12,ZRE210¥620201909-202412

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-12250iMZEA12..BZ201909-202309

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-12270iMZEA12..AGT,GEN201909-202412

main77754-12280iZWE211..BZ202201-202412

main77754-47090iZWE211..AGT,GEN¥1,760201909-202412

77785HARNESS, FUEL PUMP

main77785-12040iMZEA12..AGT,GEN201909-202412

main77785-12050iZWE211..AGT,GEN201909-202412

main77785-76010iMZEA12..BZ¥870201909-202309

8401

9011908D17

main90119-08D17¥100

9018206012

main90182-06012¥60

9030108019

main90301-08019¥200

9046046005

main90460-46005¥190

9046712056

main90467-12056¥70

45 parts on this diagram · 16 diagrams in section
