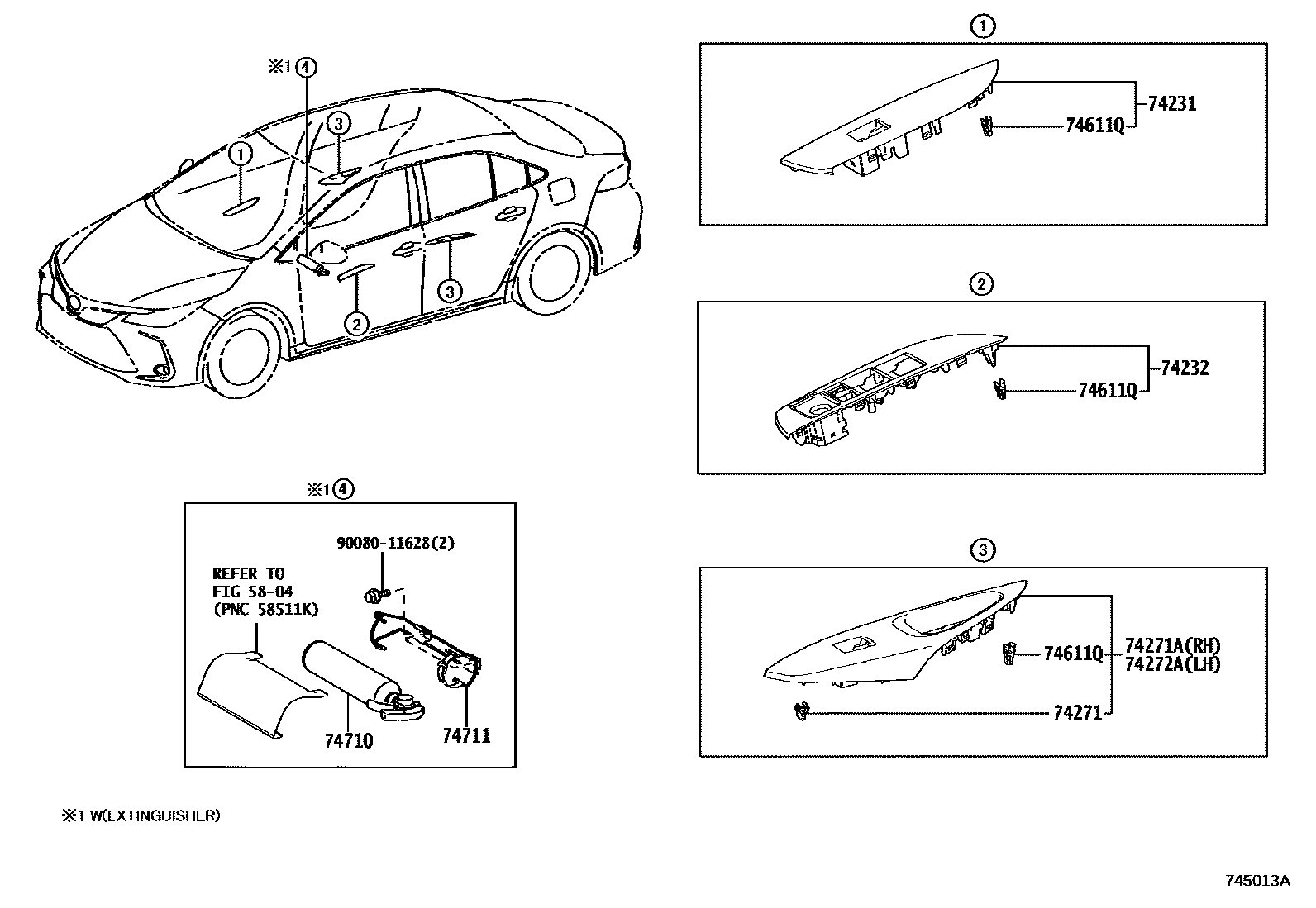

ARMREST & VISOR

0001 1ARMREST & EXTINGUISHER 0002 1VISOR & ASSIST GRIP

5804

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02J20iZRE210..6F201909-202412

main74231-02J30iMZEA12,ZWE211..E201909-202412

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02J80iMZEA12,ZRE210,ZWE211..CVT..(D,N)201909-202412

main74232-02J90iMZEA12,ZWE211..E201909-202412

74271RETAINER, DOOR ARMREST

main55416-60030iMZEA12,ZRE210,ZWE211..CVT¥80201909-202412

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02A00iMZEA12,ZRE210,ZWE211..CVT..(D,N)201909-202412

main74271-02A10iMZEA12,ZWE211..E201909-202412

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02890iMZEA12,ZWE211..D,N201909-202412

main74272-02A00iMZEA12,ZWE211..E201909-202412

74611QCLIP

main90467-10203iMZEA12,ZRE210,ZWE211..CVT¥60201909-202412

74710EXTINGUISHER ASSY

main74710-02010

74711BRACKET SUB-ASSY, EXTINGUISHER

main74702-02020

9008011628

main90080-11628

10 parts on this diagram · 2 diagrams in section
