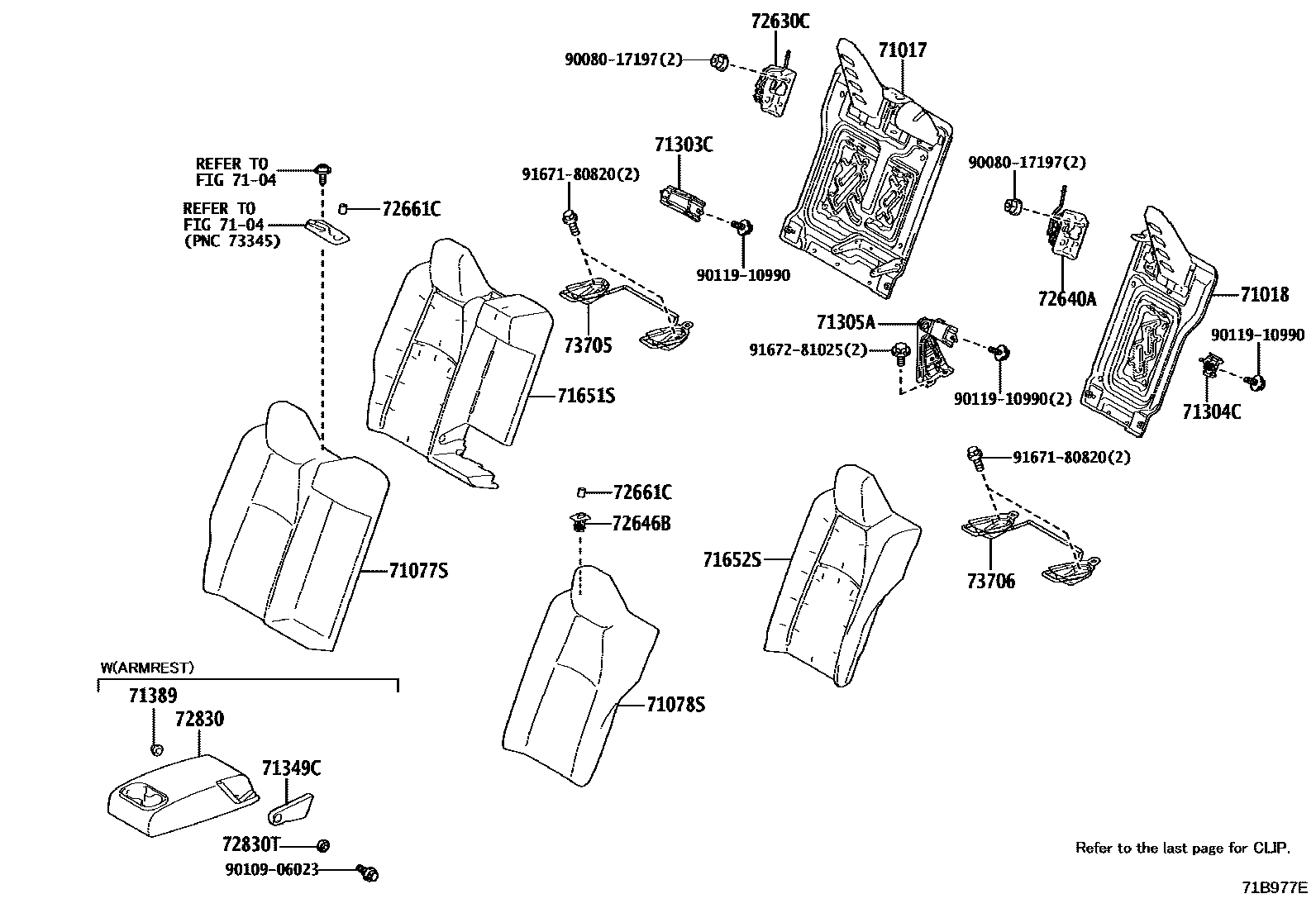

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION 0003 1SEAT CUSHION 0004 1SEAT COVER EDGE WIRE & CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-02D90supersedes 71017-02D80iMZEA12..D..BZ202309-202412

UP GRADE PACKAGE

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-02700iMZEA12,ZWE211202412

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0ZG80-B0iMZEA12,ZRE210..(D,N)..(AGT,GEN)201909-202010

LT. GRAY,TRIM1#

main71077-0ZG80-C0iMZEA12,ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202010

BLACK,TRIM2#

main71077-0ZG81-C0iMZEA12,ZRE210,ZWE211..(D,N)..(AGT,GEN)202010-202108

BLACK,TRIM2#

main71077-0ZG82-C0iMZEA12,ZRE210,ZWE211..(D,N)..(AGT,GEN)202108-202201

BLACK,TRIM2#

main71077-0ZG83-C0iMZEA12..D..AGT;MZEA12,ZRE210,ZWE211..CVT..(D,N)..GEN202309-202412

BLACK,TRIM2#

main71077-0ZG90-A2iMZEA12,ZWE211..E201909-202010

FROMAGE,TRIM0#

main71077-0ZG90-B2iMZEA12..N..AGT201909-202010

LT.GRAY,TRIM1#

main71077-0ZG90-C3iMZEA12..N..AGT201909-202010

BLACK,TRIM2#

main71077-0ZG91-C3iMZEA12,ZWE211..N..BZ;MZEA12,ZWE211..E..(AGT,GEN)202010-202108

BLACK,TRIM2#

main71077-0ZG92-C3iMZEA12,ZWE211..N..BZ;MZEA12,ZWE211..E..(AGT,GEN)202108-202201

BLACK,TRIM2#

main71077-0ZG93-C3iMZEA12,ZWE211..N..BZ;MZEA12,ZWE211..E..(AGT,GEN)202201-202309

BLACK,TRIM2#

main71077-0ZN40-C1iZWE211..D201909-202010

BLACK,TRIM2#

main71077-0ZN41-C1iZWE211..D202010-202108

BLACK,TRIM2#

main71077-0ZN42-C1iZWE211..D202108-202201

BLACK,TRIM2#

main71077-0ZN43-C1supersedes 71077-0ZM32-C0iZWE211..D..BZ;MZEA12,ZWE211..N..AGT202309-202412

BLACK,TRIM2#

main71077-0ZR60-C0iZWE211..N..GEN202412

BLACK,TRIM2#

main71077-0ZF50-C0iMZEA12..CVT..N..(AGT,BZ)202102-202108

GR SPORT,BLACK/GR RED,TRIM2#

main71077-0ZF51-C0iMZEA12..CVT..N..(AGT,BZ)202108-202201

GR SPORT,BLACK/GR RED,TRIM2#

main71077-0ZF52-C0iMZEA12..N..GEN202309-202412

COLOMBIA SPEC&GR SPORT,BLACK/GR RED,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0Z420-B0iMZEA12,ZRE210..(D,N)..(AGT,GEN)201909-202102

LT. GRAY,TRIM1#

main71078-0Z420-C0iMZEA12..D;MZEA12..N..(AGT,GEN);ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202108

BLACK,TRIM2#

main71078-0Z421-C0iMZEA12..D;MZEA12..N..(AGT,GEN);ZRE210,ZWE211..(D,N)..(AGT,GEN)202108-202201

BLACK,TRIM2#

main71078-0Z422-C0iMZEA12..D;MZEA12..N..GEN;ZRE210,ZWE211..CVT..(D,N)..GEN202309-202412

BLACK,TRIM2#

main71078-0Z430-A2iMZEA12,ZWE211..E201909-202108

FROMAGE,TRIM0#

main71078-0Z430-B2iMZEA12..N..AGT201909-202102

LT.GRAY,TRIM1#

main71078-0Z430-C3iMZEA12..N..AGT201909-202108

BLACK,TRIM2#

main71078-0Z431-C3iMZEA12,ZWE211..N..BZ;MZEA12,ZWE211..E..(AGT,GEN)202108-202201

BLACK,TRIM2#

main71078-0Z432-C3iMZEA12,ZWE211..N..BZ;MZEA12,ZWE211..E..(AGT,GEN)202201-202309

BLACK,TRIM2#

main71078-0Z750-C1iZWE211..D201909-202108

BLACK,TRIM2#

main71078-0Z751-C1iZWE211..D202108-202201

BLACK,TRIM2#

main71078-0Z752-C1iMZEA12..D..BZ202201-202309

BLACK,TRIM2#

main71078-0ZE90-C0iZWE211..N..GEN202412

BLACK,TRIM2#

main71078-0Z340-C0iMZEA12..CVT..N..(AGT,BZ)202102-202108

GR SPORT,BLACK/GR RED,TRIM2#

main71078-0Z341-C0iMZEA12..CVT..N..(AGT,BZ)202108-202201

GR SPORT,BLACK/GR RED,TRIM2#

main71078-0Z342-C0iMZEA12..N..(AGT,GEN)202412

GR SPORT,BLACK/GR RED,TRIM2#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-02380iMZEA12,ZRE210,ZWE211201909-202201

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-02120iMZEA12,ZWE211202412

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-02380iMZEA12,ZRE210,ZWE211202201-202309

71349CCOVER, REAR SEATBACK HINGE

main71349-02110-B1iMZEA12..N..AGT201909-202102

UP GRADE PACKAGE,NEUTRAL WARM GRAY,TRIM1#

main71349-02110-C1iMZEA12,ZWE211..E..BZ202106-202201

BLACK,TRIM0#,2#

main71349-02110-E0iMZEA12,ZWE211..E..BZ201909-202106

ORCHID BROWN,TRIM0#

71389SPACER, CENTER SEAT HINGE

main71389-02020iMZEA12..D..BZ202201-202309

UP GRADE PACKAGE

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-02B70iMZEA12..D..BZ201909-202009

UP GRADE PACKAGE

main71651-02B71iMZEA12..D..BZ202010-202108

UP GRADE PACKAGE

main71651-02B72iMZEA12..D..BZ202108-202201

UP GRADE PACKAGE

main71651-02B73supersedes 71651-02B61iZWE211;MZEA12..E,N;MZEA12..D..(AGT,GEN)202412

UP GRADE PACKAGE

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-02810iMZEA12,ZRE210,ZWE211201909-202108

main71652-02811iZRE210..6F202309

main71652-02812iMZEA12,ZWE211202412

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-02270iZRE210..6F202309

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-02260iMZEA12,ZWE211202412

72646BGROMMET, REAR SEATBACK STOP BUTTON

main72646-02190-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM2#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-02190-C0×2iMZEA12..D..GEN;MZEA12..(D,N)..AGT202201-202309

BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-02P80-C1iMZEA12,ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202201

BLACK,TRIM2#

main72830-02P80-C2iMZEA12,ZRE210..(D,N)..(AGT,GEN)201909-202102

GRAY,TRIM1#

main72830-02P81-C1iMZEA12..D..AGT;MZEA12,ZWE211..(D,N)..GEN202412

BLACK,TRIM2#

main72830-02P90-B0iMZEA12..N..AGT201909-202102

UP GRADE PACKAGE,NEUTRAL WARM GRAY,TRIM1#

main72830-02P90-C0iZWE211..BZ;MZEA12..(E,N)..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM2#

main72830-02P90-E0iMZEA12,ZWE211..E..BZ202309-202412

ORCHID BROWN,TRIM0#

main72830-02P91-C0iMZEA12..N..GEN202412

BLACK,TRIM2#

main72830-02P91-E0iMZEA12,ZWE211..E..BZ202412

ORCHID BROWN,TRIM0#

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main72622-02020iMZEA12..D..BZ201909-202201

UP GRADE PACKAGE

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-02380iMZEA12,ZRE210,ZWE211201909-202201

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73705-02390iMZEA12,ZRE210,ZWE211201909-202201

9008017197

main90080-17197

9010906023

main90109-06023

9011910990

main90119-10990

9167180820

main91671-80820

9167281025

main91672-81025

25 parts on this diagram · 4 diagrams in section
