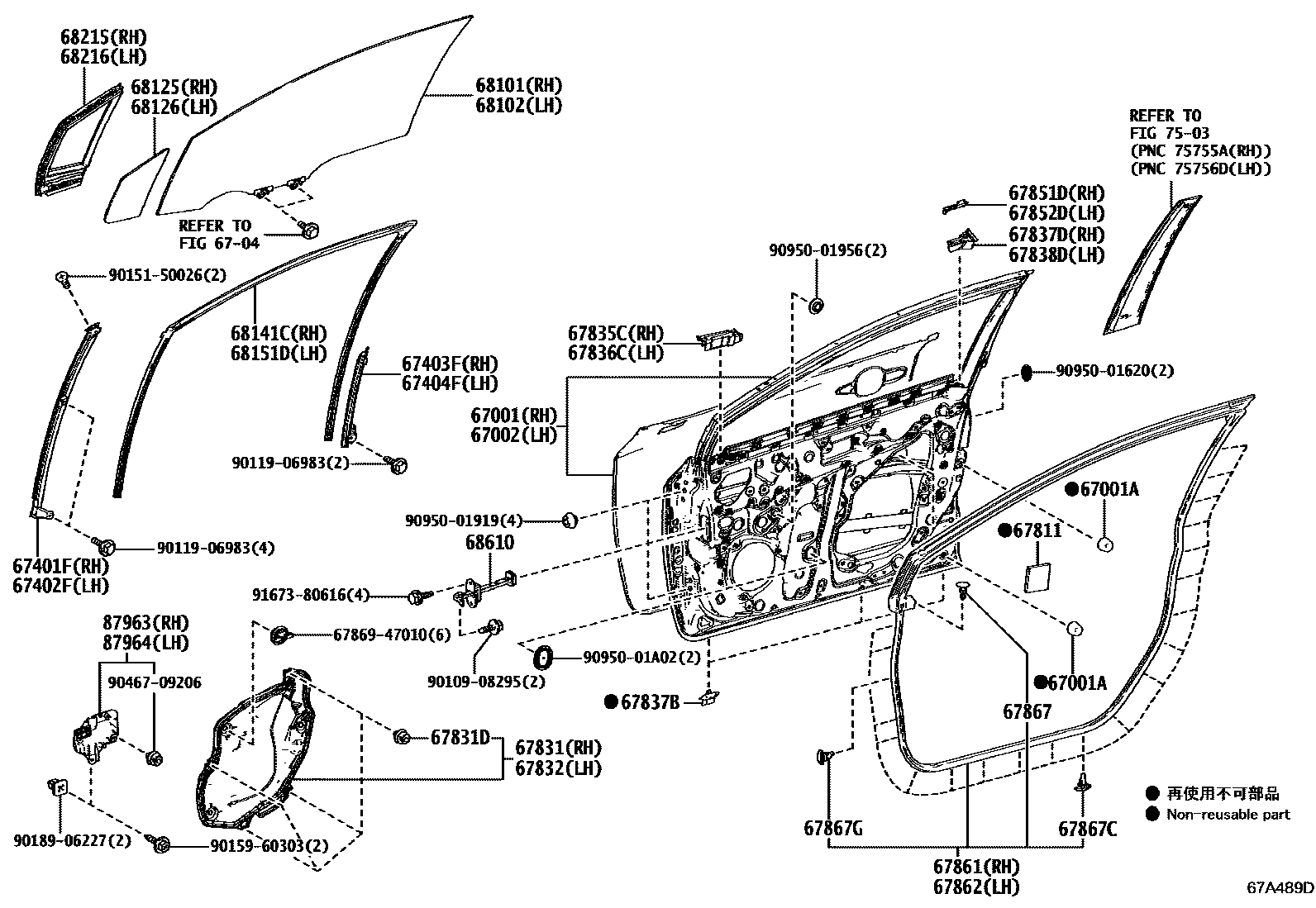

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02600iMZEA12,ZWE211202412

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iMZEA12,ZRE210,ZWE211202201-202309

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02590iMZEA12,ZWE211202412

6704

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12380iMZEA12,ZRE210,ZWE211201909-202201

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12400iMZEA12,ZRE210,ZWE211201909-202201

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02300iMZEA12,ZRE210,ZWE211..CVT202309-202412

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02300iMZEA12,ZRE210,ZWE211202201-202309

67811PAD, FRONT DOOR SILENCER

main67811-02380×4iMZEA12,ZRE210,ZWE211202201-202212

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02500iMZEA12,ZWE211202412

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×8iMZEA12,ZWE211202412

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02500iMZEA12,ZRE210,ZWE211202201-202309

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-02040iZRE210..6F202309

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-02100iMZEA12,ZWE211202412

67837BSEAL, FRONT DOOR DUST PROOF

main67837-48050iMZEA12,ZWE211202412

67837DSEAL, FRONT DOOR VENT, RH

main67837-02140iMZEA12,ZWE211202412

67838DSEAL, FRONT DOOR VENT, LH

main67838-02110iMZEA12,ZWE211202412

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-02040iMZEA12,ZRE210,ZWE211202201-202309

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-02040iMZEA12,ZRE210,ZWE211202201-202309

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02390iZRE210..6F202309

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02390iZRE210..6F202309

67867CLIP, DOOR WEATHERSTRIP

main67868-30030×2iZRE210..6F202309

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×40iMZEA12,ZRE210,ZWE211201909-202201

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52030×2iMZEA12,ZRE210,ZWE211..CVT202309-202412

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02630iMZEA12,ZRE210,ZWE211202201-202212

main68101-02631iMZEA12,ZWE211202412

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02630iMZEA12,ZRE210,ZWE211202201-202212

main68102-02631iMZEA12,ZRE210,ZWE211..CVT202309-202412

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-02070iMZEA12,ZRE210,ZWE211201909-202201

main68125-02071iZRE210..6F202309

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-02070iMZEA12,ZRE210,ZWE211202201-202212

main68126-02071iMZEA12,ZWE211202412

68141CRUN, FRONT DOOR GLASS, RH

main68141-02440iMZEA12,ZWE211202412

68151DRUN, FRONT DOOR GLASS, LH

main68151-02430iMZEA12,ZRE210,ZWE211..CVT202309-202412

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-02070iMZEA12,ZWE211202412

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-02070iMZEA12,ZWE211202412

68610CHECK ASSY, FRONT DOOR

main68610-02390×2iMZEA12,ZRE210,ZWE211..CVT202309-202412

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-02040iMZEA12,ZWE211202412

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-02040iMZEA12,ZWE211202412

6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-47010

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015960303

main90159-60303

9018906227

main90189-06227

9046709206

main90467-09206

9095001620

main90950-01620

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

48 parts on this diagram · 2 diagrams in section
