INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-02450-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main62111-02450-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main62111-02450-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main62111-02450-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main62111-02450-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-02450-C0iMZEA12,ZWE211..E..BZ201909-202309

BLACK,TRIM1#,2#

main62112-02450-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main62112-02450-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main62112-02450-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main62112-02450-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iMZEA12,ZRE210,ZWE211201909-202412

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10167iMZEA12,ZRE210,ZWE211201909-202412

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-02300iZWE211..D,N;MZEA12..D..AGT;MZEA12..E..GEN;ZWE211..E..(AGT,GEN);MZEA12,ZRE210..(D,N)..(BZ,GEN)201909-202412

MOON ROOF-WITHOUT

main62170-02300iZRE210..6F202309

main62170-02340iZWE211..E..BZ;MZEA12..N..AGT;MZEA12..E..(AGT,BZ)201909-202412

MOON ROOF-WITH

62170BBOLT, W/WASHER

main91673-80616iZRE210..6F201909-202412

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-02280iMZEA12..N..AGT201909-202412

MOON ROOF-WITHOUT

main62180-02280iZRE210..6F202309

main62180-02320iZWE211..N..BZ;MZEA12..N..(BZ,GEN);MZEA12,ZWE211..E..GEN201909-202412

MOON ROOF-WITH

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-02480-A0iMZEA12..N..BZ201909-202309

FROMAGE,TRIM1#,2#

main62210-02480-A0iMZEA12..CVT..N..(AGT,BZ)201909-202201

FROMAGE,TRIM0#,1#,2#

main62210-02480-A0iMZEA12..CVT..N..(AGT,BZ)202102-202201

FROMAGE,TRIM0#,1#,20

main62210-02480-A0iMZEA12..CVT..N..AGT202201-202309

FROMAGE,TRIM1#,20

main62210-02480-A0iMZEA12..CVT..N..AGT202201-202412

FROMAGE,TRIM0#

main62210-02480-A0iMZEA12..CVT..N..AGT202201-202412

FROMAGE,TRIM20

main62210-02480-A0iMZEA12..CVT..N..AGT202201-202412

FROMAGE,TRIM2#

main62210-02480-A0iMZEA12..D;ZWE211..D,N;MZEA12,ZWE211..E..(AGT,GEN)202412

FROMAGE,TRIM0#,2#

main62210-02480-C0iMZEA12..CVT..N..(AGT,BZ)202102-202412

BLACK,TRIM20

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-02480-A0iMZEA12..N..BZ202201-202412

FROMAGE,TRIM0#

main62220-02480-A0iMZEA12..CVT..N..(AGT,BZ)201909-202201

FROMAGE,TRIM0#,1#,2#

main62220-02480-A0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN201909-202309

FROMAGE,TRIM1#,2#

main62220-02480-A0iMZEA12..CVT..N..(AGT,BZ)202102-202201

FROMAGE,TRIM0#,1#,20

main62220-02480-A0iMZEA12..CVT..N..AGT202201-202309

FROMAGE,TRIM1#,20

main62220-02480-A0iMZEA12..CVT..N..AGT202201-202412

FROMAGE,TRIM20

main62220-02480-A0iMZEA12..CVT..N..AGT202201-202412

FROMAGE,TRIM2#

main62220-02480-A0iMZEA12,ZWE211..E..BZ202412

FROMAGE,TRIM0#,2#

main62220-02480-C0iMZEA12..CVT..N..(AGT,BZ)202102-202412

BLACK,TRIM20

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iMZEA12,ZRE210,ZWE211..CVT201909-202412

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02380iMZEA12,ZWE211201909-202412

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02390iMZEA12,ZRE210,ZWE211201909-202412

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02420iMZEA12,ZWE211201909-202412

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02420iMZEA12,ZRE210,ZWE211201909-202412

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-02370-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main62410-02370-C0iMZEA12..D..GEN;MZEA12..(D,N)..AGT202201-202412

BLACK,TRIM0#

main62410-02370-C0iMZEA12..D..GEN;MZEA12..(D,N)..AGT201909-202309

BLACK,TRIM1#,2#

main62410-02370-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

main62410-02370-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

62410BCLIP

main90467-10216iMZEA12,ZRE210,ZWE211201909-202412

62411HCLIP

main90467-10161iMZEA12,ZRE210,ZWE211201909-202412

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02410-C0iMZEA12..D..GEN;MZEA12..(D,N)..AGT202201-202412

BLACK,TRIM0#

main62413-02410-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main62413-02410-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main62413-02410-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main62413-02410-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02410-C0iMZEA12,ZWE211..D,N;MZEA12,ZWE211..E..(AGT,GEN)202201-202412

BLACK,TRIM2#

main62414-02410-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

main62414-02410-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main62414-02410-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main62414-02410-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-02370-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main62420-02370-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main62420-02370-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main62420-02370-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main62420-02370-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-02720-A0iMZEA12..N202201-202412

FROMAGE,TRIM20

main62470-02720-A0iZWE211..BZ;MZEA12..E..AGT;MZEA12..6F..N..AGT;ZWE211..E..(AGT,GEN);MZEA12..CVT..(D,E)..(BZ,GEN)201909-202309

FROMAGE,TRIM1#,2#

main62470-02720-A0iZWE211..BZ;MZEA12..E..AGT;MZEA12..6F..N..AGT;ZWE211..E..(AGT,GEN);MZEA12..CVT..(D,E)..(BZ,GEN)201909-202201

FROMAGE,TRIM0#,1#,2#

main62470-02720-A0iMZEA12..CVT..N..(AGT,BZ)202102-202201

FROMAGE,TRIM0#,1#,20

main62470-02720-A0iMZEA12,ZWE211..E..BZ202412

FROMAGE,TRIM0#,2#

main62470-02720-A0iMZEA12,ZWE211..E..BZ202201-202412

FROMAGE,TRIM2#

main62470-02720-A0iMZEA12..CVT..N..AGT202201-202309

FROMAGE,TRIM1#,20

main62470-02720-A0iMZEA12..CVT..N..AGT202201-202412

FROMAGE,TRIM0#

main62470-02720-C0iMZEA12..CVT..N..(AGT,BZ)202102-202412

BLACK,TRIM20

62471MCLIP

main90467-10167iMZEA12,ZRE210,ZWE211201909-202412

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-02720-A0iMZEA12..N..BZ202201-202412

FROMAGE,TRIM2#

main62480-02720-A0iMZEA12..CVT..N..(AGT,BZ)201909-202201

FROMAGE,TRIM0#,1#,2#

main62480-02720-A0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN201909-202309

FROMAGE,TRIM1#,2#

main62480-02720-A0iMZEA12..CVT..N..(AGT,BZ)202102-202201

FROMAGE,TRIM0#,1#,20

main62480-02720-A0iMZEA12..CVT..N..AGT202201-202309

FROMAGE,TRIM1#,20

main62480-02720-A0iMZEA12..CVT..N..AGT202201-202412

FROMAGE,TRIM0#

main62480-02720-A0iMZEA12..CVT..N..AGT202201-202412

FROMAGE,TRIM20

main62480-02720-A0iMZEA12,ZWE211..E..BZ202412

FROMAGE,TRIM0#,2#

main62480-02720-C0iMZEA12..CVT..N..(AGT,BZ)202102-202412

BLACK,TRIM20

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iMZEA12,ZWE211201909-202412

62489BCLIP, ROOF SIDE INNER GARNISH

main90467-10188iMZEA12,ZWE211201909-202412

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62217-13010iMZEA12,ZRE210,ZWE211..CVT201909-202412

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02770-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main62551-02770-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main62551-02770-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main62551-02770-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main62551-02770-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

62551GCLIP

main90467-09236iMZEA12,ZRE210,ZWE211201909-202412

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02850-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

main62552-02850-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main62552-02850-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main62552-02850-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main62552-02850-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

62597DCLIP

main90467-18017iMZEA12,ZRE210,ZWE211201909-202412

62638BCLIP

main90467-10161iMZEA12,ZRE210,ZWE211201909-202412

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-02410-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main67913-02410-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main67913-02410-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main67913-02410-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main67913-02410-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02410-C0iZRE210,ZWE211..D,N;MZEA12..6F..N..GEN;MZEA12,ZWE211..E..(AGT,GEN);MZEA12..CVT..(D,N)..(BZ,GEN)201909-202309

BLACK,TRIM1#,2#

main67914-02410-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main67914-02410-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main67914-02410-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main67914-02410-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02520-C0iMZEA12..BZ;MZEA12..N..AGT;MZEA12..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main67917-02520-C0iMZEA12..D..AGT;MZEA12,ZRE210..(D,N)..GEN201909-202201

BLACK,TRIM0#,1#,2#

main67917-02520-C0iMZEA12..D..GEN;MZEA12..(D,N)..AGT202201-202412

BLACK,TRIM0#

main67917-02520-C0iMZEA12..D..GEN;MZEA12..(D,N)..AGT202201-202412

BLACK,TRIM2#

main67917-02520-C0iMZEA12..E..BZ202412

BLACK,TRIM0#,2#

main67917-02540-C0iZWE211..BZ;ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main67917-02540-C0iZWE211..E..BZ202201-202412

BLACK,TRIM0#

main67917-02540-C0iZWE211..BZ;ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM1#,2#

main67917-02540-C0iZWE211..E..BZ202201-202412

BLACK,TRIM2#

main67917-02540-C0iZWE211..E..BZ202412

BLACK,TRIM0#,2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02540-C0iZRE210;MZEA12..6F..N..GEN;MZEA12..E..(AGT,GEN);MZEA12..CVT..(D,N)..(BZ,GEN)201909-202309

BLACK,TRIM1#,2#

main67918-02540-C0iMZEA12..BZ;MZEA12..N..AGT;MZEA12..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main67918-02540-C0iZRE210;MZEA12..6F..N..GEN;MZEA12..E..(AGT,GEN);MZEA12..CVT..(D,N)..(BZ,GEN)202201-202412

BLACK,TRIM0#

main67918-02540-C0iZRE210;MZEA12..6F..N..GEN;MZEA12..E..(AGT,GEN);MZEA12..CVT..(D,N)..(BZ,GEN)202201-202412

BLACK,TRIM2#

main67918-02540-C0iMZEA12..E..BZ202412

BLACK,TRIM0#,2#

main67918-02560-C0iZWE211..D,N;ZWE211..E..(AGT,GEN)202201-202412

BLACK,TRIM0#

main67918-02560-C0iZWE211..N..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main67918-02560-C0iZWE211..N..(AGT,GEN)201909-202201

BLACK,TRIM1#,2#

main67918-02560-C0iZWE211..D,N;ZWE211..E..(AGT,GEN)202201-202412

BLACK,TRIM2#

main67918-02560-C0iZWE211..D,N;ZWE211..E..(AGT,GEN)202412

BLACK,TRIM0#,2#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090iMZEA12,ZRE210,ZWE211201909-202412

7104

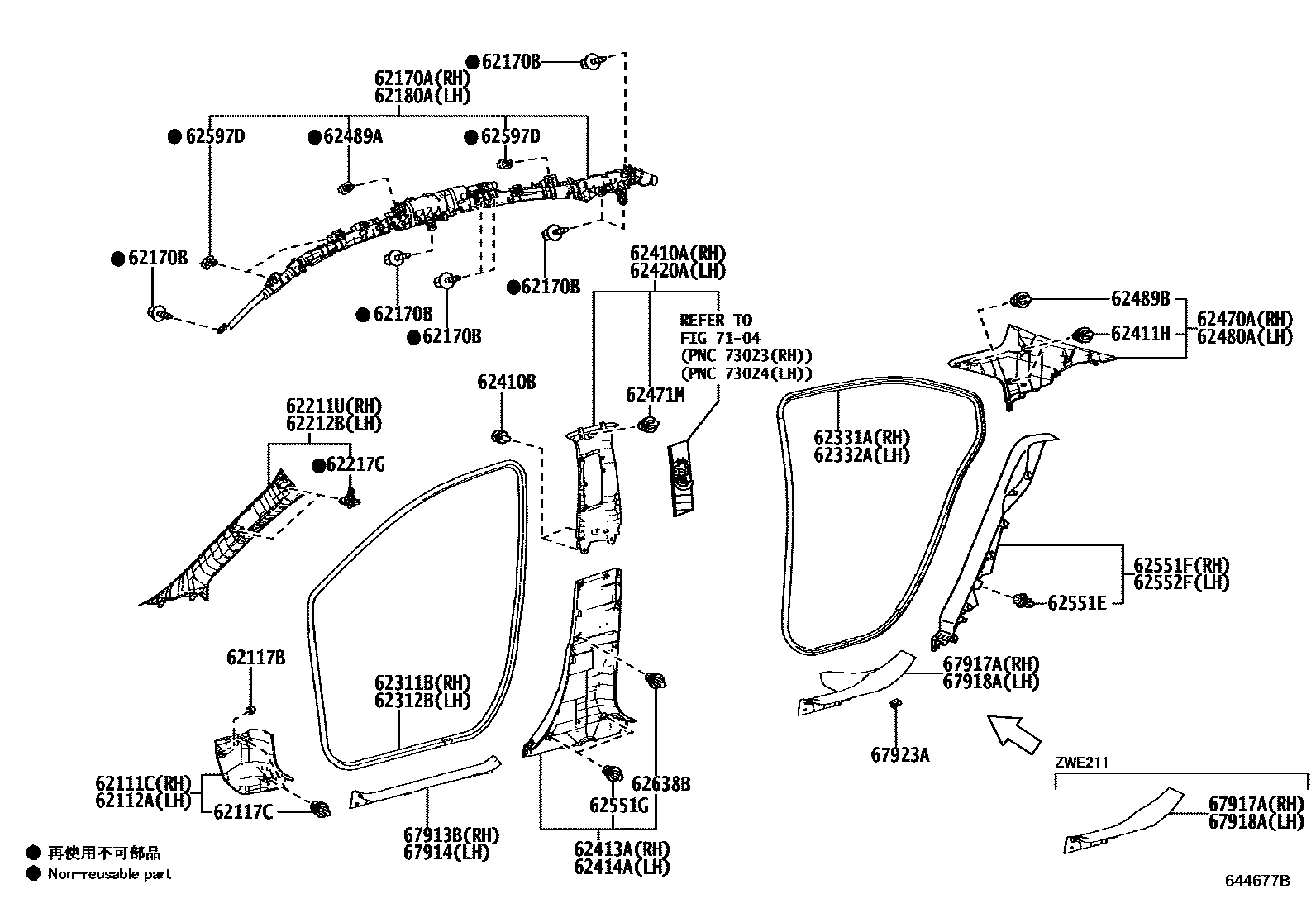

37 parts on this diagram · 1 diagram in section
