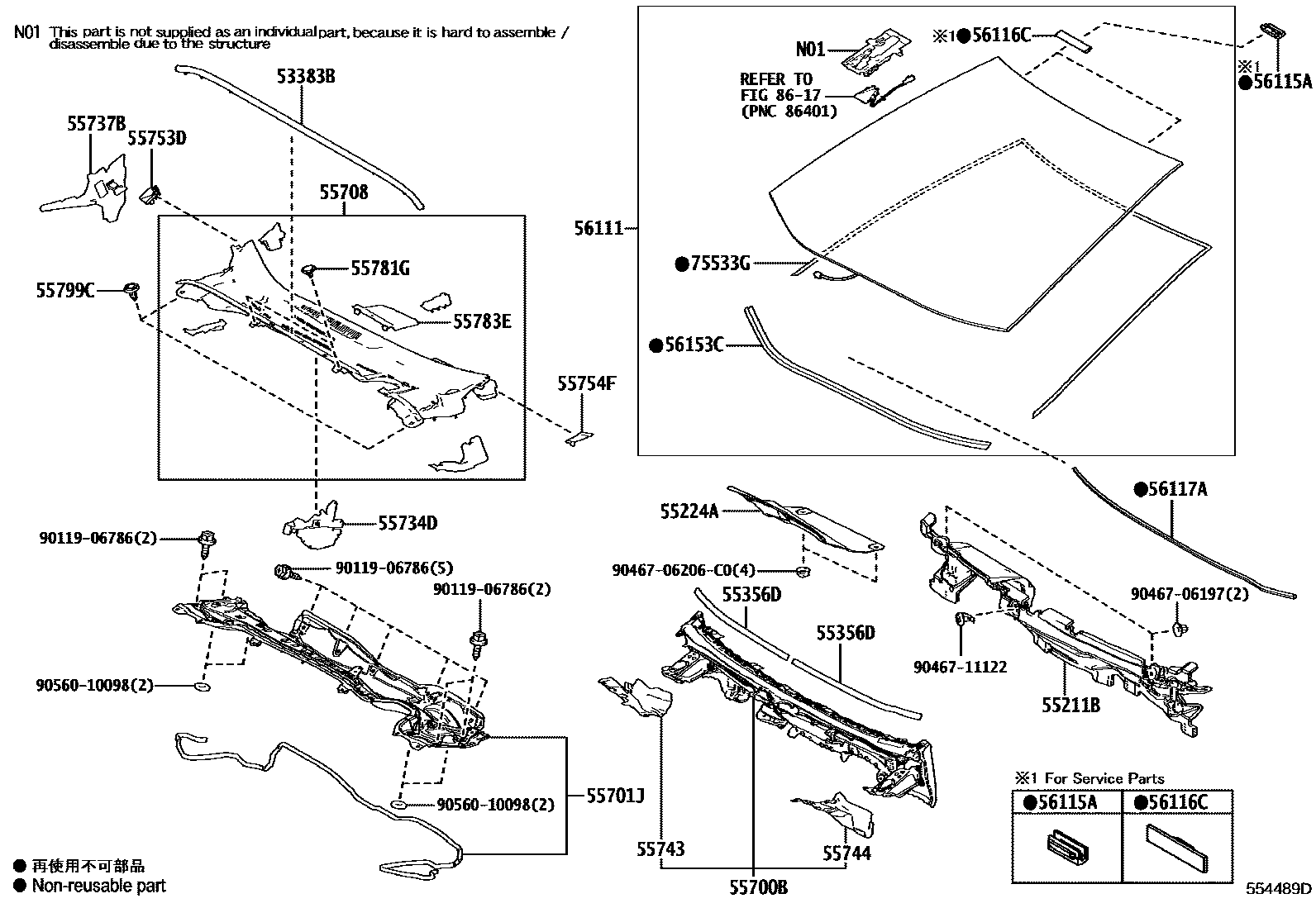

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-02310iZRE210..6F202309

55211BSILENCER, FRONT PANEL

main55211-02350iZRE210..6F202309

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-02290iMZEA12,ZWE211202412

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-02590×2iMZEA12,ZWE211202412

55700BCOWL ASSY

main55700-02730iZRE210..6F202309

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02670iMZEA12,ZWE211202412

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02A90iMZEA12,ZRE210,ZWE211201909-202201

main55708-02A91iMZEA12,ZWE211202412

55734DPLATE, WATER GUARD

main55734-02430iMZEA12,ZRE210,ZWE211..CVT202309-202412

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02270iMZEA12,ZRE210,ZWE211202201-202309

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-02240iMZEA12,ZRE210,ZWE211201909-202201

55744PANEL, COWL TOP OUTSIDE CORNER, LH

main55744-02210iMZEA12,ZWE211202412

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-02230iMZEA12,ZRE210,ZWE211202201-202309

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-02240iMZEA12,ZRE210,ZWE211201909-202201

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07224×2iMZEA12,ZRE210,ZWE211201909-202201

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-02370iMZEA12,ZRE210,ZWE211201909-202201

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iMZEA12,ZWE211202412

56111GLASS, WINDSHIELD

main56101-02G60iMZEA12,ZWE211..D;ZRE210,ZWE211..(D,N)..GEN201909-202201

BOLIVIA SPEC

main56101-02G61supersedes 56101-02Z00iMZEA12..D..(BZ,GEN);ZRE210,ZWE211..CVT..(D,N)..GEN202309-202412

BOLIVIA SPEC

main56101-02Y50iMZEA12..D..BZ202201-202212

ACTIVE SAFETY PACKAGE-WITH(ADJUSTABLE SPEED LIMITER)

main56101-02Y51iMZEA12..D..BZ202301-202309

ACTIVE SAFETY PACKAGE-WITH(ADJUSTABLE SPEED LIMITER)

main56101-02Y70iMZEA12,ZWE211..E..(AGT,BZ)202201-202212

ACTIVE SAFETY PACKAGE-WITH

main56101-02Y71supersedes 56101-02Z01iMZEA12..N..GEN202412

COLOMBIA SPEC&GR SPORT

main56101-02Z00supersedes 56101-02Z00iZWE211..N..AGT;MZEA12..N..(AGT,GEN)202201-202212

main56101-02Z01iZWE211..N..AGT;MZEA12..N..(AGT,GEN)202301-202309

main56101-02Z40supersedes 56101-02Y80iMZEA12,ZWE211..E..BZ202112-202201

ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-AVN(8INCH) & 6SPEAKER

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMZEA12,ZRE210,ZWE211..CVT202309-202412

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMZEA12,ZRE210,ZWE211..CVT202309-202412

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iMZEA12..N..AGT202309-202412

*D,L=1298,UP GRADE PACKAGE

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-12010iMZEA12,ZRE210,ZWE211201909-202012

main56153-12030iMZEA12,ZRE210,ZWE211202101-202201

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02310iMZEA12,ZRE210,ZWE211201909-202201

8617

9011906786

main90119-06786

9046706197

main90467-06197

9046706206C0

main90467-06206C0

9046711122

main90467-11122

9056010098

main90560-10098

28 parts on this diagram · 1 diagram in section
