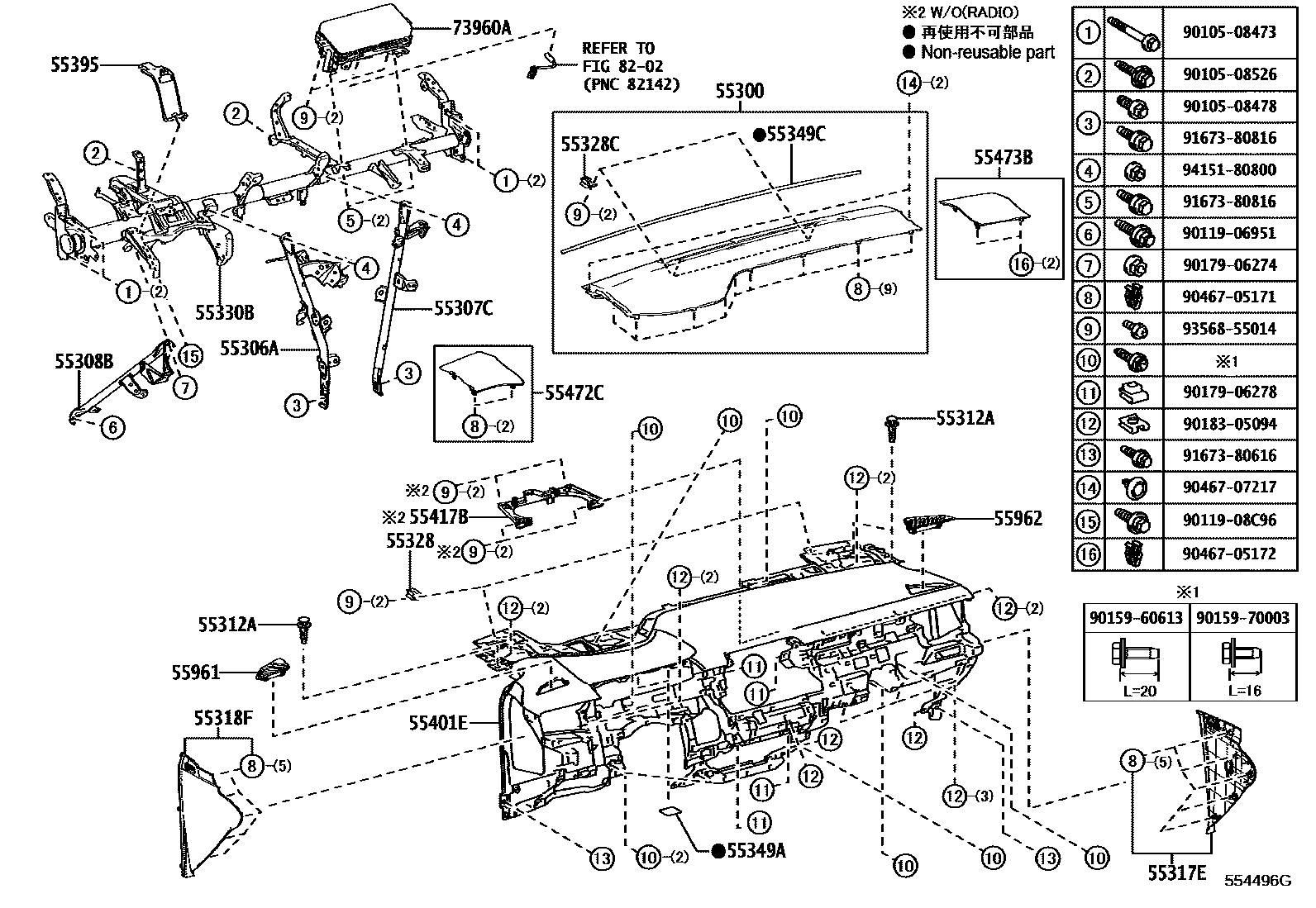

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-02190-C0iMZEA12,ZWE211..E..BZ202201-202309

BLACK,TRIM0#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02750iMZEA12,ZRE210,ZWE211202201-202309

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02590iMZEA12,ZRE210,ZWE211201909-202201

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-02250iMZEA12,ZRE210,ZWE211..CVT202309-202412

55312ACLIP, INSTRUMENT PANEL

main52161-0K040×3iZRE210..6F202309

(L)

main52161-16010×3iZRE210..6F202309

(J)

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-02760-C0iMZEA12,ZWE211..E..BZ202309-202412

BLACK,TRIM0#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-02390-C0iZRE210..6F202309

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iMZEA12,ZRE210,ZWE211202103-202201

main55328-60090×2iMZEA12,ZRE210,ZWE211201909-202103

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-12420×2iMZEA12,ZRE210,ZWE211201909-202102

main55328-12440×2iZRE210..6F202309

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02B40iMZEA12,ZRE210..6F202201-202309

main55330-02B50iMZEA12,ZRE210,ZWE211..CVT201909-202201

55349ACUSHION, INSTRUMENT PANEL

main55349-02120×2iMZEA12,ZRE210,ZWE211201909-202201

55349CCUSHION, INSTRUMENT PANEL

main55349-02310iMZEA12,ZRE210,ZWE211201909-202201

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-02120iMZEA12,ZWE211202412

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-02220-C0supersedes 55401-02640-C1iMZEA12,ZWE211..E..BZ202102-202201

SOFT BLACK,TRIM1#,2#

main55401-02640-C1supersedes 55401-02640-C1iMZEA12..N..GEN;MZEA12..D..(BZ,GEN);ZRE210,ZWE211..(D,N)..GEN201909-202201

SOFT BLACK,TRIM1#,2#

55417BRETAINER, RADIO TUNER FINISH

main55417-02090supersedes 55417-02090iZRE210,ZWE211..GEN;MZEA12..(E,N)..GEN;MZEA12..D..(BZ,GEN)201909-202201

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-02170-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM1#,2#

main55472-02171-C0iMZEA12,ZWE211..E..BZ202311-202412

BLACK,TRIM0#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-02150-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM1#,2#

main55473-02151-C0iMZEA12,ZWE211..E..BZ202401-202412

BLACK,TRIM0#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02330-C0supersedes 55961-02330-C0iMZEA12..D..GEN202201-202301

BLACK,TRIM1#,2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-02250-C0supersedes 55962-02250-C0iMZEA12..D..AGT;MZEA12,ZRE210,ZWE211..(D,N)..GEN201909-202201

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02430iMZEA12,ZRE210,ZWE211201909-202201

8202

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908C96

main90119-08C96

9015960613

main90159-60613

9015970003

main90159-70003

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9046707217

main90467-07217

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

38 parts on this diagram · 4 diagrams in section
