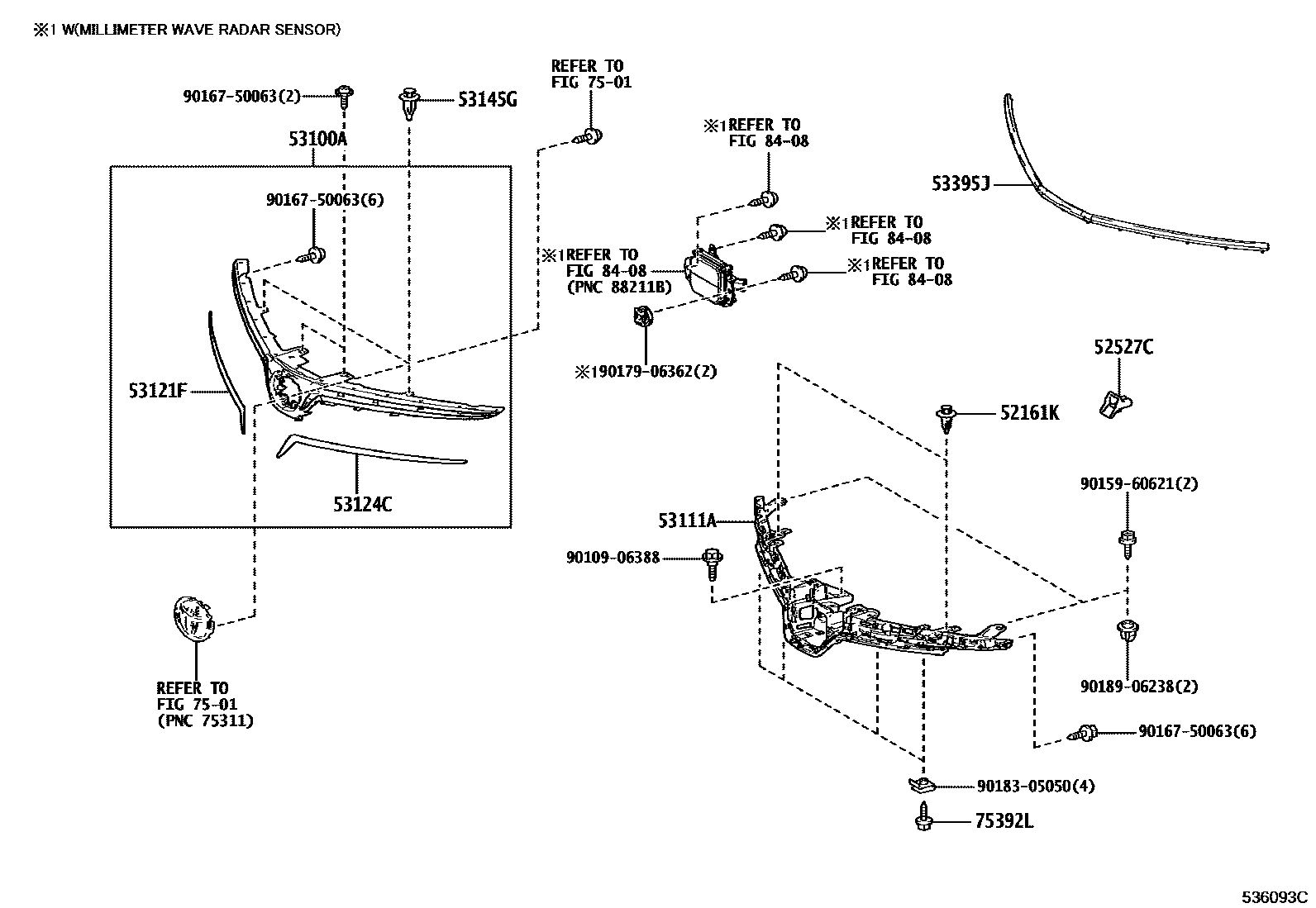

RADIATOR GRILLE

52161KPIECE, FRONT BUMPER

main52161-0K040iMZEA12,ZRE210,ZWE211..CVT202309-202412

(L)

main52161-16010iMZEA12,ZRE210,ZWE211..CVT202309-202412

(J)

sub52161-0K040

main52161-16010iMZEA12,ZRE210,ZWE211201909-202309

sub52161-0K040

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-02060iMZEA12,ZRE210,ZWE211201909-202412

53100AGRILLE ASSY, RADIATOR

main53100-02820iMZEA12,ZRE210,ZWE211201909-202412

main53100-02G90iMZEA12..N202412

CHILE SPEC&GR SPORT

53111AGRILLE, RADIATOR, OUTSIDE

main53111-02890iMZEA12,ZRE210,ZWE211201909-202412

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-02490iMZEA12,ZRE210,ZWE211201909-202412

main53121-02570iMZEA12..N202412

CHILE SPEC&GR SPORT

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-02470iMZEA12,ZRE210,ZWE211201909-202412

main53124-02550iMZEA12..N202412

CHILE SPEC&GR SPORT

53145GCLIP, RADIATOR GRILLE

main90467-05063-C0iMZEA12,ZRE210,ZWE211201909-202412

BLACK

sub90467-05063

53395JSEAL, HOOD TO FRONT END PANEL

main53395-02310iMZEA12,ZRE210,ZWE211201909-202412

7501

75392LRETAINER, OUTSIDE MOULDING

main75392-42030iMZEA12,ZRE210,ZWE211201909-202412

8408

9010906388

main90109-06388

9015960621

main90159-60621

9016750063

main90167-50063

9017906362

main90179-06362

9018305050

main90183-05050

9018906238

main90189-06238

17 parts on this diagram · 1 diagram in section
