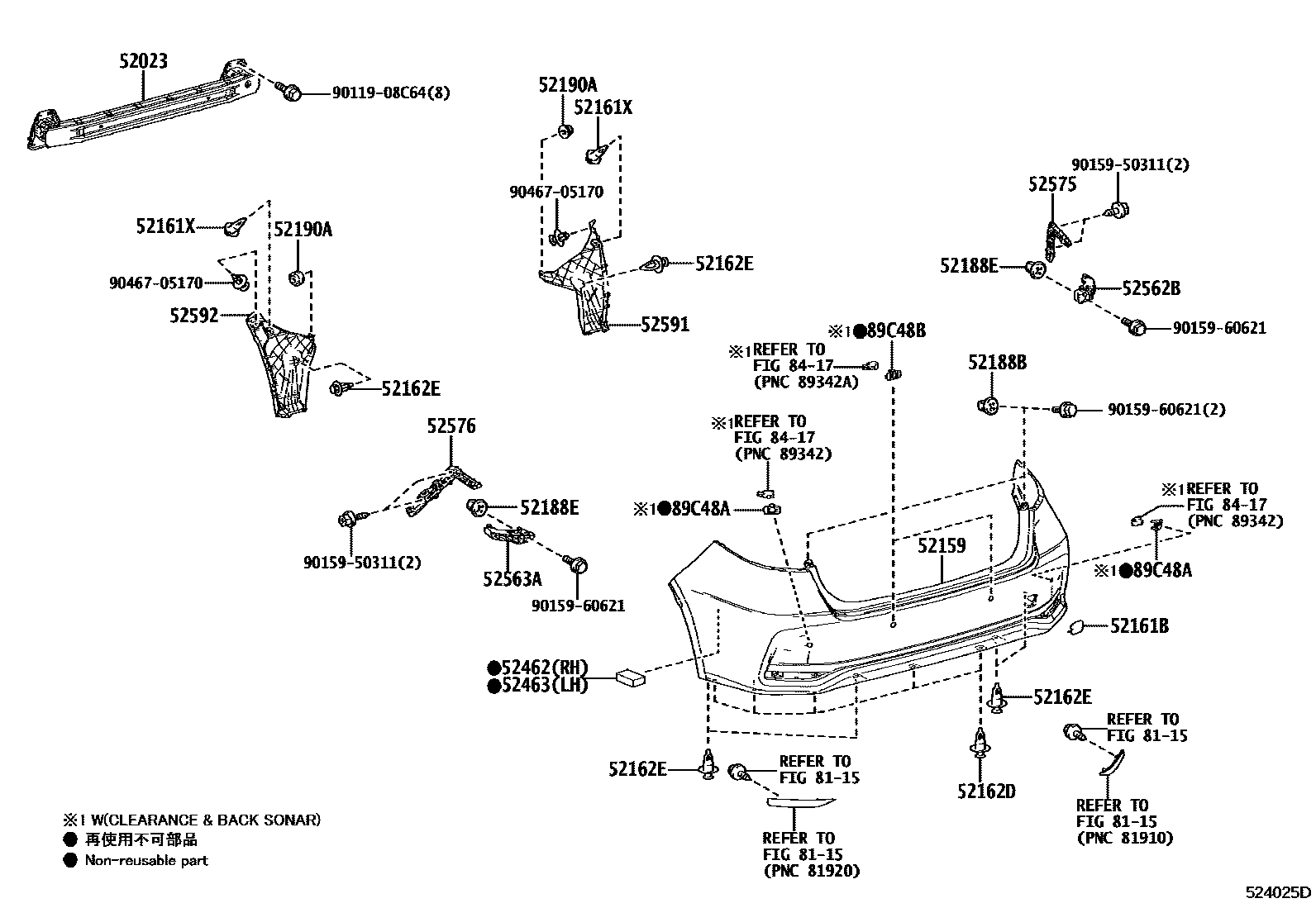

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1GR SPORT

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-02290iMZEA12,ZWE211..AGT202201-202412

GR SPORT

main52023-02290iMZEA12,ZRE210,ZWE211201909-202201

52159COVER, REAR BUMPER

main52159-0Z967iZWE211..N..GEN201909-202412

PAINT REQ.

main52159-0Z967iZRE210;MZEA12..D;ZWE211..N..AGT;ZWE211..D..GEN;MZEA12..N..(AGT,GEN)202201-202412

PAINT REQ.,ECUADOR SPEC

main52159-0Z967iZRE210..CVT;ZWE211..D..GEN;MZEA12..D..(AGT,BZ)202309-202412

PAINT REQ.,URUGUAY SPEC

main52159-0Z967iZRE210..CVT;ZWE211..D..GEN;MZEA12..D..(AGT,BZ)202309-202412

PAINT REQ.,CHILE SPEC

main52159-0Z967iZRE210..CVT;ZWE211..D..GEN;MZEA12..D..(AGT,BZ)202309-202412

PAINT REQ.,COLOMBIA SPEC

main52159-0Z967iZRE210..CVT;ZWE211..D..GEN;MZEA12..D..(AGT,BZ)202309-202412

PAINT REQ.,BOLIVIA SPEC

main52159-0Z968iMZEA12..D..BZ201909-202309

PAINT REQ.,COLOMBIA SPEC

main52159-0Z968iMZEA12..D..BZ202201-202412

PAINT REQ.,UP GRADE PACKAGE

main52159-0Z968iMZEA12..E,N;MZEA12..D..GEN;ZWE211..AGT,BZ;ZWE211..(E,N)..GEN201909-202412

PAINT REQ.

main52159-0Z968iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202201

PAINT REQ.,CHILE SPEC

main52159-0Z968iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202201

PAINT REQ.,BOLIVIA SPEC

main52159-0Z968iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202201

PAINT REQ.,ECUADOR SPEC

main52159-0Z968iMZEA12..CVT..N..AGT201909-202309

PAINT REQ.,URUGUAY SPEC

52161BPIECE, REAR BUMPER

main52161-02902iMZEA12,ZRE210,ZWE211201909-202412

52161XPIECE, REAR BUMPER

main52161-16010iMZEA12,ZRE210,ZWE211¥120201909-202201

sub52161-0K040¥120

52162DPIECE, REAR BUMPER

main52161-0K040iMZEA12,ZRE210,ZWE211..CVT¥120202204-202412

(L)

main52161-16010iMZEA12,ZRE210,ZWE211¥120201909-202201

sub52161-0K040¥120

main52161-16010iMZEA12,ZRE210,ZWE211..CVT¥120202201-202412

(J)

sub52161-0K040¥120

52162EPIECE, REAR BUMPER

main52161-0K040iZRE210..6F¥120202205-202412

(L)

main52161-0K040iMZEA12,ZWE211¥120202412

CHILE SPEC&GR SPORT,(L),TYPE A:REF ILL.

main52161-0K040iMZEA12,ZWE211¥120202412

GR SPORT,(L),TYPE A:REF ILL.

main52161-16010iMZEA12,ZWE211¥120202412

GR SPORT,(J),TYPE A:REF ILL.

sub52161-0K040¥120

main52161-16010iMZEA12,ZRE210,ZWE211¥120201909-202201

sub52161-0K040¥120

main52161-16010iMZEA12..CVT..N..AGT¥120202201-202205

URUGUAY SPEC&GR SPORT

sub52161-0K040¥120

main52161-16010iMZEA12..CVT..N..AGT¥120202201-202205

GR SPORT

sub52161-0K040¥120

main52161-16010iMZEA12,ZRE210,ZWE211¥120202205-202412

(J)

sub52161-0K040¥120

main52161-16010iMZEA12..N¥120202412

CHILE SPEC&GR SPORT,(J),TYPE A:REF ILL.

sub52161-0K040¥120

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040iMZEA12,ZRE210,ZWE211¥80201909-202412

main90189-06228iMZEA12,ZWE211¥70202412

52188ESPACER, REAR BUMPER MOUNTING

main52188-33040iMZEA12,ZRE210,ZWE211¥80201909-202412

main90189-06228iMZEA12,ZWE211¥70202412

52190ACLIP

main90467-06206-C0iMZEA12,ZWE211201909-202412

BLACK

52462PAD, REAR BUMPER, RH

main52462-02330iMZEA12,ZRE210,ZWE211202201-202308

NO PAINT REQ.

main52462-02330iMZEA12,ZRE210,ZWE211201909-202201

52463PAD, REAR BUMPER, LH

main52462-02330iMZEA12,ZRE210,ZWE211202201-202308

NO PAINT REQ.

main52462-02330iMZEA12,ZRE210,ZWE211201909-202201

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02360iMZEA12,ZRE210,ZWE211201909-202412

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02330iZRE210..6F201909-202412

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02240iMZEA12,ZRE210,ZWE211201909-202412

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02240iMZEA12,ZRE210,ZWE211201909-202412

52591SEAL, REAR BUMPER SIDE, RH

main52591-02440iMZEA12,ZWE211201909-202412

52592SEAL, REAR BUMPER SIDE, LH

main52592-02410iMZEA12,ZWE211201909-202412

8115

8417

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-02190iMZEA12..D..BZ202201-202412

GR SPORT

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

URUGUAY SPEC

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

CHILE SPEC

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

COLOMBIA SPEC

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

BOLIVIA SPEC

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

ECUADOR SPEC

main89348-02190iZWE211..BZ;ZWE211..E..AGT;MZEA12..(E,N)..BZ;ZWE211..(E,N)..GEN;MZEA12..E..(AGT,GEN)202201-202412

UP GRADE PACKAGE

main89348-02190iMZEA12..E,N;MZEA12..D..GEN;ZWE211..AGT,BZ;ZWE211..(E,N)..GEN202309-202412

CHILE SPEC&GR SPORT

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

URUGUAY SPEC

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

CHILE SPEC

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

COLOMBIA SPEC

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

BOLIVIA SPEC

main89348-02190iZWE211..E..AGT;MZEA12..E..(AGT,GEN)201909-202412

ECUADOR SPEC

main89348-02190iZWE211..BZ;ZWE211..E..AGT;MZEA12..(E,N)..BZ;ZWE211..(E,N)..GEN;MZEA12..E..(AGT,GEN)202201-202412

GR SPORT

main89348-02190iZWE211..BZ;ZWE211..E..AGT;MZEA12..(E,N)..BZ;ZWE211..(E,N)..GEN;MZEA12..E..(AGT,GEN)202201-202412

UP GRADE PACKAGE

main89348-02190iMZEA12..E,N;MZEA12..D..GEN;ZWE211..AGT,BZ;ZWE211..(E,N)..GEN202309-202412

CHILE SPEC&GR SPORT

9011908C64

main90119-08C64¥90

9015950311

main90159-50311¥70

9015960621

main90159-60621¥60

9046705170

main90467-05170¥80

25 parts on this diagram · 3 diagrams in section
