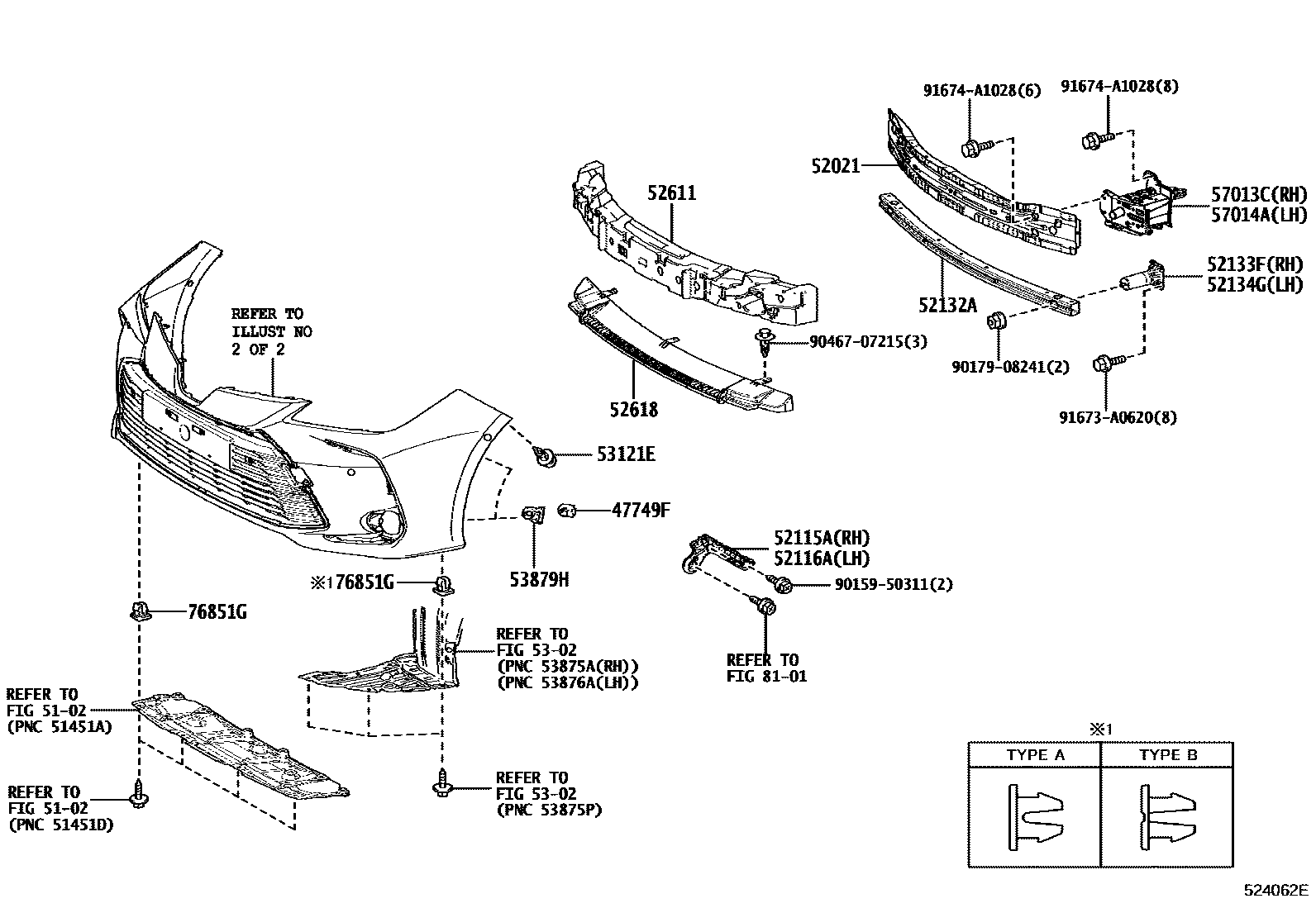

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1GR SPORT 0004 1GR SPORT

47749FCLIP, PIN HOLD

main47749-33030iZRE210..6F¥200201909-202412

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02260iMZEA12,ZRE210,ZWE211201909-202412

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02530iMZEA12,ZWE211201909-202412

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02520iMZEA12,ZWE211201909-202412

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-02080iMZEA12,ZRE210,ZWE211201909-202412

52133FBRACKET, FRONT BUMPER, RH

main52133-02140iMZEA12,ZRE210,ZWE211201909-202412

52134GBRACKET, FRONT BUMPER, LH

main52133-02140iMZEA12,ZRE210,ZWE211201909-202412

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02610iMZEA12,ZRE210,ZWE211201909-202412

52618ABSORBER, FRONT BUMPER, LOWER

main52618-02240iMZEA12,ZRE210,ZWE211..CVT201909-202412

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05170iMZEA12,ZRE210,ZWE211¥80201909-202412

53879HRETAINER, FRONT FENDER LINER

main53879-33030iMZEA12,ZRE210,ZWE211¥270201909-202412

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-02240iMZEA12,ZRE210,ZWE211201909-202412

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-02240iMZEA12,ZRE210,ZWE211..CVT201909-202412

76851GGROMMET, SCREW, NO.1

main90189-06237iZWE211..D..BZ¥100202412

GR SPORT,TYPE B:REFER ILLUST.

main90189-06237iMZEA12..N¥100202412

CHILE SPEC&GR SPORT,TYPE B:REFER ILLUST.

main90189-06237iMZEA12..N..AGT¥100202412

PARAGUAY SPEC,TYPE B:REFER ILLUST.

main90189-06237iMZEA12..N..AGT¥100202412

URUGUAY SPEC&GR SPORT,TYPE B:REFER ILLUST.

main90189-06237iMZEA12,ZRE210,ZWE211¥100201909-202201

main90189-06237iMZEA12,ZRE210,ZWE211¥100202201-202309

URUGUAY SPEC&GR SPORT

main90189-06237iMZEA12,ZRE210,ZWE211¥100202201-202309

GR SPORT

8101

9015950311

main90159-50311¥70

9017908241

main90179-08241¥80

9046707215

main90467-07215¥80

91673A0620

main91673-A0620¥60

91674A1028

main91674-A1028¥120

22 parts on this diagram · 4 diagrams in section
