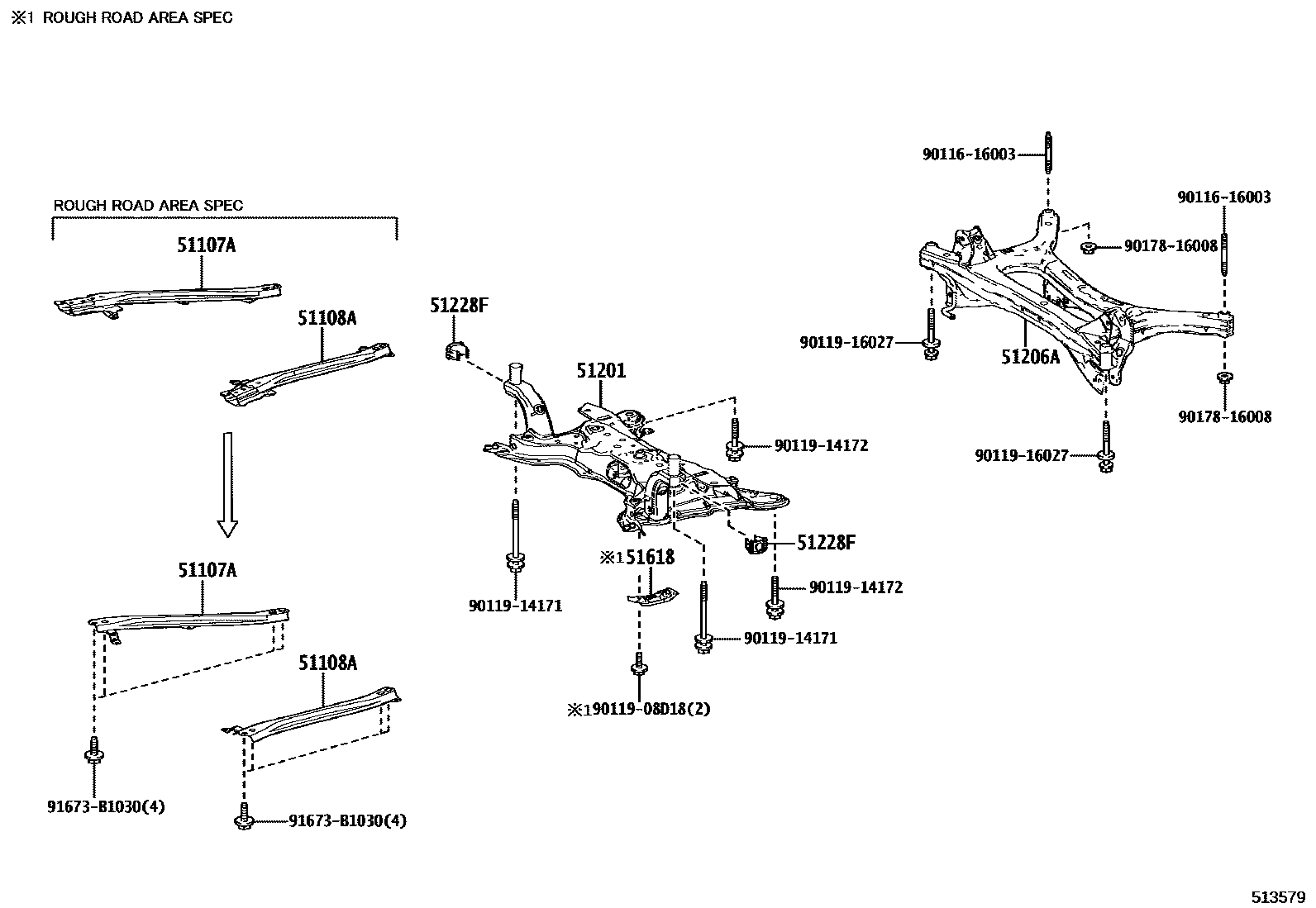

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-02150iMZEA12..(D,N)..GEN201909-202309

COLOMBIA SPEC

main51107-02150iMZEA12..CVT..GEN201909-202309

BOLIVIA SPEC

main51107-02150iMZEA12..CVT..GEN201909-202201

ECUADOR SPEC

main51107-02150iZWE211;MZEA12,ZRE210..BZ,GEN202309

main51107-02160iMZEA12,ZRE210..AGT,GEN201909-202201

main51107-02160iMZEA12..(D,N)..GEN202201-202412

CHILE SPEC

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-02150iMZEA12..D..GEN;MZEA12..CVT..GEN201909-202309

COLOMBIA SPEC

main51108-02150iZWE211;MZEA12..BZ201909-202309

BOLIVIA SPEC

main51108-02150iZWE211;MZEA12..BZ201909-202201

ECUADOR SPEC

main51108-02150iZWE211;MZEA12,ZRE210..CVT..(BZ,GEN)202309-202412

main51108-02160iMZEA12..N..AGT;MZEA12..6F..D..AGT;MZEA12..CVT..(D,E)..(AGT,GEN)202201-202412

CHILE SPEC

main51108-02160iMZEA12,ZRE210..AGT,GEN201909-202201

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02281iMZEA12,ZRE210,ZWE211..CVT201909-202412

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-02140iMZEA12,ZWE211201909-202412

51228FPLATE, FRONT SUSPENSION MEMBER DUMPER

main51228-47010iMZEA12,ZRE210,ZWE211201909-202412

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-47010iZWE211;MZEA12..BZ201909-202309

BOLIVIA SPEC

main51618-47010iZWE211;MZEA12..BZ201909-202201

ECUADOR SPEC

main51618-47010iMZEA12..CVT..GEN201909-202309

COLOMBIA SPEC

main51618-47010iZRE210202201-202412

CHILE SPEC

main51618-47010iZRE210..6F202309

9011616003

main90116-16003

9011908D18

main90119-08D18

9011914171

main90119-14171

9011914172

main90119-14172

9011916027

main90119-16027

9017816008

main90178-16008

91673B1030

main91673-B1030

13 parts on this diagram · 2 diagrams in section
