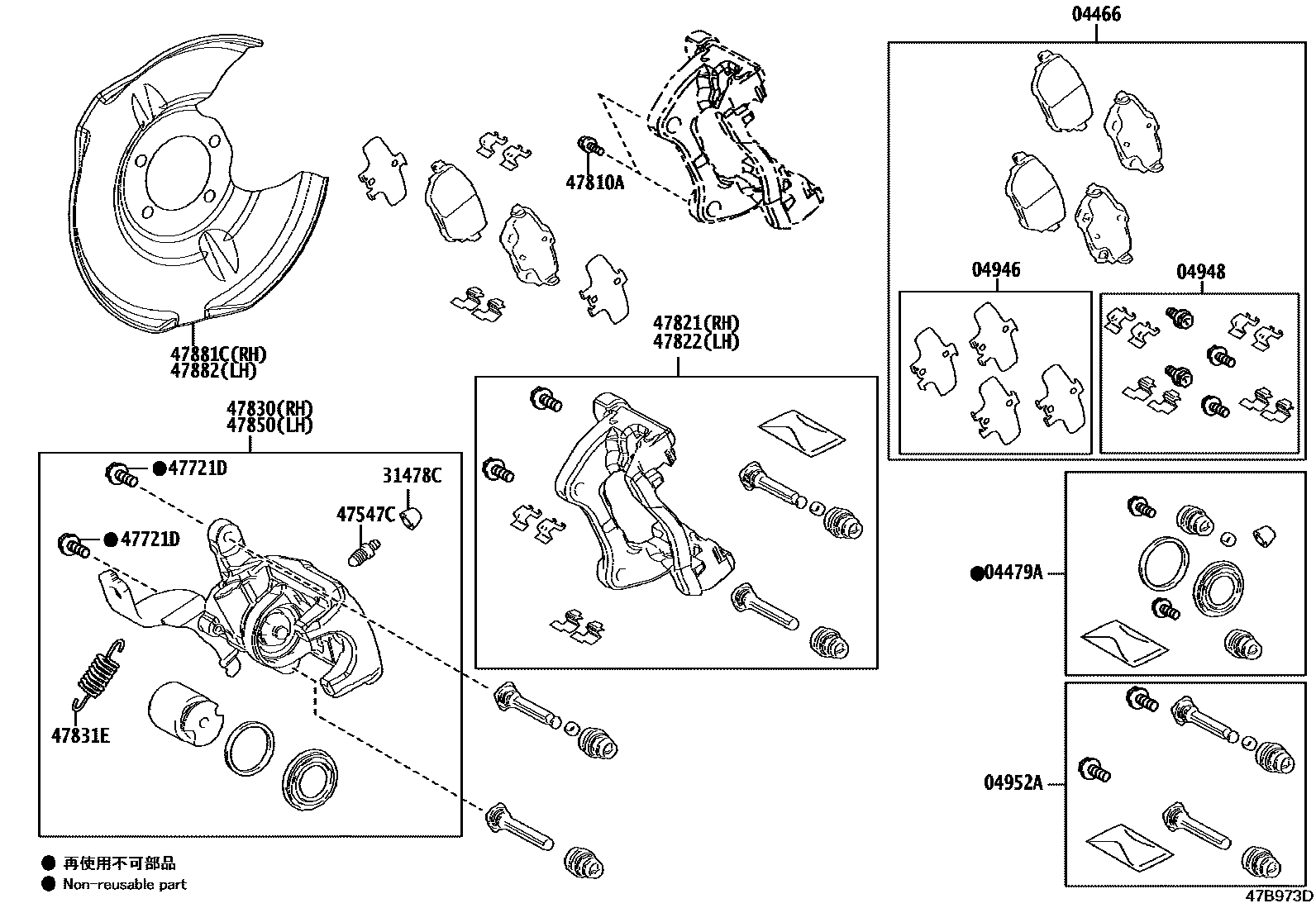

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02450iMZEA12,ZRE210,ZWE211201909-202201

MARK NBK D6360

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02480×2iMZEA12,ZRE210,ZWE211201909-202201

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02170iMZEA12,ZRE210,ZWE211201909-202201

04948FITTING KIT, DISC BRAKE, REAR

main04948-02190iMZEA12,ZRE210,ZWE211201909-202201

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02420×2iMZEA12,ZRE210,ZWE211201909-202201

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39001×2iMZEA12,ZRE210,ZWE211201909-202201

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39000×2iMZEA12,ZRE210,ZWE211201909-202201

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main47715-02470×4iMZEA12,ZRE210,ZWE211201909-202201

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iMZEA12,ZRE210,ZWE211201909-202201

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09140iMZEA12,ZRE210,ZWE211201909-202201

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09140iMZEA12,ZRE210,ZWE211201909-202201

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02410iMZEA12,ZRE210,ZWE211201909-202201

47831ESPRING(FOR REAR DISC BRAKE)

main90069-51023×2iMZEA12,ZRE210,ZWE211201909-202201

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02410iMZEA12,ZRE210,ZWE211201909-202201

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-02270iMZEA12,ZRE210,ZWE211201909-202201

47882COVER, DISC BRAKE DUST, REAR LH

main47882-02270iMZEA12,ZRE210,ZWE211201909-202201

16 parts on this diagram · 1 diagram in section
