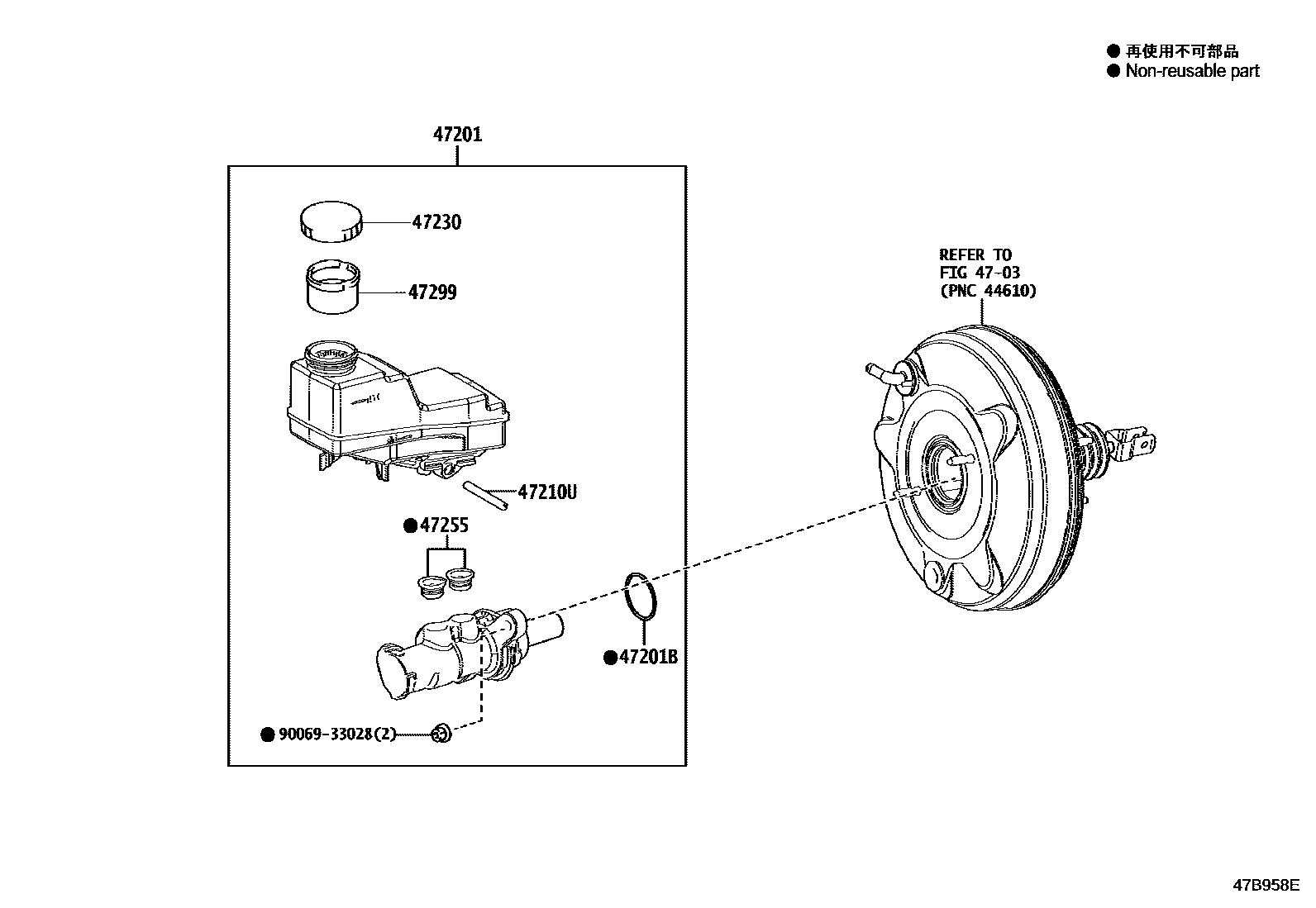

BRAKE MASTER CYLINDER

0001 1TYPE A 0002 1TYPE B 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09A10iMZEA12,ZRE210201909-202201

sub47201-09B70

main47201-09A10iMZEA12,ZRE210202201-202205

TYPE A:REFER ILLUST.

sub47201-09B70

main47201-09B70iMZEA12,ZRE210202205-202412

TYPE B:REFER ILLUST.

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iMZEA12,ZRE210201909-202201

main90015-AH001iMZEA12,ZRE210202201-202309

TYPE A:REFER ILLUST.

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iMZEA12,ZRE210202201-202309

TYPE A:REFER ILLUST.

main90015-AE401iMZEA12,ZRE210201909-202201

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D160iMZEA12202205-202412

TYPE B:REFER ILLUST.

main47230-0D160iMZEA12,ZRE210201909-202201

main47230-0D160iMZEA12,ZRE210202201-202309

TYPE A:REFER ILLUST.

main47230-33330iZWE211202002-202006

sub47230-47090

main47230-47090iZWE211201909-202412

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iMZEA12,ZRE210..CVT202205-202412

TYPE B:REFER ILLUST.

main47255-09050iMZEA12,ZRE210201909-202201

main47255-09050iMZEA12,ZRE210202201-202205

TYPE A:REFER ILLUST.

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iMZEA12,ZRE210202205-202309

TYPE A:REFER ILLUST.,TYPE B:REFER ILLUST.

main47299-02160iMZEA12,ZRE210..CVT202309-202412

TYPE B:REFER ILLUST.

9006933028

main90069-33028

8 parts on this diagram · 3 diagrams in section
