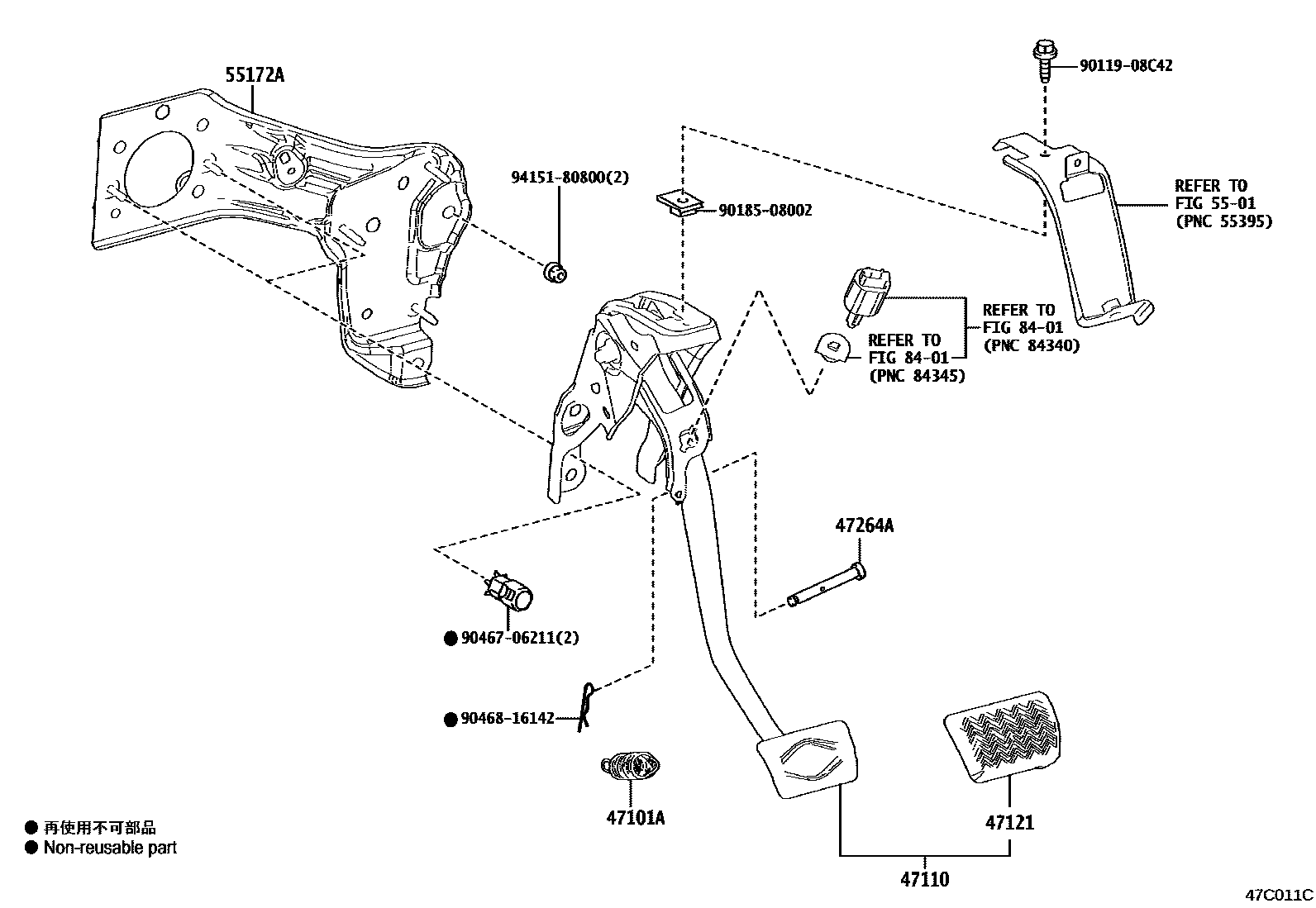

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15009iZWE211201909-202412

main90507-15010iMZEA12201909-202412

47110SUPPORT ASSY, BRAKE PEDAL

main47110-02570iMZEA12,ZRE210..CVT201909-202412

main47110-02840iMZEA12,ZRE210..6F201909-202309

main47110-47060iZWE211201909-202210

main47110-76170iZWE211202211-202412

47121PAD, BRAKE PEDAL

main47121-02160iMZEA12,ZRE210..CVT201909-202412

main47121-02170iMZEA12,ZRE210..6F201909-202309

main47121-16020iZWE211202211-202412

main47121-47010iZWE211201909-202211

47264APIN(FOR PUSH ROD)

main90249-08221iMZEA12,ZRE210201909-202412

main90249-08309iZWE211201909-202412

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-02190iMZEA12,ZRE210,ZWE211201909-202412

8401

9011908C42

main90119-08C42

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
