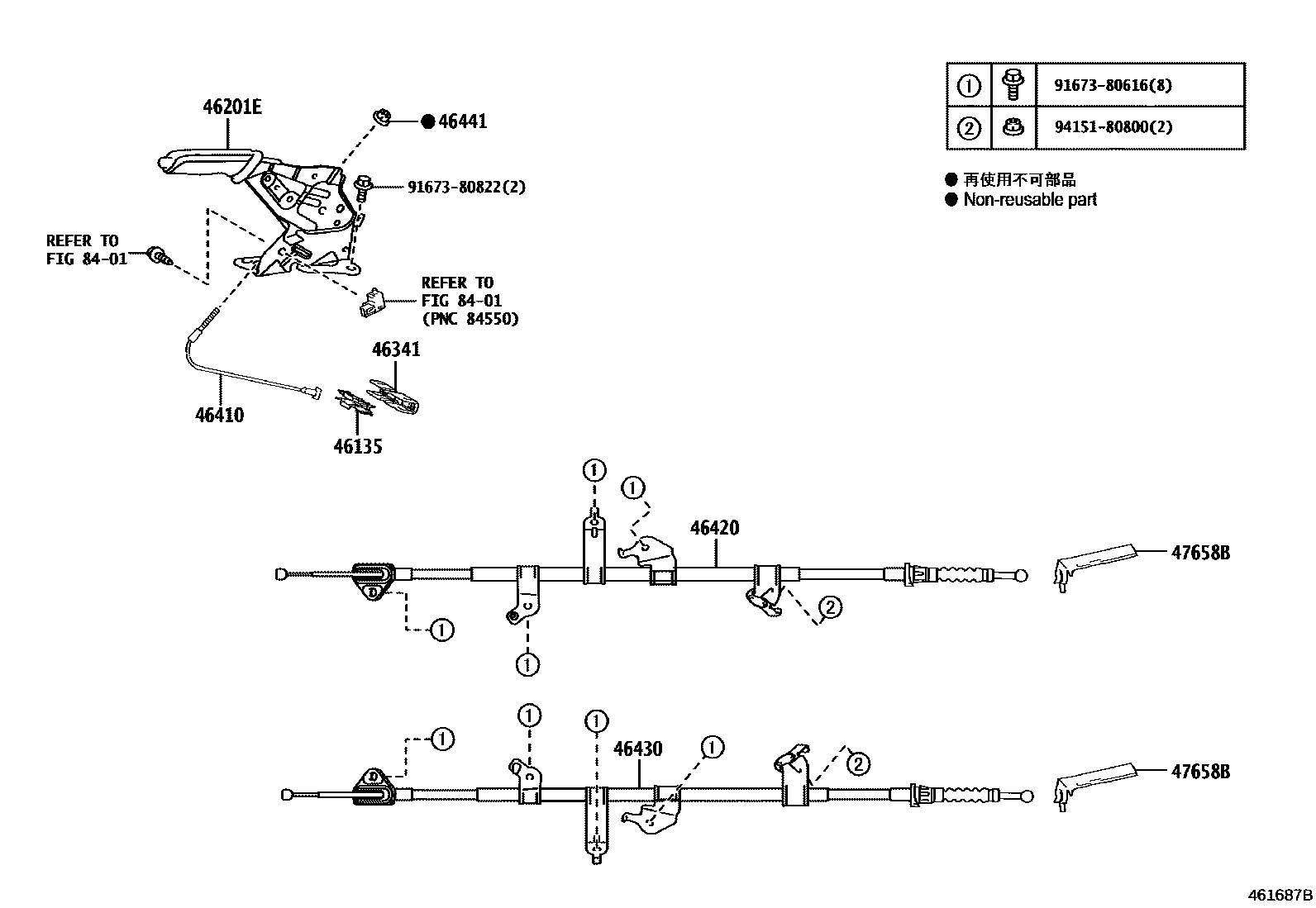

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iMZEA12,ZRE210,ZWE211201909-202412

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12560-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main46201-12560-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main46201-12560-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main46201-12560-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main46201-12560-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

46341EQUALIZER, PARKING BRAKE

main46341-12040iMZEA12,ZRE210,ZWE211201909-202412

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12340iMZEA12,ZRE210,ZWE211201909-202412

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02440iMZEA12,ZRE210,ZWE211201909-202412

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02440iMZEA12,ZRE210,ZWE211201909-202412

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iMZEA12,ZRE210,ZWE211201909-202412

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-47010iMZEA12,ZRE210,ZWE211201909-202412

8401

9167380616

main91673-80616

9167380822

main91673-80822

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
