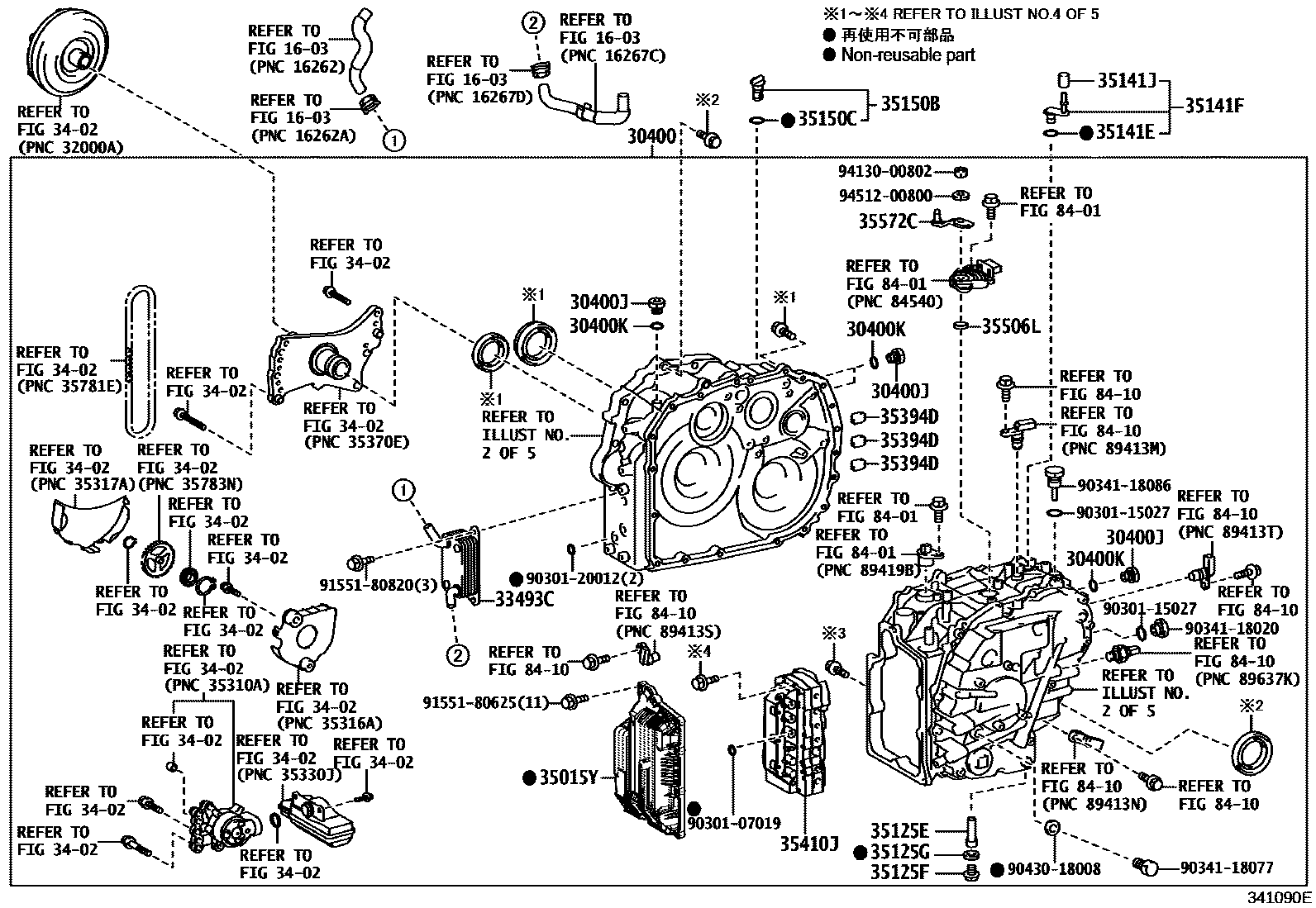

TRANSAXLE ASSY(CVT)

0001 1K120 0002 1K120 0003 1K120 0004 1K120 0005 1K120 0006 1K313 0007 1K313 0008 1K313 0009 1K313 0010 1K121 0011 1K121 0012 1K121 0013 1K121 0014 1K121 0015 1K121

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-12530iMZEA12202105-202412

K120

main30400-12540iMZEA12202412

K121,TMH:REFER TO ILLUST.

main30400-12590iMZEA12202412

K121,AISIN:REFER TO ILL.

main30400-12730iZRE210..CVT201909-202412

K313

main30400-12760iMZEA12..CVT201909-202105

K120

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMZEA12201909-202412

main90341-08001iMZEA12202412

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMZEA12..CVT201909-202412

main90301-06196iMZEA12202412

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

33493CCOOLER, TRANSMISSION OIL

main33493-12090iMZEA12201909-202412

main33493-52040iZRE210..CVT201909-202412

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12020iMZEA12..CVT201909-202205

main35015-33010iMZEA12..CVT202206-202412

main35015-42020iMZEA12202412

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

35125ETUBE, OVERFLOW(CVT)

main35125-12440iZRE210..CVT201909-202412

main35125-12500iMZEA12..CVT201909-202412

main35125-12500iMZEA12202412

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZRE210..CVT201909-202412

main90341-18016iMZEA12202412

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

main90341-18016iMZEA12..CVT201909-202412

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZRE210..CVT201909-202412

main90430-18008iMZEA12..CVT201909-202412

main90430-18008iMZEA12202412

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iZRE210..CVT201909-202412

main90301-09173iMZEA12201909-202412

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iZRE210..CVT201909-202412

main90930-03240iMZEA12..CVT201909-202412

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03191iZRE210..CVT201909-202412

main90930-03243iMZEA12..CVT201909-202412

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iMZEA12..CVT201909-202201

TYPE A:REFER ILLUST.

main35150-44010iMZEA12..CVT202201-202412

main35150-48010iMZEA12..CVT201909-202201

TYPE B:REFER ILLUST.

main35150-48010iZRE210..CVT202201-202412

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMZEA12,ZRE210..CVT201909-202412

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011iZRE210..CVT201909-202101

main35394-48010iMZEA12202412

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

main35394-48010iMZEA12,ZRE210..CVT201909-202412

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12871iZRE210..CVT201909-202412

main35410-12A30iMZEA12..CVT201909-202006

sub35410-K0010

main35410-12A80iMZEA12202412

AISIN:REFER TO ILL.

main35410-42080iMZEA12202412

TMH:REFER TO ILLUST.

main35410-52290iMZEA12202006-202412

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMZEA12,ZRE210..CVT201909-202412

main90311-12002iMZEA12202412

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iZRE210..CVT201909-202412

main35572-12190iMZEA12202412

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

main35572-12190iMZEA12..CVT201909-202412

8401

8410

9030107019

main90301-07019

9030115027

main90301-15027

9030120012

main90301-20012

9034118020

main90341-18020

9034118077

main90341-18077

9034118086

main90341-18086

9043018008

main90430-18008

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800
