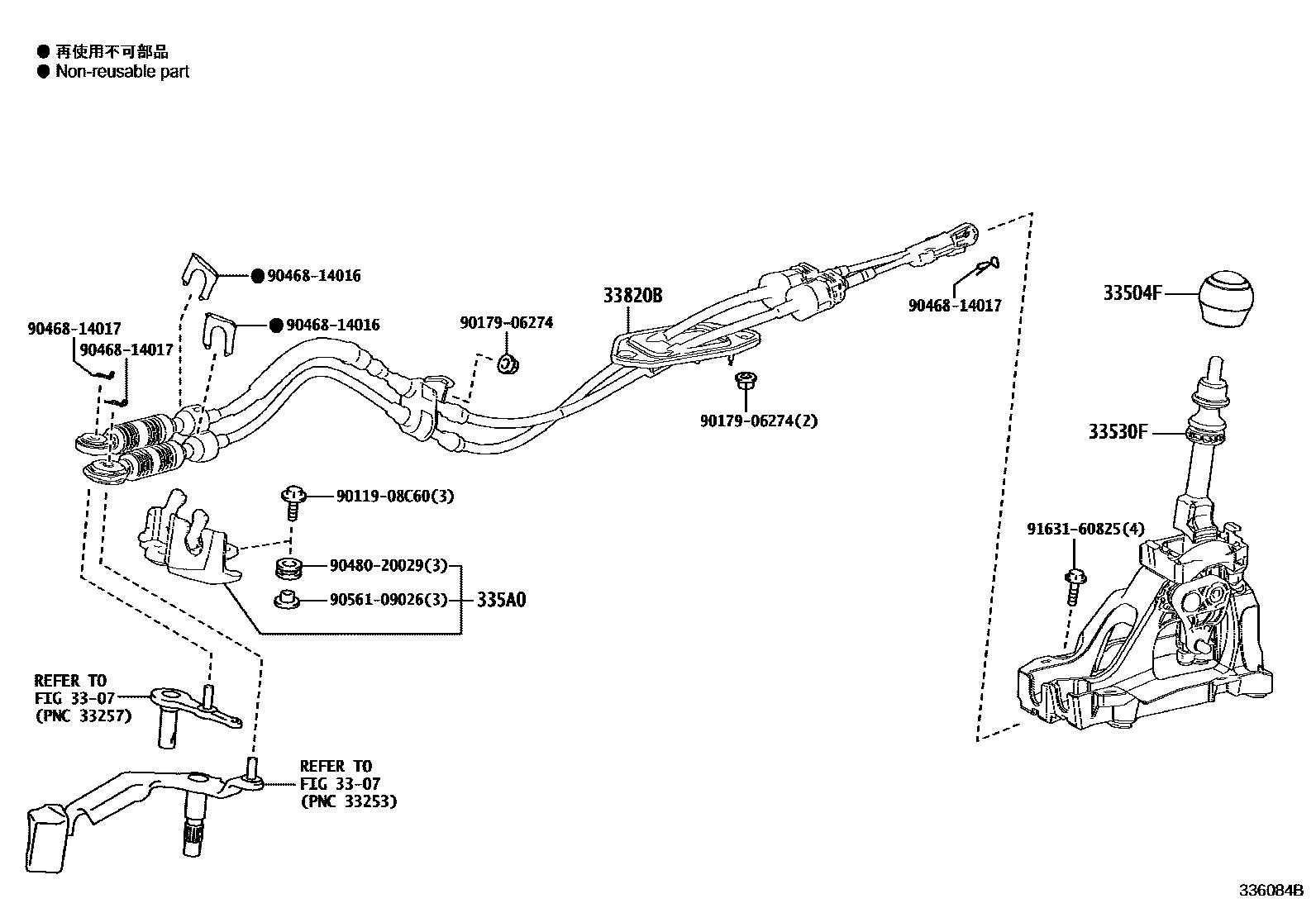

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12750-C0supersedes 33504-12750-C0iMZEA12,ZRE210..6F..N..GEN202201-202309

BLACK,TRIM2#

main33504-12760-C0iMZEA12..6F..N..GEN202201-202309

BLACK,TRIM2#

main33504-12800-C0supersedes 33504-12800-C0iZWE211..E..AGT;ZWE211..(E,N)..GEN;MZEA12..E..(AGT,GEN);ZWE211..(D,N)..(AGT,BZ);MZEA12,ZRE210..CVT..N..(BZ,GEN)202201-202309

BLACK,TRIM2#

main33504-33170-C0iMZEA12..N..GEN202309-202412

BLACK,TRIM2#

main33504-10080-C1iMZEA12..N202412

GR SPORT,BLACK,TRIM2#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12C50iMZEA12,ZRE210..6F201909-202201

335A0BRACKET ASSY, CONTROL CABLE

main335A0-12040iMZEA12..6F201909-202201

main335A0-20010iZRE210..6F201909-202201

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02B60iMZEA12..6F201909-202201

main33820-02B70iZRE210..6F201909-202201

main33820-02B80iMZEA12..CVT202201-202309

main33820-02B90iZRE210..CVT202201-202309

main33820-02C00iZWE211202201-202309

9011908C60

main90119-08C60

9017906274

main90179-06274

9046814016

main90468-14016

9046814017

main90468-14017

9048020029

main90480-20029

9056109026

main90561-09026

9163160825

main91631-60825

12 parts on this diagram · 5 diagrams in section
