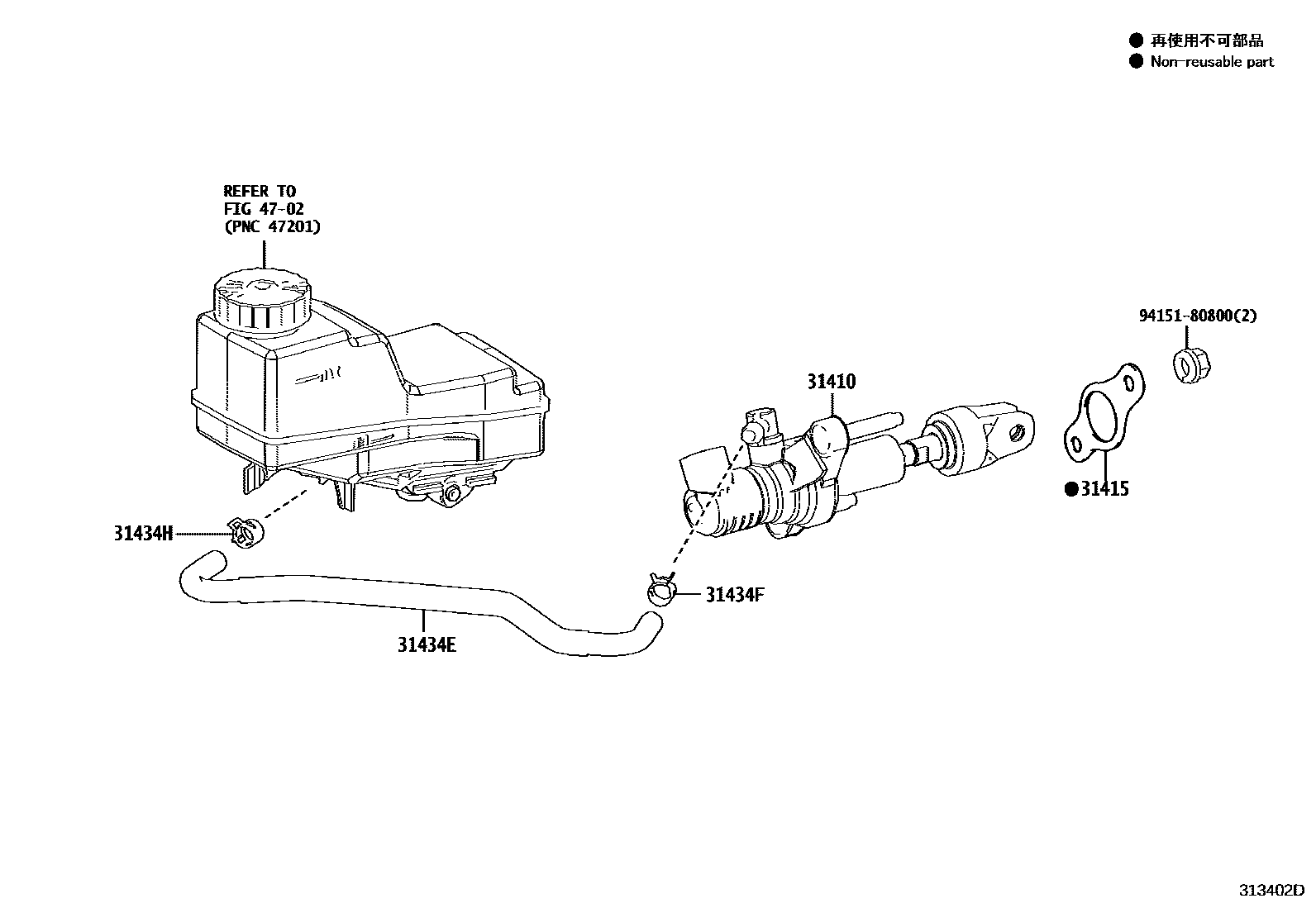

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12070iZRE210..6F201909-202309

main31420-12090iMZEA12..6F201909-202309

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iZRE210..6F201909-202309

31434EHOSE, CLUTCH RESERVOIR, NO.1

main31434-02120iMZEA12,ZRE210..6F201909-202309

31434FCLIP(FOR CLUTCH RESERVOIR HOSE NO.1)

main96138-41501iMZEA12,ZRE210..6F201909-202309

31434HCLIP(FOR CLUTCH RESERVOIR HOSE NO.2)

main96137-41501iMZEA12,ZRE210..6F201909-202309

4702

9415180800

main94151-80800

7 parts on this diagram · 1 diagram in section
